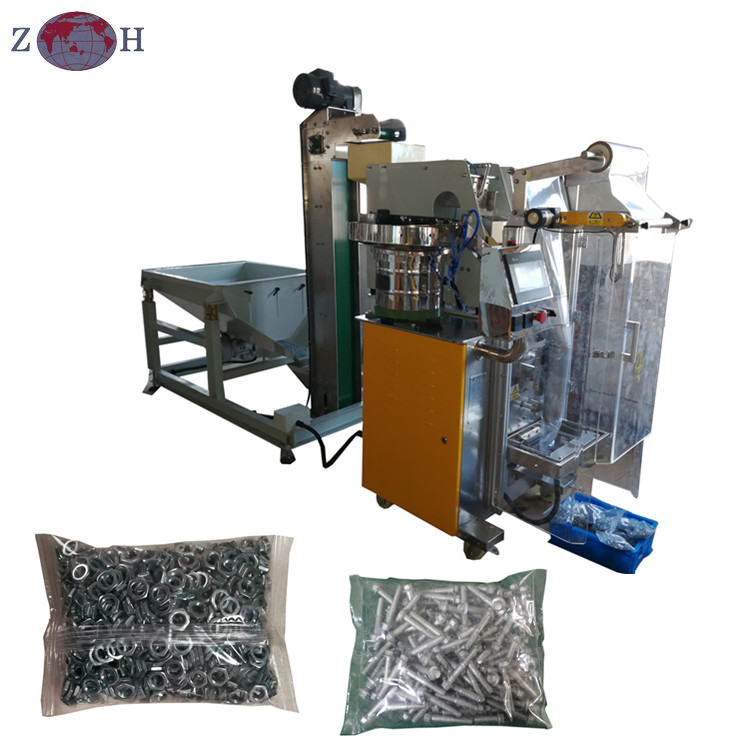

Automatic Weighing and Counting Packaging Machine
This automatic packaging machine is designed for high-speed and accurate packaging of small parts, using both weighing and counting functions. It features a vibratory feeder system, a PLC control system, and a heat sealing mechanism.
Technical Specifications
Overview
High-Efficiency Fastener Packaging
The Automatic Weighing and Counting Packaging Machine is engineered for the precise and rapid packaging of small hardware components such as nails. Featuring an automated bagging system, it streamlines carton packaging workflows with a capacity of 3-8 cartons per minute. This robust solution integrates advanced sensing and control technologies to ensure consistent output quality for industrial applications.
Performance Metrics
Key Performance Indicators
8 cartons/min
Max Output
5 kg/carton
Max Capacity
4 kW
Total Power
Technical Specifications
Technical Data
| Parameter | Value |
|---|---|
| Machine Code | FY-B02 |
| Packing Material | Carton |
| Electrical Supply | AC220V, 50Hz |
| Air Pressure | 0.6-0.8 MPa |
| Air Flow | 0.3 m3/min |
| Dimensions | 6000 x 1500 x 3000mm |
Configuration
Component Configuration
| Component | Origin/Type |
|---|---|
| PLC | Taiwan |
| Touch Screen | Taiwan |
| Temperature-controlled Meter | Chinese |
| Fiber Optic Sensor | OPTEX |
| Cylinder/Magnetic Valve/Triplet | AirTAC/SNS |
| Intermediate Relay | Omron, Japan |
| Solid-state Relay | Schneider |
| Emergency/Button Switch | Schneider, French |
| Proximity Switch | Omron, Japan |
Compatibility
- Compatible Products
- NailsFastenersSmall HardwareComponents
