Technical Specifications
Overview
Intelligent Flow Control

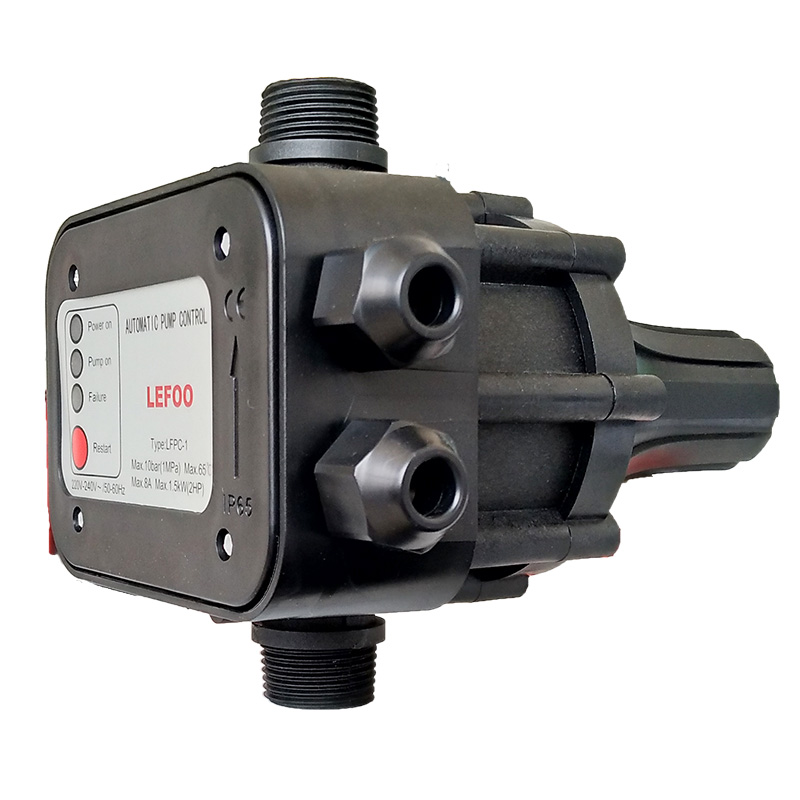

This automatic water pump controller is an intelligent electronic switch designed to optimize pump operation based on real-time flow and pressure detection. It provides a reliable solution for maintaining consistent water pressure in residential, commercial, and industrial pumping systems. With its integrated safety features and automatic functionality, the device simplifies system management while protecting the pump from operational failures.
Technical Specifications
IP Rating
IP65
- Voltage Range
- 230 V
- Frequency
- 50-60Hz
- Maximum Pressure
- 10 bar
- Maximum Temperature
- 65 °C
- Maximum Current
- 8 A
- Maximum Power
- 1.5 kW
Features
Status Indicators
- Power On
- Pump On
- Failure Status
- Control Features
- Automatic Flow DetectionManual Restart ButtonPressure Control
Logistics
- Package Dimensions
- 20 x 20 x 20 cm
- Gross Weight
- 0.6 kg
