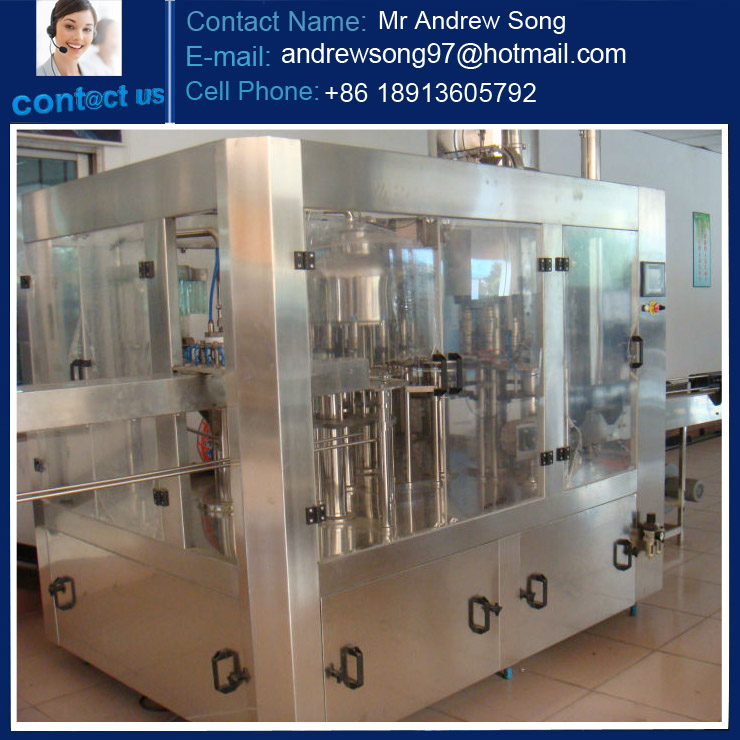

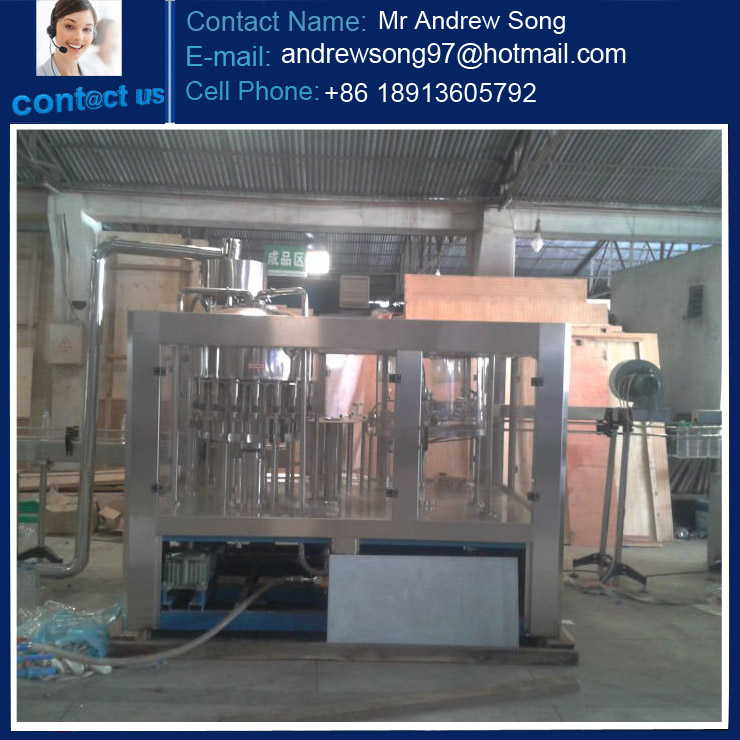

Automatic Water Bottling Machine
This machine is designed for both mineral and pure water filling, integrating rinsing, filling, and capping into a single unit. It ensures efficient and hygienic bottling.
Technical Specifications
Overview
Automatic Monobloc Solution
This automatic water bottling machine integrates rinsing, filling, and capping into a single, efficient monobloc system. Designed for pure and mineral water treatment plants, it features PLC-controlled operation with a touch screen interface for precise monitoring. The system ensures high hygiene standards with a spring-type rinsing clamp that cleans both the inside and outside of bottles, while the magnetic torque cap screwer provides reliable sealing.
Operational Features
Process Capabilities
- Automatic robotic arm bottle pick-up
- Three-stage rinsing with clean water
- Neck-transfer filling station
- Vibrator-fed cap release
- Screw capping heads
- Key Automation Features
- PLC ControlTouch Screen InterfaceNo-Bottle-No-Wash SystemNo-Bottle-No-Fill SystemFixed Liquid Level Pressure Filling
Technical Specifications
Model Capacity Comparison
| Model | Capacity (b/h) |
|---|---|
| CGF16-12-6 | 2000-4000 |
| CGF18-18-6 | 4000-6000 |
| CGF24-24-8 | 8000-10000 |
Baseline Production Capacity
4,000 b/h
Max Capacity (500ml)
