Technical Specifications
Overview
High-Efficiency Bottling Solution

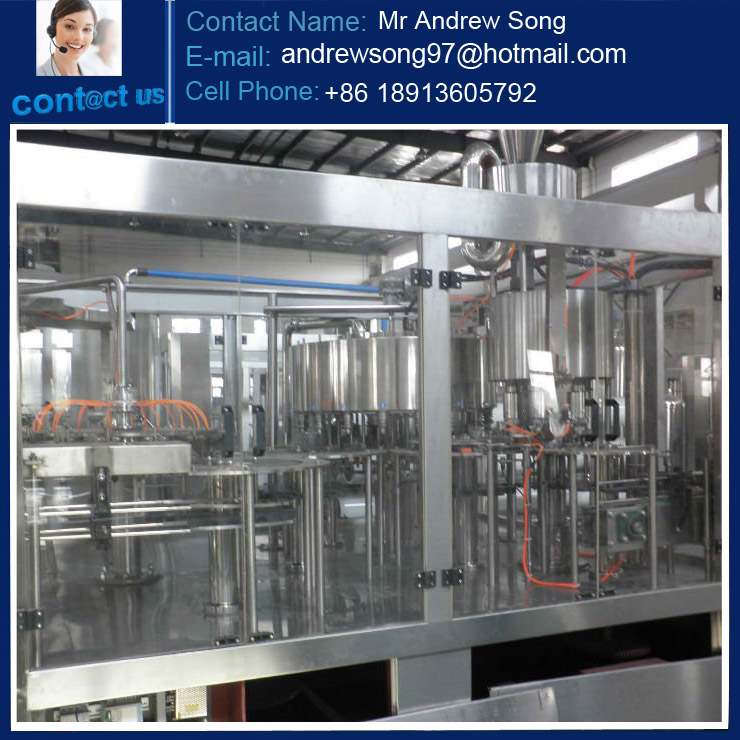

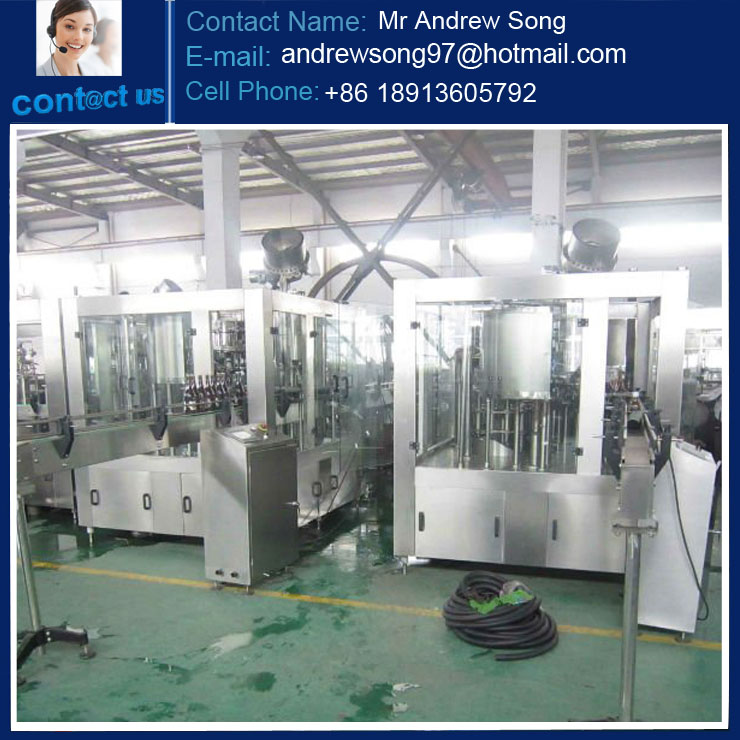

The CGF series automatic water bottle filling machine is designed for the precise filling of mineral or purified water into PET and plastic bottles. Utilizing gravity or micro-pressure filling technology, this system ensures faster, more stable, and highly efficient production output. The machine is fully automated, featuring advanced PLC control and inverter integration for reliable performance and easy operation.
Key Features
Compatible Materials
PET BottlePlastic BottleGlass Bottle (with conveyor adjustment)
- Automation & Control
- PLC ControlledAutomatic ProcessPhotoelectric SensingInverter Integrated
Technical Specifications
Bottle Dimensions
55 mm
Min Diameter
110 mm
Max Diameter
150 mm
Min Height
310 mm
Max Height
Model Capacity Comparison
| Model | Capacity (500ml) | Washing/Filling/Capping Heads | Motor Power |
|---|---|---|---|
| CGF14-12-4 | 4000 BPH | 14/12/4 | 2.2 kW |
| CGF16-16-5 | 6000 BPH | 16/16/5 | 2.5 kW |
| CGF18-18-6 | 8000 BPH | 18/18/6 | 3 kW |
| CGF24-24-8 | 12000 BPH | 24/24/8 | 3 kW |
| CGF32-32-10 | 15000 BPH | 32/32/10 | 5.5 kW |
Machine Weight Range
- 2500 kg (CGF14-12-4)
- 3000 kg (CGF16-16-5)
- 4000 kg (CGF18-18-6)
- 4500 kg (CGF24-24-8)
- 6000 kg (CGF32-32-10)
