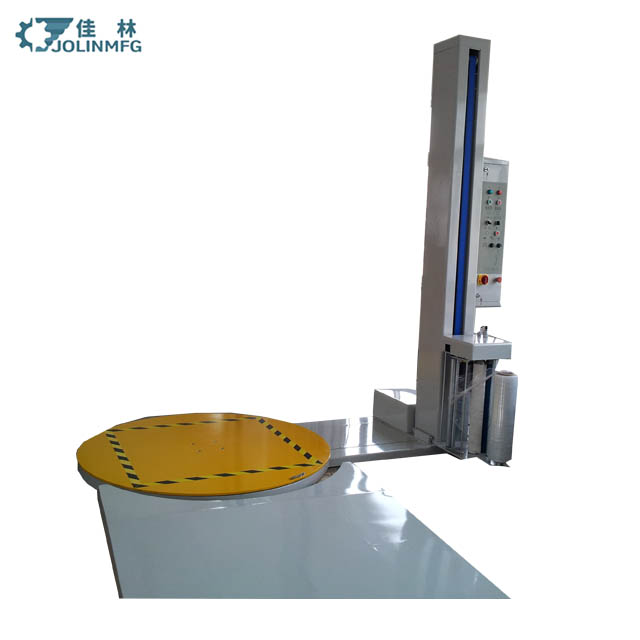

Automatic Turntable Pallet Stretch Wrapping Machine
This automatic stretch wrapping machine uses a turntable to efficiently wrap pallets. It secures goods for transport and storage.
Technical Specifications
Product Overview
High-Efficiency Pallet Wrapping Solution
This fully automatic, heavy-duty turntable stretch wrapping machine is engineered to optimize end-of-line packaging operations. It features advanced tension control and customizable packing designs to ensure product stability while minimizing film material usage. Designed for seamless integration, this unit offers robust construction and intelligent features like automatic height detection and self-protection mechanisms to enhance operational safety and efficiency.
Technical Specifications
- Model Number
- JT-2000
- Turntable Diameter
- 1500mm / 1800mm
- Max. Wrapping Height
- 2100mm / 2400mm
- Max. Wrapping Area
- 1300 x 1300mm
- Max. Wrapping Weight
- 2000 kg
Performance Metrics
Pre-stretch Tension Range
0 %
Min Tension
250 %
Max Tension
- Turntable Speed
- 2-15 rpm
Key Features
Operational Features
- Automatic film breaking after cycle completion
- Soft start and stop functionality
- Photocell sensor for automatic height detection
- Mechanical flexible braking for tension control
- Automatic turntable orientation positioning
- Design Highlights

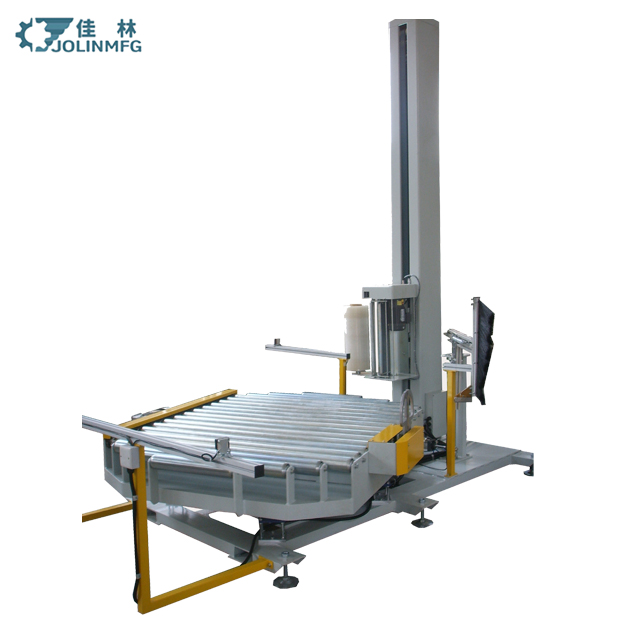

- 12-Roller Support SystemBelt-Driven ConveyorIntegrative U-Model ChassisImported Electrical ComponentsAero Socket Connections
