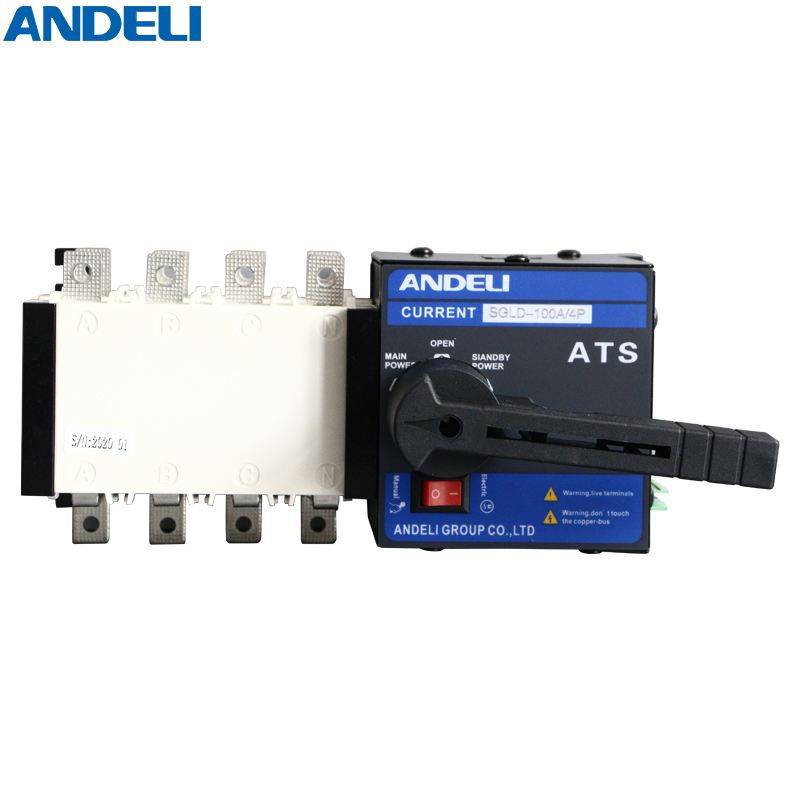

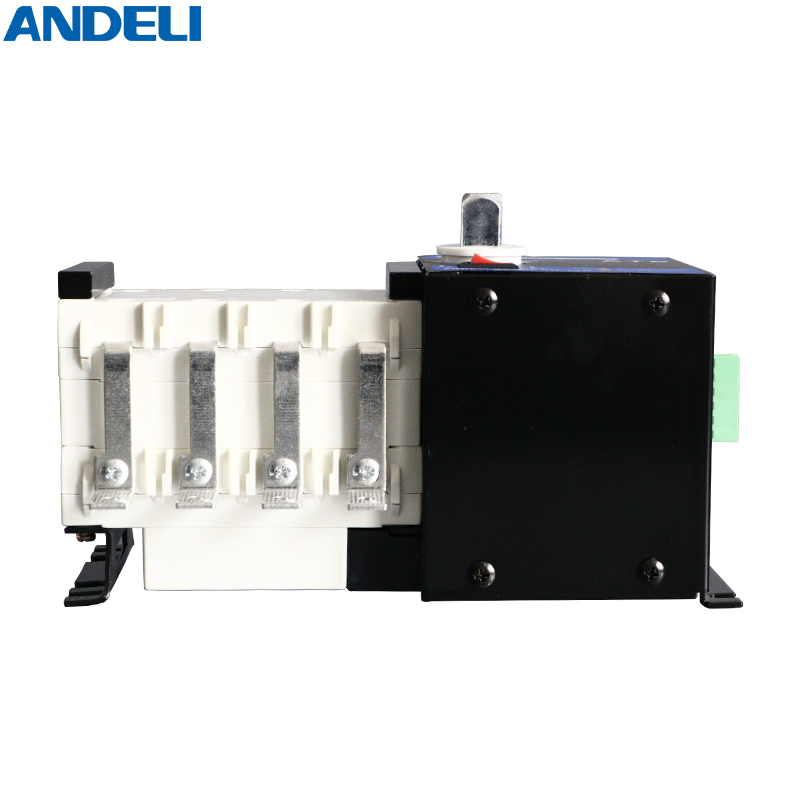

Automatic Transfer Switch ATS 100A 4P
This automatic transfer switch (ATS) ensures a continuous power supply during outages. It is designed for seamless power transfer between main and standby sources.
Technical Specifications
Product Overview
High-Reliability Dual Power Switching
This automatic transfer switch is engineered for seamless power management between primary and backup sources to ensure continuous operation during grid failures. Featuring an integrated design with advanced logic control, it offers high anti-jamming capabilities and a fast conversion time of 0.4 seconds. The unit is housed in a durable insulation shell and utilizes double-breakpoint contacts to simplify connection layouts while enhancing operational safety.
Technical Specifications
Performance Metrics
100 A
Rated Current
0.4 s
Conversion Time
690 V
Insulation Voltage (Ui)
380 V
Operational Voltage (Ue)
Detailed Attributes
| Attribute | Specification |
|---|---|
| Model | SGLD-100A/4P |
| ATSE Class | PC Class |
| Pole Configuration | 4P |
| Weight | 7.5 kg |
| Standard | GB/T 14048.11 |
Features
Key Features
- Dual power source automatic transfer
- Manual and electric operation modes
- Double breakpoint contact mechanism
- Integrated logic control technology
- High anti-jamming performance
- Easy terminal-based control circuit installation
