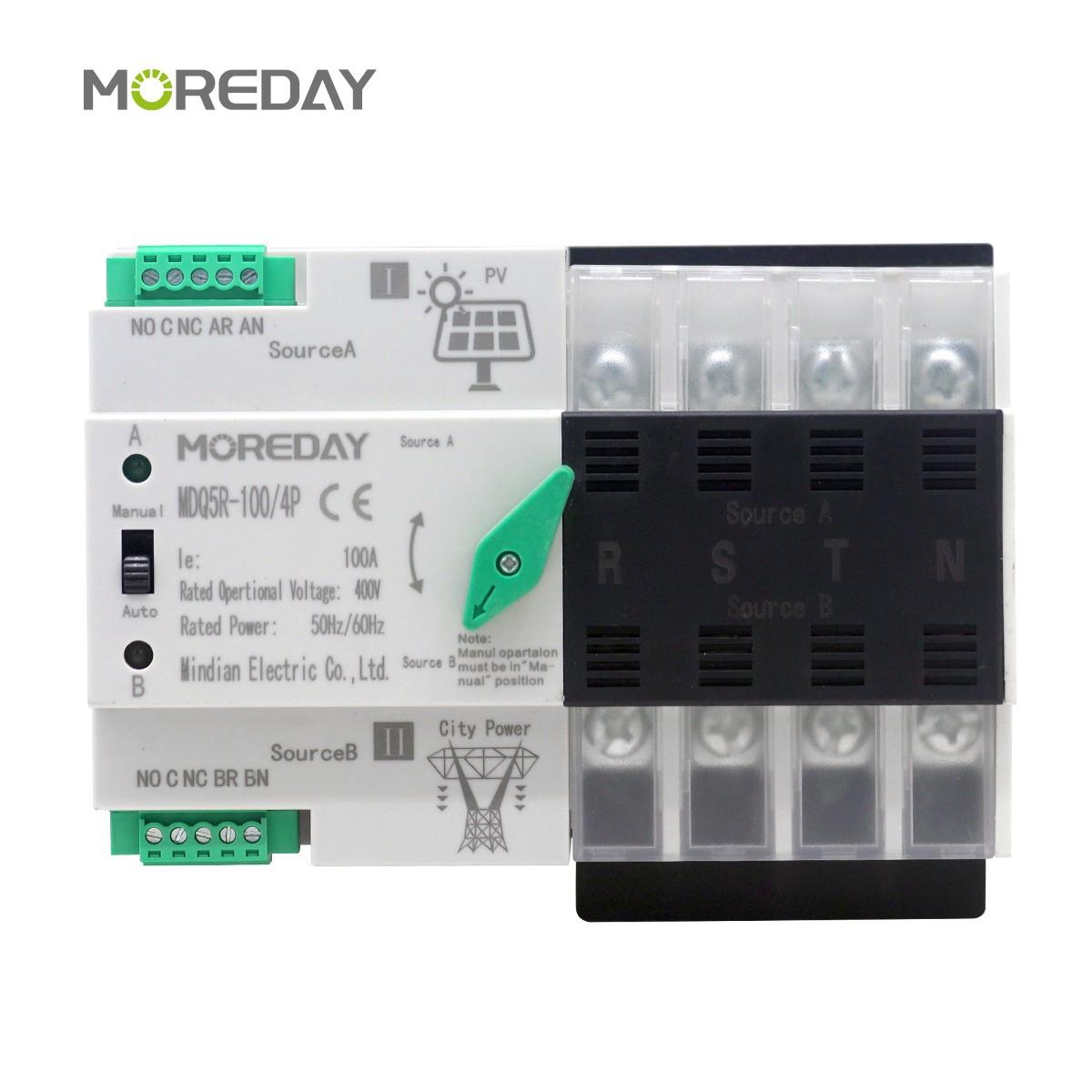

Automatic Transfer Switch 4P
This automatic transfer switch automatically switches a power source from one supply to another if the primary source fails. It is commonly used in backup power systems for essential infrastructure.
![[copy]High Quality Power Transfer Switch, Automatic Transfer Switch 2 Power Uninterruptible 4p - Image 1](/_next/image?url=https%3A%2F%2Fgiueljlssfehchxmbepc.supabase.co%2Fstorage%2Fv1%2Fobject%2Fpublic%2Fpublic-site%2Fproducts%2Fcopyhigh-quality-power-transfer-switch-automatic-transfer-switch-2-power-uninterruptible-4p%2F2.jpg&w=3840&q=75)
![[copy]High Quality Power Transfer Switch, Automatic Transfer Switch 2 Power Uninterruptible 4p - Image 2](/_next/image?url=https%3A%2F%2Fgiueljlssfehchxmbepc.supabase.co%2Fstorage%2Fv1%2Fobject%2Fpublic%2Fpublic-site%2Fproducts%2Fcopyhigh-quality-power-transfer-switch-automatic-transfer-switch-2-power-uninterruptible-4p%2F1.jpg&w=3840&q=75)
![[copy]High Quality Power Transfer Switch, Automatic Transfer Switch 2 Power Uninterruptible 4p - Image 3](/_next/image?url=https%3A%2F%2Fgiueljlssfehchxmbepc.supabase.co%2Fstorage%2Fv1%2Fobject%2Fpublic%2Fpublic-site%2Fproducts%2Fcopyhigh-quality-power-transfer-switch-automatic-transfer-switch-2-power-uninterruptible-4p%2F0.jpg&w=3840&q=75)
Technical Specifications
Overview
Reliable Automatic Power Transfer

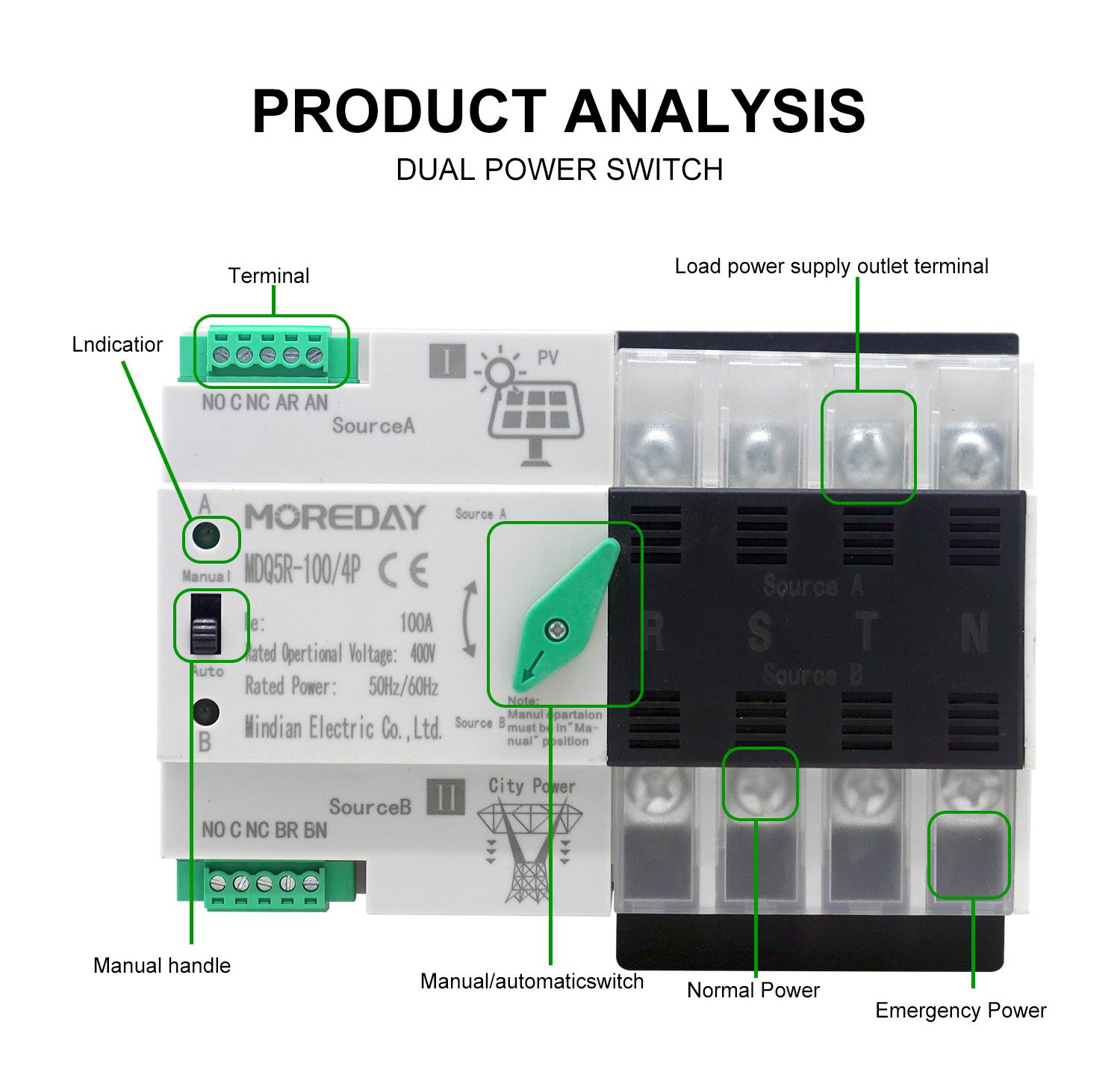

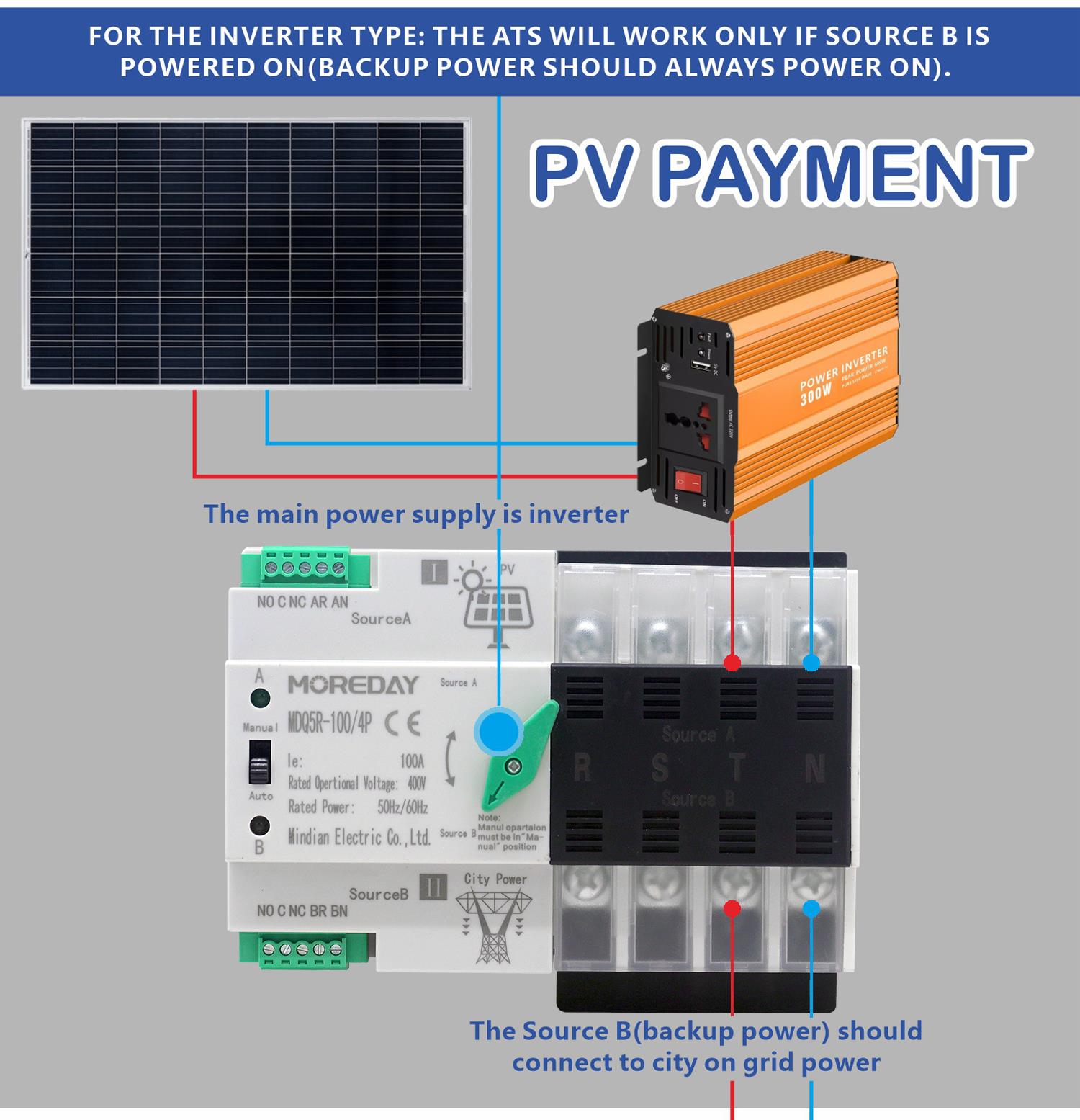

This 4-pole Automatic Transfer Switch (ATS) ensures a continuous power supply by seamlessly switching between primary and backup sources during disruptions. It is designed for critical infrastructure like hospitals and data centers, as well as residential and commercial backup systems. Supporting both manual and automatic operation, it can manage transitions between utility grids, generators, and renewable energy sources like solar or wind power.
Key Performance Metrics
Performance Highlights
Electrical Characteristics
Voltage Ratings
| Parameter | Value |
|---|---|
| Rated Working Voltage (Ue) | AC400V, 50HZ |
| Rated Insulation Voltage (Ui) | AC690V, 50HZ |
| Control Circuit Supply Voltage (Us) | AC220V, 50HZ |
| Working Condition Range | 85% Us ~ 110% Us |
- Available Rated Currents
- 32A40A50A63A100A125A
Physical & Installation
Available Poles
- 2P
- 3P
- 4P
Weight by Configuration
| Poles | Weight (KG) |
|---|---|
| 2P | 1.7 |
| 3P | 2.1 |
| 4P | 2.6 |
- Installation Method
- Din rail
Durability & Protection
- Electrical Endurance
- 6000 cycles (2.0Ie 1.05Ue cosφ=0.80±0.05)
- Recommended SCPD (Fuses)
- RT16-00-63A
Ancillary Features

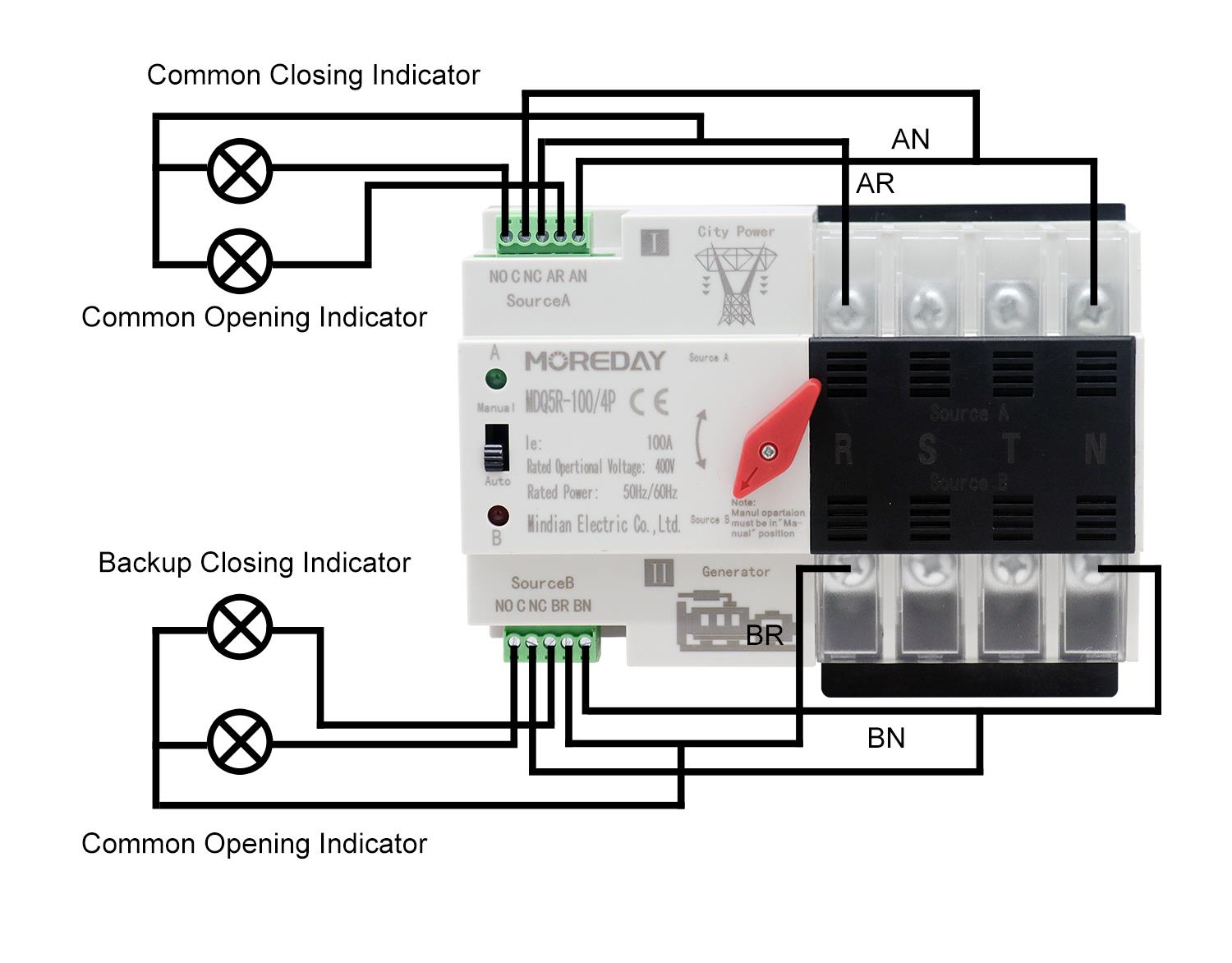

Isolated Relay Contacts
Equipped with two isolated relays. Each relay features 2 groups of passive switch contacts with a capacity of AC220V 50Hz, Ie=5A.
Compliance & Quality
Product Certifications
