Technical Specifications
Overview
High-Efficiency Shrink Sleeve Labeling

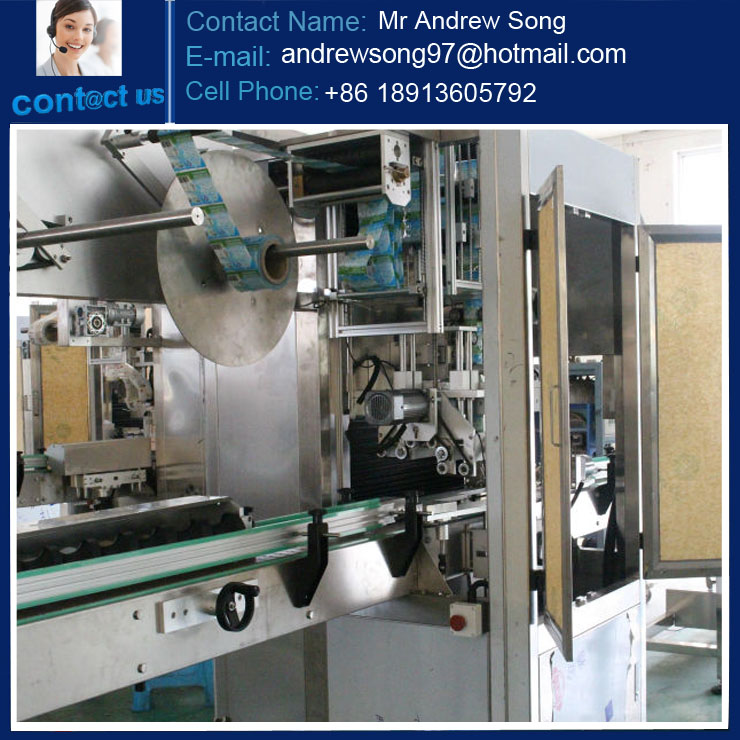

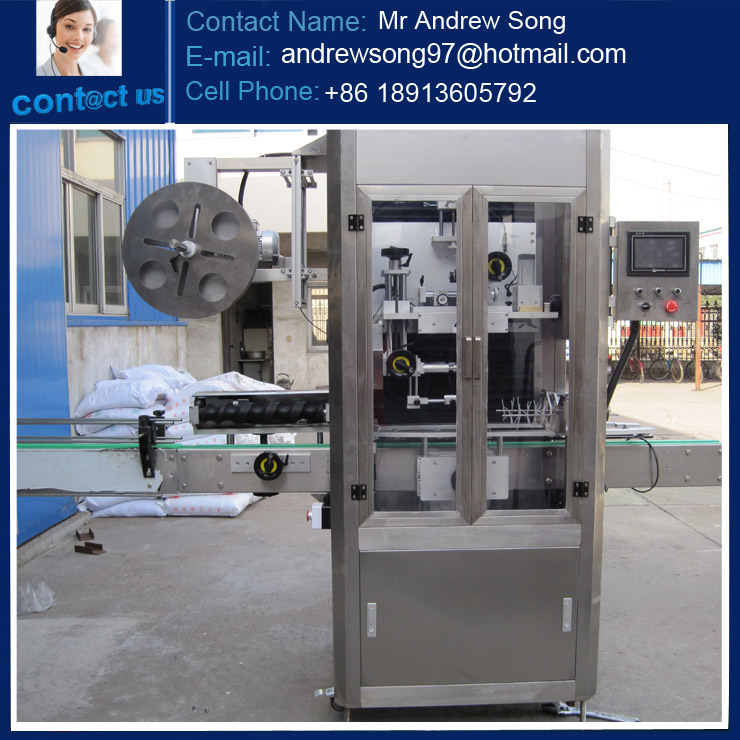

This fully automatic shrink sleeve labeling machine is engineered for high-speed application of PVC, PET, and OPS labels across a wide variety of container materials including glass, metal, and plastic. It features a robust stainless steel and aluminum alloy construction, ensuring durability and ease of maintenance in demanding production environments. With its precision Japanese servo motor and advanced photo-electric sensing, the system guarantees accurate label cutting and seamless adhesion for round, square, or irregular container shapes.
Performance
Output Capacity
500 bpm
Max Throughput
36,000 BPH
Max Hourly Output
Electrical Requirements
- AC380V/220V
- 50/60HZ
- Three-phase
- 2.5KW-4KW Power Output
Technical Specifications
Supported Containers
| Parameter | Specification |
|---|---|
| Materials | Glass, Metal, Plastic, Aluminium |
| Shapes | Round, Oval, Square, Rectangle |
| Diameter | 25mm - 125mm |
| Max Height | 320mm |
Label Compatibility
- Materials: PVC, PET, OPS
- Thickness: 0.035mm - 0.1mm
- Length: 25mm - 200mm
- Layflat Width: 48mm - 175mm
- Machine Dimensions
- L2440 × W950 × H2100 mm
- Total Weight
- 600 kg
Key Features
- Equipment Highlights
- Stainless Steel ConstructionJapanese Servo MotorTool-free AdjustmentModular DesignPrecision Cutting
