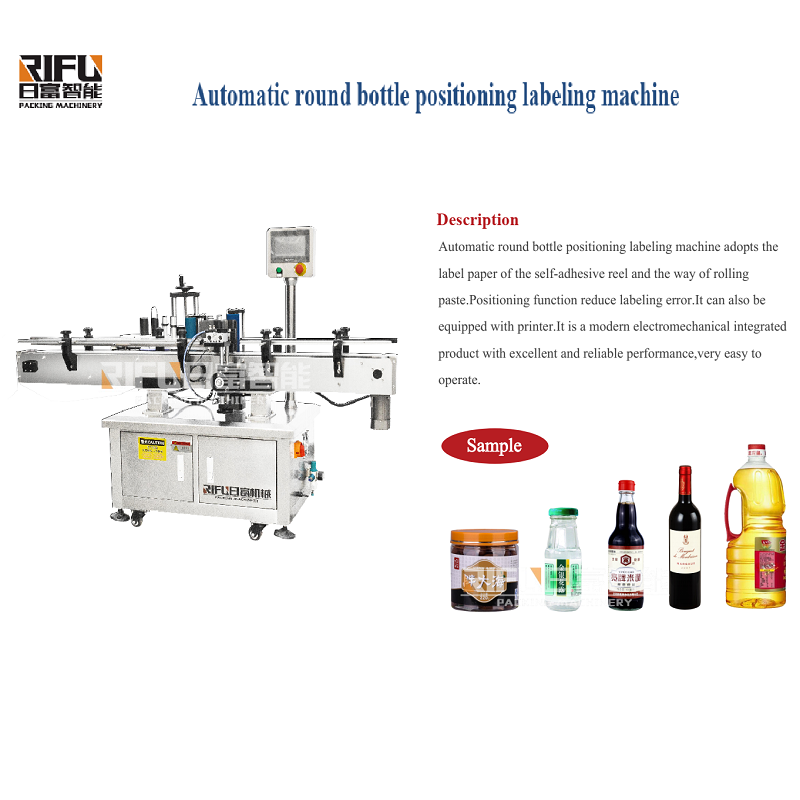

Automatic Round Bottle Label Applicator
This automatic labeling machine is designed for precise and efficient labeling of round bottles using self-adhesive labels. The machine utilizes a roller rubbing mechanism for high-speed labeling, preventing label skewing issues.
Technical Specifications
Product Overview
High-Precision Automatic Labeling
This automatic round bottle labeling machine utilizes advanced self-adhesive reel technology and a roller-rubbing application method to ensure precise label placement. Designed for reliability and ease of use, it features an integrated positioning system that significantly reduces labeling errors compared to traditional belt-driven systems. The machine is a modern electromechanical solution that can be fully customized with optional feeding, collecting, and printing devices to streamline your production line.
Technical Specifications
- Model
- RFT-80Y
- Voltage
- AC 220V/50Hz110V/60Hz
- Power Rating
- 1200 W
Performance Metrics
Labeling Speed
20 BPM
Min Speed
40 BPM
Max Speed
Capacity & Dimensions
Applicable Bottle Range
| Dimension | Range |
|---|---|
| Outer Diameter | 12-100 mm |
| Height | 30-200 mm |
Applicable Label Range
| Dimension | Range |
|---|---|
| Height | 15-100 mm |
| Length | 20-300 mm |
Physical Attributes
- Weight
- 200 kg
- Overall Dimensions (L×W×H)
- 1800 × 1100 × 1450 mm
Features
System Highlights
- Roller rubbing mechanism eliminates belt deviation errors
- Integrated positioning function for high accuracy
- Human-machine interface with online assistance
- Optional printer integration available
- Supports automated feeding and collecting procedures
