Technical Specifications
Overview
High-Performance Rotary Labeling Solution

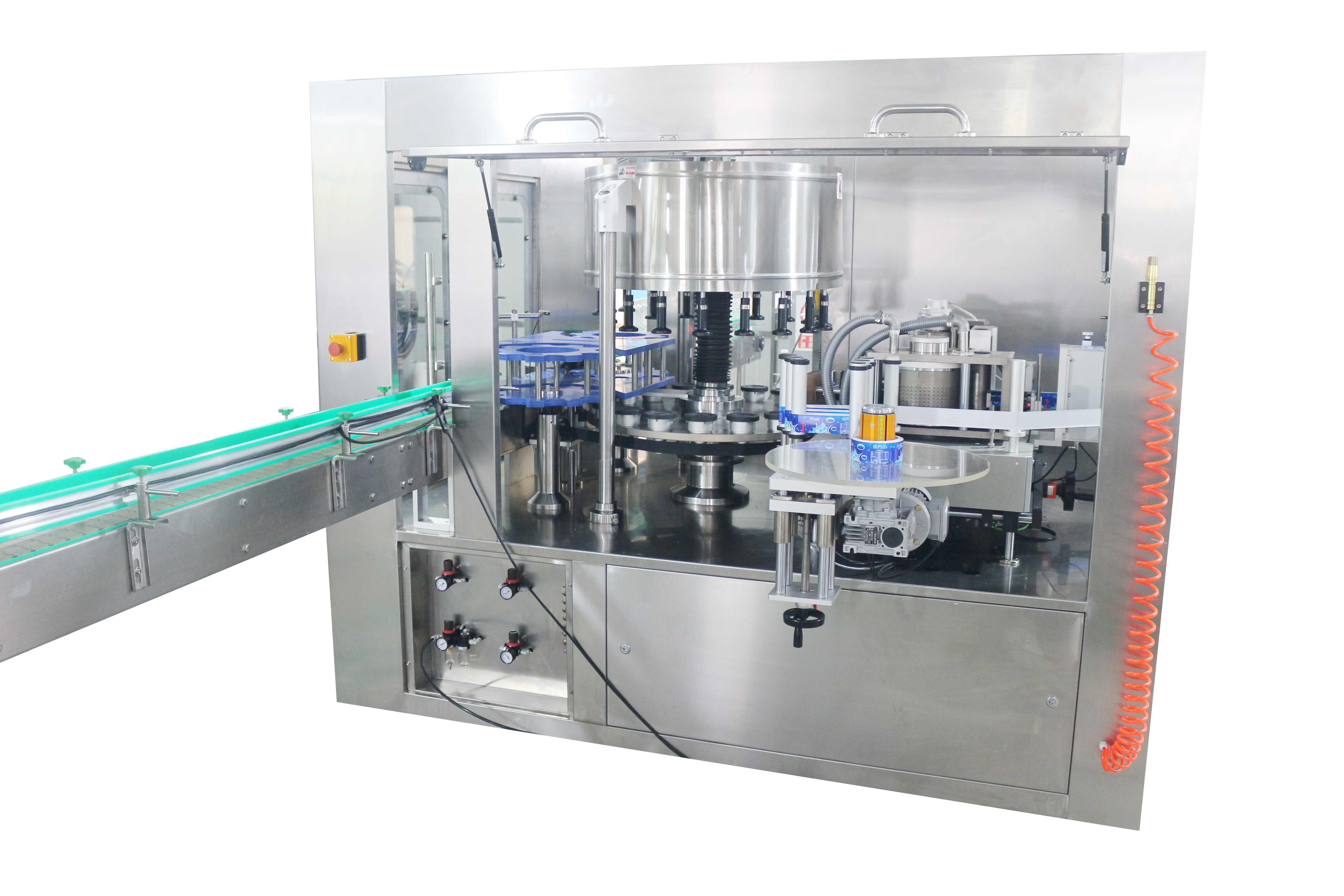

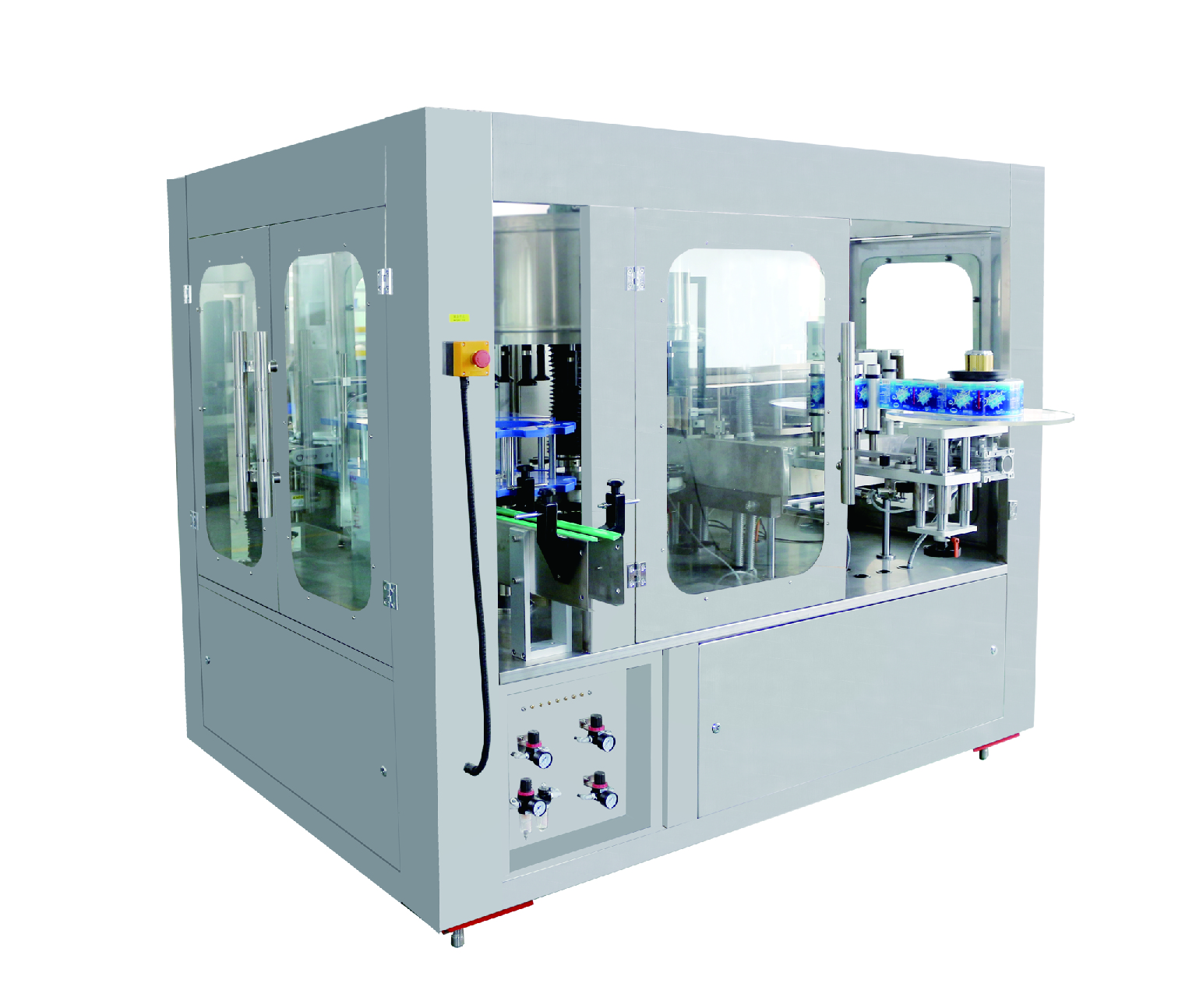

The Automatic Rotary Hot Glue Labeling Machine (PM-RT1800) is a high-speed, precision-engineered system designed for seamless integration into industrial packaging lines. Utilizing an advanced rotary platform and servo-driven labeling technology, it ensures consistent, high-quality application of OPP labels on cylindrical containers. With robust safety protocols and intelligent automation, this machine is ideal for high-volume beverage, food, and pharmaceutical production environments.
Technical Specifications
Capacity
6,000 bph
Bottles per Hour
- Power Supply
- 380V / 60Hz
- Total Power
- 8 kW
- Overall Dimensions
- 3150mm (L) x 1770mm (W) x 1800mm (H)
- Total Weight
- 2500 kg
Capabilities
- Container Compatibility
- Diameter: 40-105mm, Height: 80-350mm
- Label Dimensions
- Length: 125-325mm, Height: 20-150mm
- Label Material
- OPPRoll-fed
- Gluing Method
- Roll painting (approx. 10mm overlap on head and tail)
Safety & Automation
Safety Systems
Protective DoorsLack of Label AlarmLack of Bottle AlarmLeak of Labeling AlarmPressure Testing
Components
Control & Motion Components
| Component Name | Quantity |
|---|---|
| Touch screen | 1 |
| Motion Controller | 1 |
| Servo driver | 1 |
| Servo motor | 1 |
| PLC | 1 |
| Inverter | 4 |
| Bottle sensor | 1 |
| Label sensor | 2 |
| Circuit breaker | 9 |
| Contactor | 5 |
