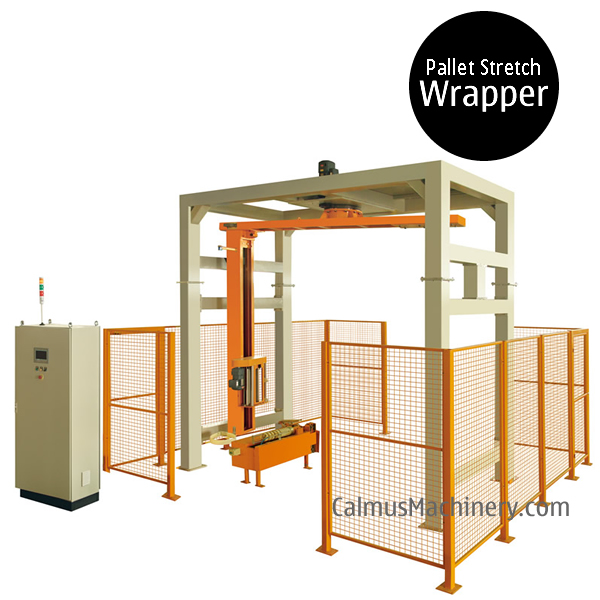

Automatic Rotary Arm Pallet Stretch Wrapper
This fully-automatic rotary arm stretch wrapper is designed for wrapping loaded pallets with stretch film. It provides an automated packaging solution for high-volume pallet wrapping applications, ensuring consistent and secure wrapping.
Technical Specifications
Overview
Automated Pallet Wrapping Solution
This fully automatic rotary arm stretch wrapper is designed to streamline end-of-line packaging processes without the need for human intervention. It handles the entire wrapping cycle—including pallet feeding, film loading, wrapping, cutting, and discharging—ensuring consistent load stability. Equipped with a PLC-based touch screen controller, it offers reliable operation and automated fault alerts, making it an essential component for high-efficiency production lines in chemical, food, and beverage industries.
Performance Metrics
Wrapping Capacity
Wrapping Dimensions
| Parameter | Value |
|---|---|
| Applicable Pallet Size | 500-1300mm x 500-1300mm |
| Max Wrapping Height | 2000mm |
Technical Specifications
- Machine Weight
- 2200 kg
- Automation Features
- Fully AutomaticRotary ArmPre-stretchedPLC ControllerTouch Screen InterfaceAutomated Fault Alerts
Film Specifications
Film Requirements
- Material: LLDPE
- Thickness: 17-35μm
- Width: 300-500mm
- Roll Core Diameter: 76.2mm
- Max Roll Outer Diameter: 260mm
