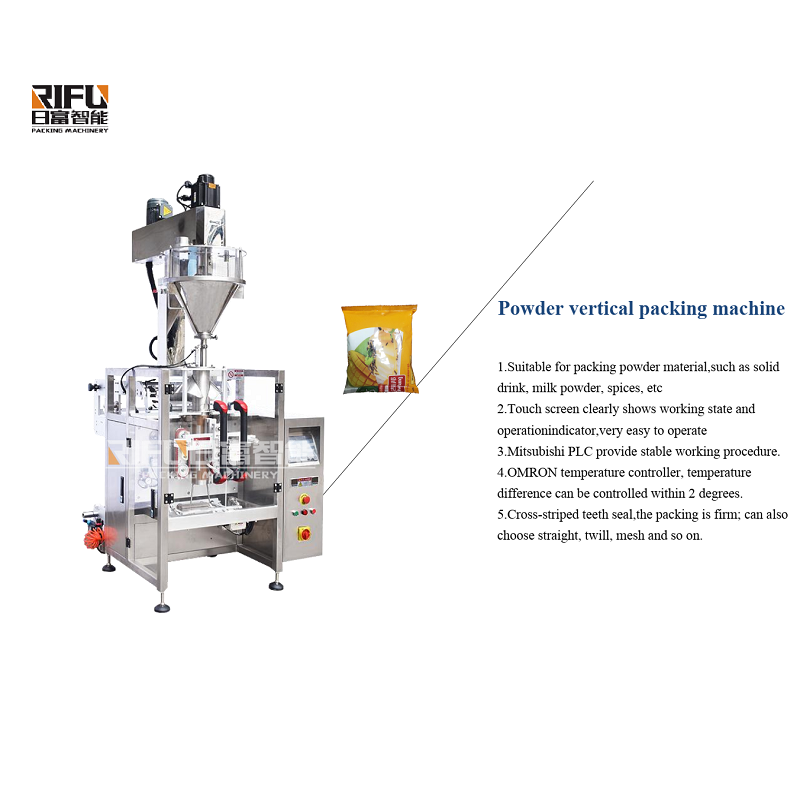

Automatic Powder Vertical Packaging Machine
This automatic powder vertical packaging machine is suitable for packing powder materials such as milk powder and spices. It features a touchscreen display and a Mitsubishi PLC for stable operation.
Technical Specifications
Overview
High-Efficiency Powder Packaging
This automatic vertical packaging machine is engineered for precision and reliability when handling various powder materials, including milk powder, spices, and solid drinks. It features an intuitive touchscreen interface for easy operation and monitoring, supported by a stable PLC control system. With advanced temperature control and secure sealing technology, it ensures consistent, high-quality packaging results for industrial applications.
Technical Specifications
- Power Supply
- 220VAC / 50Hz
- Power Consumption
- 3 KW
- Air Pressure
- 0.65 MPa
- Air Consumption
- 0.6 m3/min
Performance Metrics
Packing Speed
60 bags/min
Max Speed
- Packing Range
- 2500 ml
Packaging Dimensions
Bag Size Range
| Dimension | Range |
|---|---|
| Length | 60-300 mm |
| Width | 100-200 mm |
- Max Film Width
- 420 mm
Physical Attributes
- Overall Dimensions
- 1388 (L) x 1116 (W) x 1536 (H) mm
- Weight
- 500 Kg
Features
Control Components
PLC ControlTouchscreen InterfaceIntelligent Temperature Controller
- Sealing Patterns
- Cross-stripedStraightTwillMesh
