Automatic PET Bottle Water Filling Machine
This machine is used to fill mineral or purified water into PET bottles. The whole process is automatic and suitable for plastic bottles.
Technical Specifications
Overview
High-Efficiency 3-in-1 Filling Solution

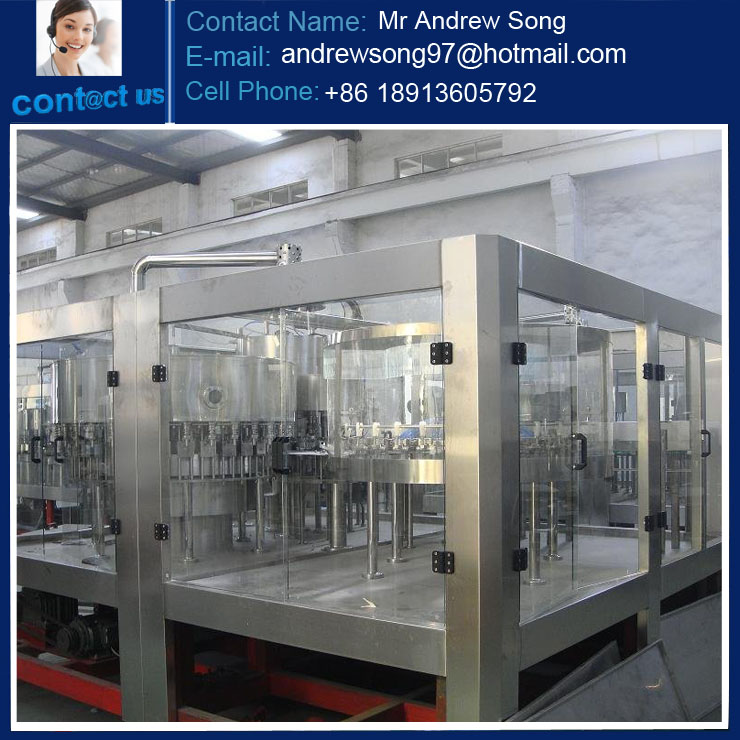

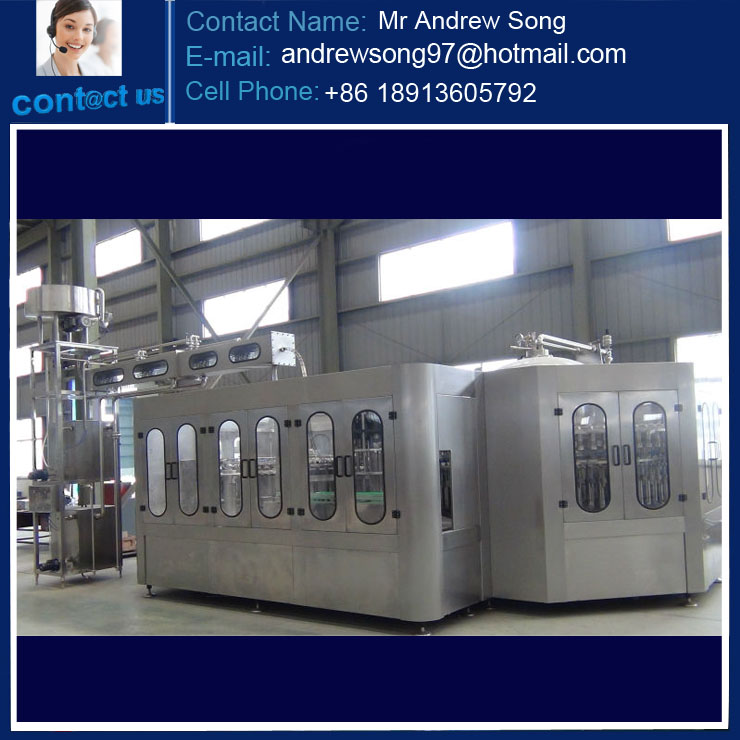

The CGF series automatic filling line integrates rinsing, filling, and capping into a single, compact unit designed for mineral and purified water production. Utilizing gravity or micro-pressure filling technology, this machine ensures faster, more stable performance compared to standard models. Equipped with advanced Mitsubishi PLC controls and photoelectric sensors, it offers a high degree of automation, reliability, and ease of operation for modern bottling facilities.
Technical Specifications
Bottle Dimensions
55 mm
Min Diameter
110 mm
Max Diameter
150 mm
Min Height
310 mm
Max Height
- Compatible Bottle Types
- PET BottlePlastic BottleGlass Bottle
- Filling Method
- Gravity or Micro-pressure filling
- Control System
- Mitsubishi PLC with Inverter
Performance Data
Model Comparison Table
| Model | Capacity (500ml) | Washing Heads | Filling Heads | Capping Heads | Weight | Motor Power |
|---|---|---|---|---|---|---|
| CGF14-12-4 | 4000 BPH | 14 | 12 | 4 | 2500 kg | 2.2 kw |
| CGF16-16-5 | 6000 BPH | 16 | 16 | 5 | 3000 kg | 2.5 kw |
| CGF18-18-6 | 8000 BPH | 18 | 18 | 6 | 4000 kg | 3 kw |
| CGF24-24-8 | 12000 BPH | 24 | 24 | 8 | 4500 kg | 3 kw |
| CGF32-32-10 | 15000 BPH | 32 | 32 | 10 | 6000 kg | 5.5 kw |
