Automatic PET Bottle Water Filling Machine

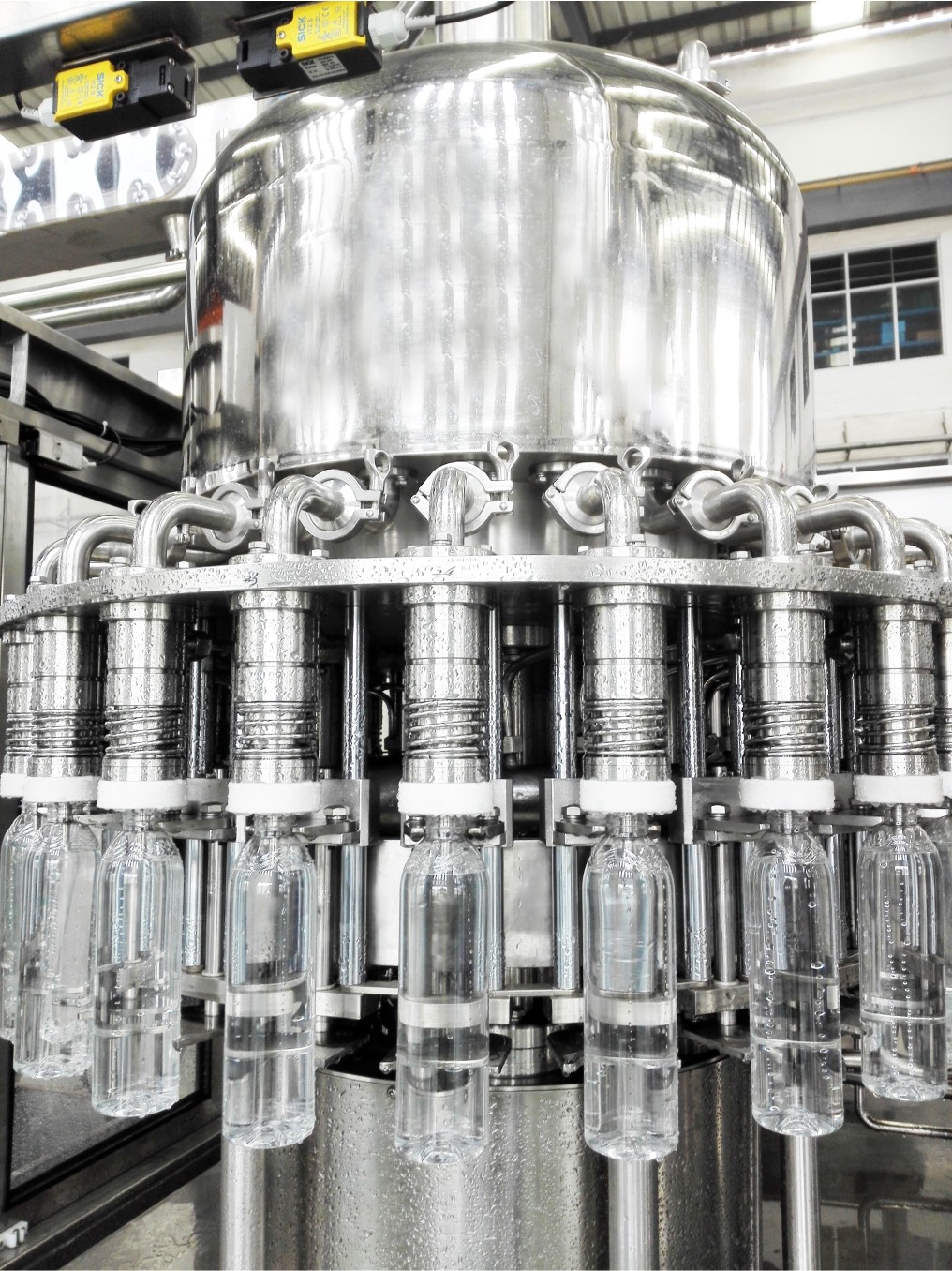

This water filling machine is designed for rinsing, filling, and capping PET bottles containing mineral or purified water. It uses a high precision mechanical valve, which allows for rapid filling speeds and precise liquid level control.
Technical Specifications
Overview
High-Efficiency Water Bottling Solution
This automatic PET bottle water filling machine is a versatile solution designed for rinsing, filling, and capping processes. Engineered with a modular design, it offers high productivity and precision, meeting national standards for food sanitary conditions. The system features advanced magnetic chuck capping for adjustable torque and precision mechanical valves for consistent fill levels.
Technical Specifications
Capacity Table
| Model | Speed (BPH) |
|---|---|
| XLWF360 | 36,000-40,000 |
| XLWF240 | 24,000-28,000 |
| XLWF180 | 15,000-18,000 |
| XLWF120 | 10,000-12,000 |
| XLWF080 | 6,000-8,000 |
- System Configuration
- 3-in-14-in-1AutomatedModular Design
Features
Primary Systems
- Rinsing system
- Filling system
- Capping system
- Drive transmission system
- Electronic control system
Performance Highlights
High-Precision FillingAdjustable Capping TorqueSanitary Grade ConstructionFast Filling Speed
Application
- Supported Applications
- Purified WaterMineral WaterPET Bottles
