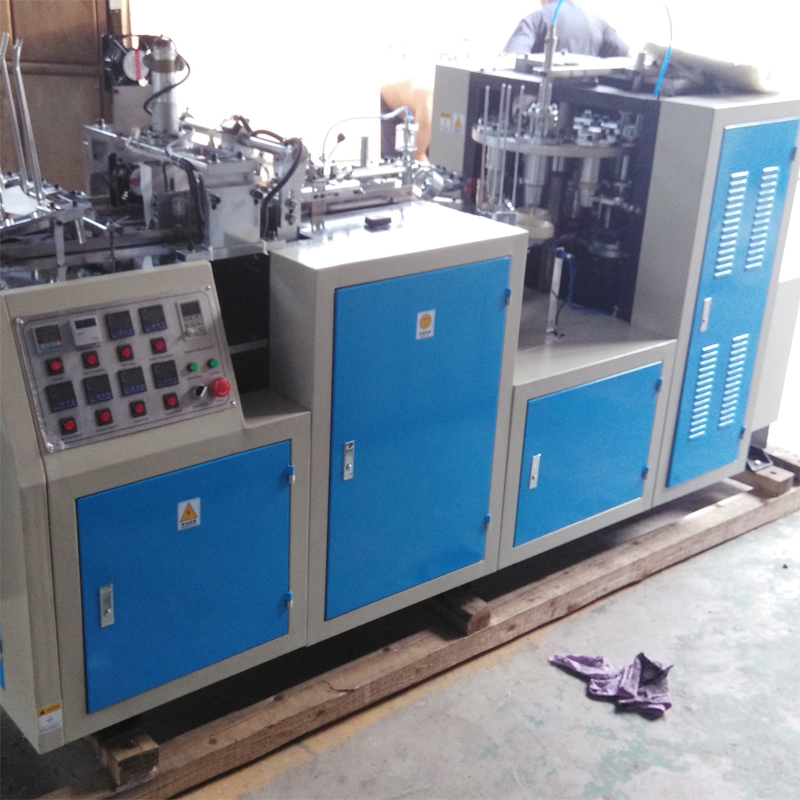

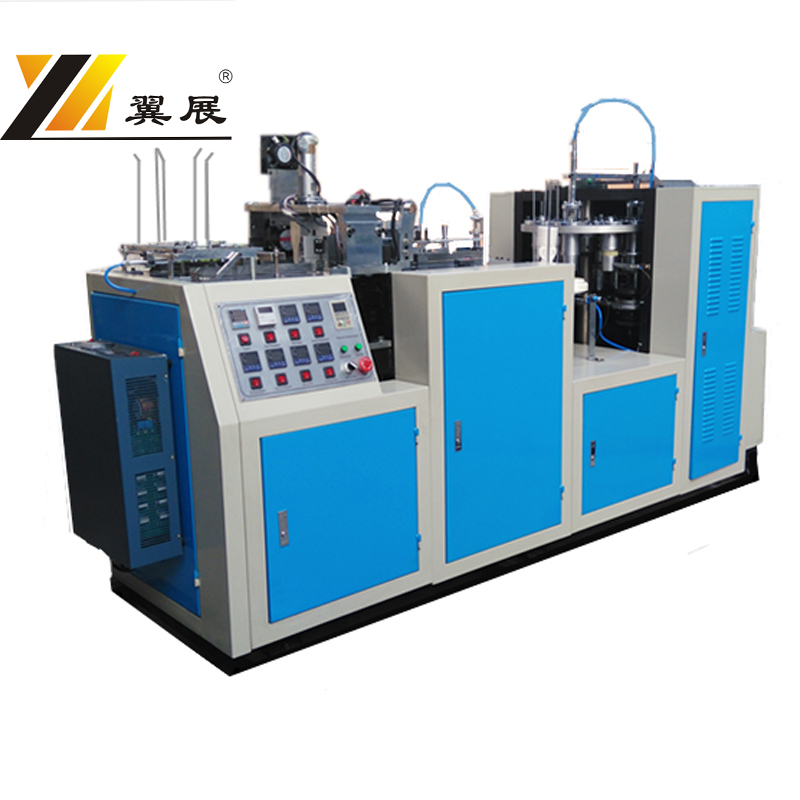

Automatic Paper Cup Forming and Handle Fixing Machine
This automatic machine forms paper cups and affixes handles. It can produce 4-12oz cups and offers optional electrical heating and ultrasonic sealing.
Technical Specifications
Overview
Integrated Cup Forming and Handle Solution
This economical and versatile machine is designed for the automated production of paper cups with attached handles. It streamlines the manufacturing process by integrating cup forming with precise handle cutting and sealing, suitable for cup sizes ranging from 2oz to 12oz. The system features modular mold changeability and robust construction to ensure consistent quality in high-volume production environments.
Technical Specifications
Ration Productivity
50 pcs/min
Productivity
- Cup Size Capacity
- 2oz - 12oz
- Compatible Material
- 180-280gsm single/double PE coated paper
Utility Requirements
Electrical Power
- 220v, single phase, 50Hz
- 380v, three phase, 50Hz
- Total Power Consumption
- 6 KW
- Air Pressure
- 0.6 Mpa
- Air Consumption
- 0.4 m3/min
Physical Attributes
Machine Weight
| Type | Weight |
|---|---|
| Net Weight | 1600kg |
| Gross Weight | 1700kg |
Features
- Available Options
- Electrical HeaterUltrasonic SealingAdjustable Molds
