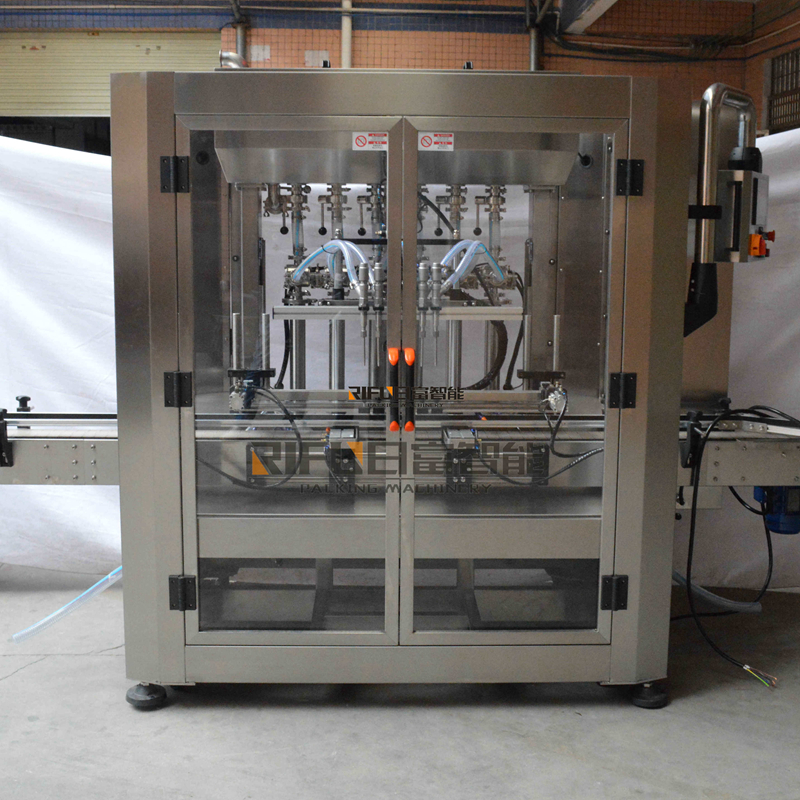

Automatic Liquid Filling Machine
This automatic piston filling machine is designed for precise and efficient filling of liquids or semi-liquids into containers. It utilizes a piston filling mechanism controlled by a PLC system, ensuring accuracy and consistency.
Technical Specifications
Overview
Precision Piston Filling Solution
This automatic piston filling machine is engineered for high-precision, efficient filling of liquids and viscous products. Utilizing advanced PLC-controlled automation for feeding, positioning, and filling, it ensures consistent performance that adheres to strict GMP standards. The system is highly versatile, making it an ideal solution for industries ranging from food and medicine to daily chemicals and pesticides.
Key Features
- Suitable Industries
- MedicineFoodDaily ChemicalPesticide
- Compatible Products
- PasteSauceLatexViscous Liquids
Technical Specifications
Container Compatibility
- Bottle height: 80-180mm (customizable)
- Bottle width: 60-100mm (customizable)
- Filling Accuracy
- 1 %
- Air Pressure
- 0.7 KG/CM2
- Air Consumption
- 1.2 MPA
Model Comparison
Model Specifications
| Feature | RF-2L | RF-4L | RF-6L |
|---|---|---|---|
| Filling Range (ML) | 100-1000 | 200-2000 | 300-3000 |
| Filling Speed (BPH) | 480-600 | 960-1200 | 1440-1800 |
| Power (KW/220V) | 1.5 | 2.2 | 2.5 |
| Hopper Capacity (L) | 80 | 120 | 150 |
| Weight (KG) | 350 | 600 | 700 |
