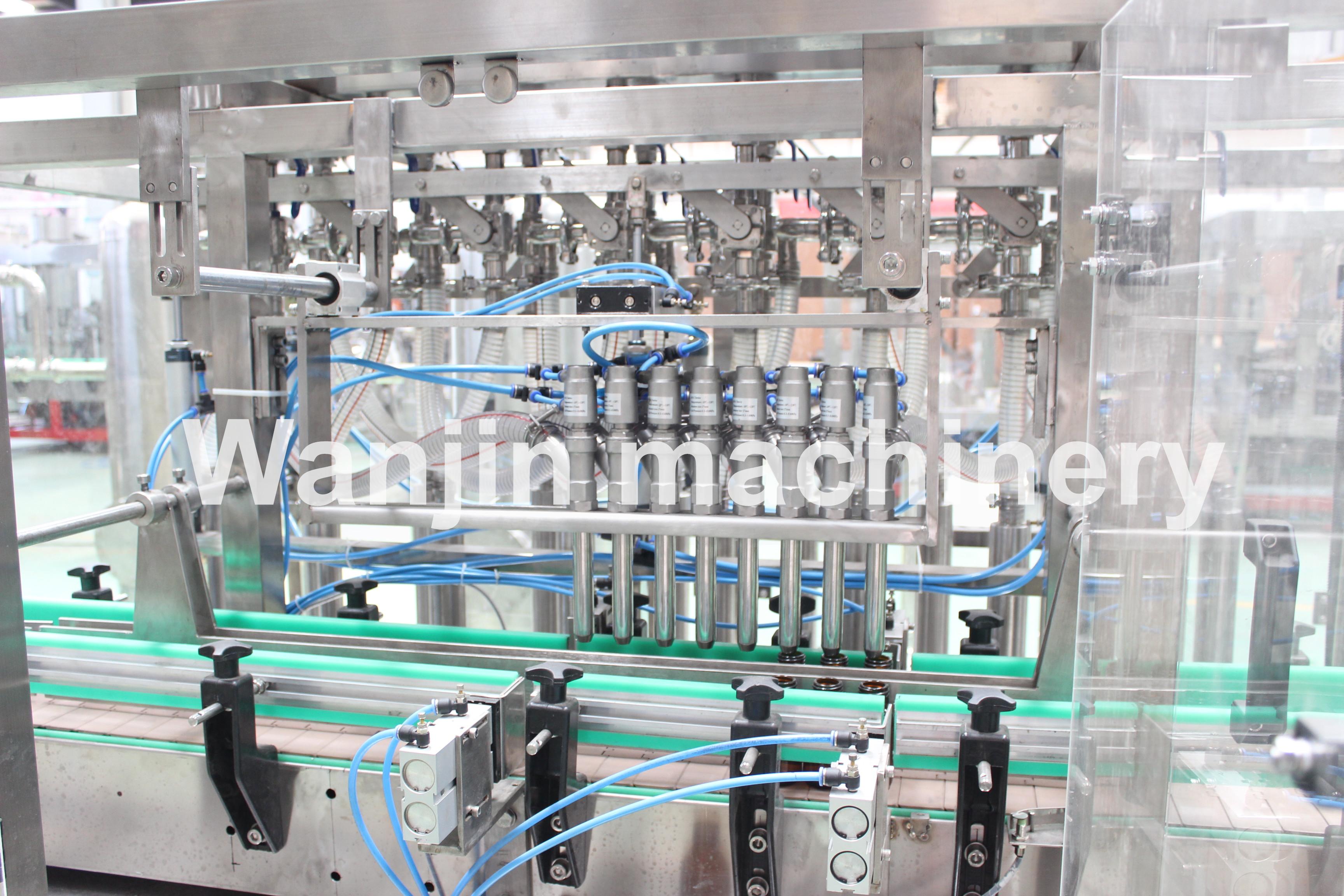

Automatic Linear Piston Filling Machine
This automatic filling machine is designed for precise liquid dispensing into containers. It utilizes a piston-based filling mechanism and is suitable for liquids like oils and water, with adjustable volume settings for different container sizes.
Technical Specifications
Overview
High-Efficiency Linear Filling Solution
This automatic linear piston filling machine is designed for the precise dispensing of viscous, non-viscous, and corrosive liquids across various industries, including food, beverage, and chemical processing. It features an integrated electromechanical control system and a vacuum anti-drip device, ensuring clean and accurate production cycles. With its intelligent PLC-based interface, operators can easily adjust settings to accommodate different container varieties and product types.
Performance Metrics
Key Performance Highlights
0.7 MPa
Max Working Pressure
1 kW
Max Power Consumption
4,000 units/hr
Max Capacity
Technical Specifications
Model Specifications
| Model | Filling Heads | Volume (L) | Capacity |
|---|---|---|---|
| WJ-01 | 2 | 0.5-6 | 350-550 |
| WJ-02 | 4 | 0.5-6 | 700-1000 |
| WJ-03 | 6 | 0.5-6 | 1000-1500 |
| WJ-04 | 8 | 0.5-6 | 1500-2200 |
| WJ-05 | 10 | 0.5-6 | 1800-2500 |
| WJ-06 | 12 | 0.5-6 | 2000-3000 |
| WJ-07 | 14 | 0.5-6 | 3000-4000 |
Features
Core Features
- Vacuum anti-drip system
- Intelligent PLC control system
- Touch screen interface
- Electric adjustment capacity system
- Frequency conversion control
- Suitable Industries
- Vegetable OilChemical LiquidDaily ChemicalFood & BeveragePharmaceutical
