Automatic Hot Beverage Filling Machine for PET Bottles

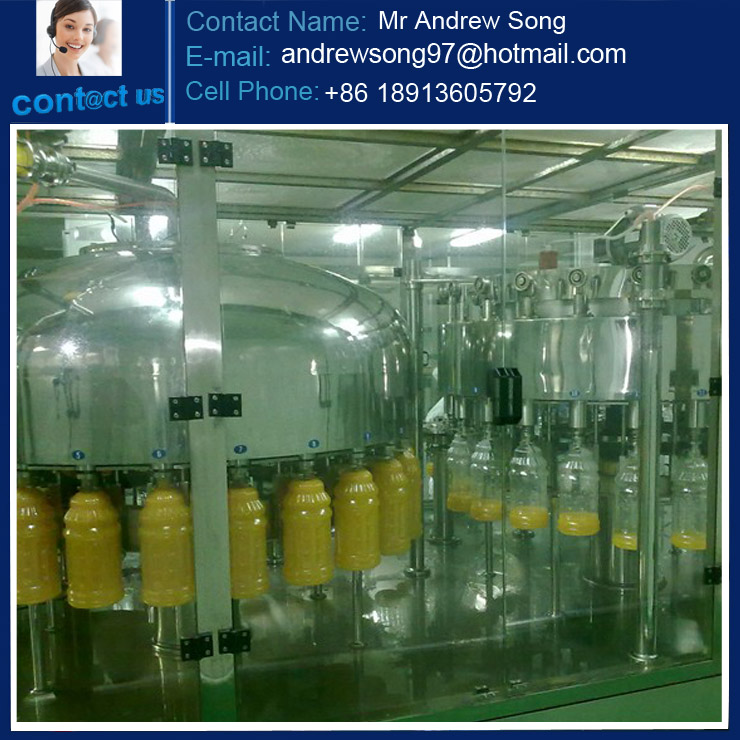

This monobloc machine rinses, fills hot liquid, and caps PET bottles at a rate of 8000-30000 BPH for juice and tea drinks. It features PLC control, temperature management, a CIP cleaning system, and low vacuum filling to meet the requirements of various beverage types.
Technical Specifications
Overview
High-Efficiency Hot Filling Solution

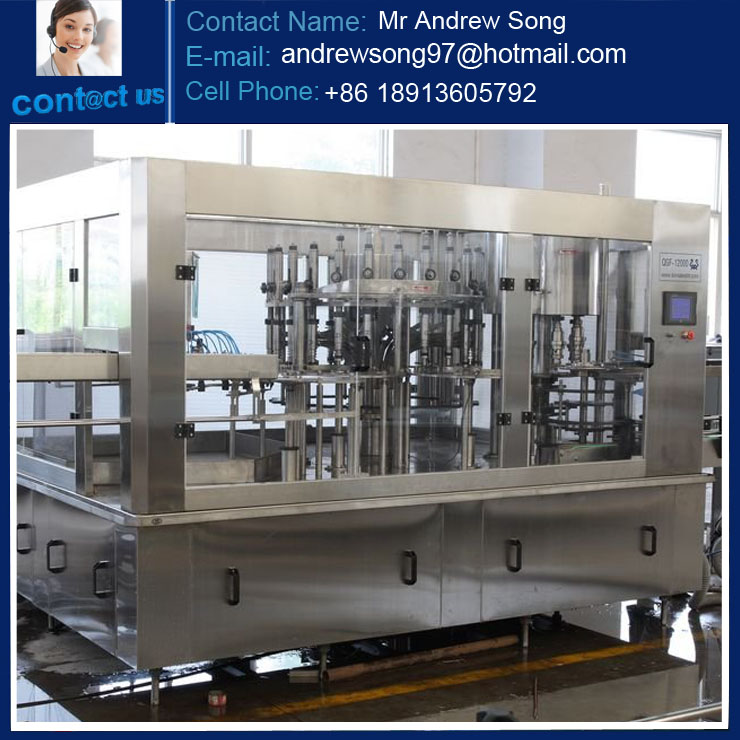

This totally enclosed monobloc system integrates rinsing, filling, and capping processes specifically designed for hot-filled beverages like tea and juice in PET bottles. Engineered for high-throughput production environments, it features advanced PLC-controlled automation, automatic CIP cleaning, and precise temperature regulation to ensure product quality. Its robust design, including specialized bearing blocks and patented capping technology, guarantees smooth operation and high-speed filling reliability.
Performance & Capacity
Production Capacity
- Model Identifiers
- QSF-1200025RXGFD14-12-5
Technical Specifications
Automation & Control
- PLC Control System
- MML Interface
- Frequency Conversion Speed Control
- Automatic CIP Cleaning System
- Filling Temperature Control
- Automatic Oil Greasing System
- Filling Technology
- Low vacuum pressure filling
Mechanical Design
- Capping Head Height
- 110 mm
- Bearing Design
- 3-bearing block design (2 deep groove ball bearings, 1 thrust bearing)
