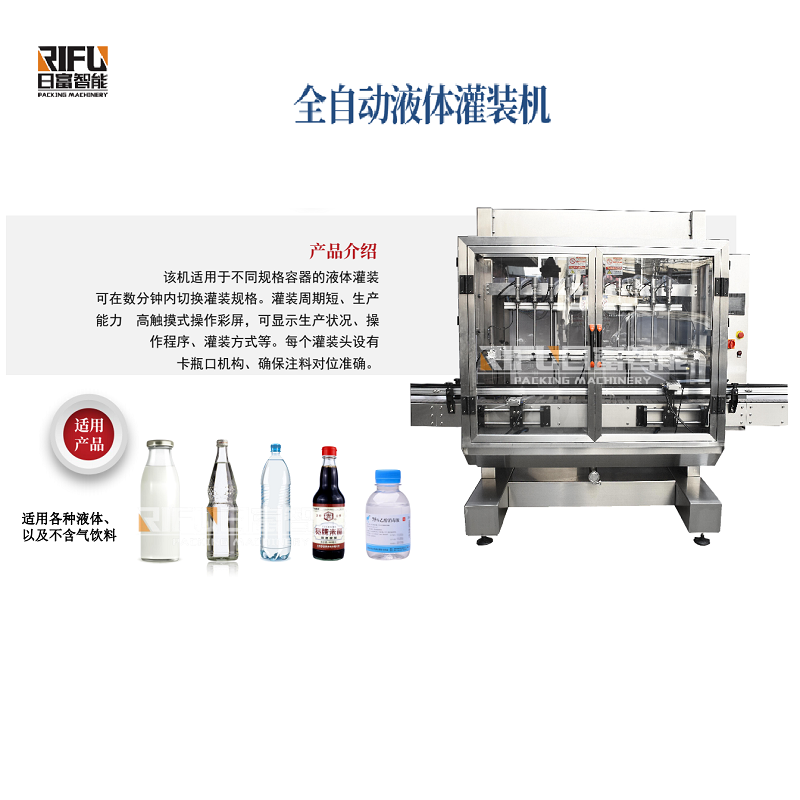

Automatic Gravity Liquid Filling Machine
This automatic liquid filling machine is suitable for filling various liquids into different sized containers. It features quick changeover between container sizes within minutes, short filling cycles, and high production capacity.
Technical Specifications
Overview
High-Efficiency Gravity Filling
This automatic gravity liquid filling machine is engineered for the precise filling of non-viscous and low-viscous liquids. It eliminates common issues like bubbles and leakage while offering rapid changeover times for different container specifications. With no need for spare parts to adjust filling volume, this system provides a flexible, high-capacity solution for various beverage and liquid packaging lines.
Technical Specifications
Model Comparison
| Specification | RF-2A | RF-4A | RF-6A |
|---|---|---|---|
| Filling Range (ML) | 100-1000 | 200-2000 | 300-3000 |
| Filling Speed (BPH) | 480-600 | 960-1200 | 1440-1800 |
| Power (KW/V) | 1.5/220 | 2.2/220 | 2.5/220 |
| Hopper Capacity (L) | 80 | 120 | 150 |
| Weight (KG) | 350 | 600 | 700 |
Dimensions
- RF-2A: 2000*1300*2100 mm
- RF-4A: 2000*1300*2100 mm
- RF-6A: 2200*1400*2200 mm
Operational Parameters
Filling Accuracy
1 %
Accuracy
- Air Requirements
- 0.6-0.7 KG/CM2 (Pressure); 1.2 MPA (Consumption)
Container Compatibility
Bottle Specifications
80 mm
Min Height
180 mm
Max Height
60 mm
Min Width
100 mm
Max Width
Features
- Key Capabilities
- Gravity FillingNon-viscous Liquid CompatibleLow-viscous Liquid CompatibleBubble-free FillingAnti-leakage DesignQuick ChangeoverPrecise Alignment
