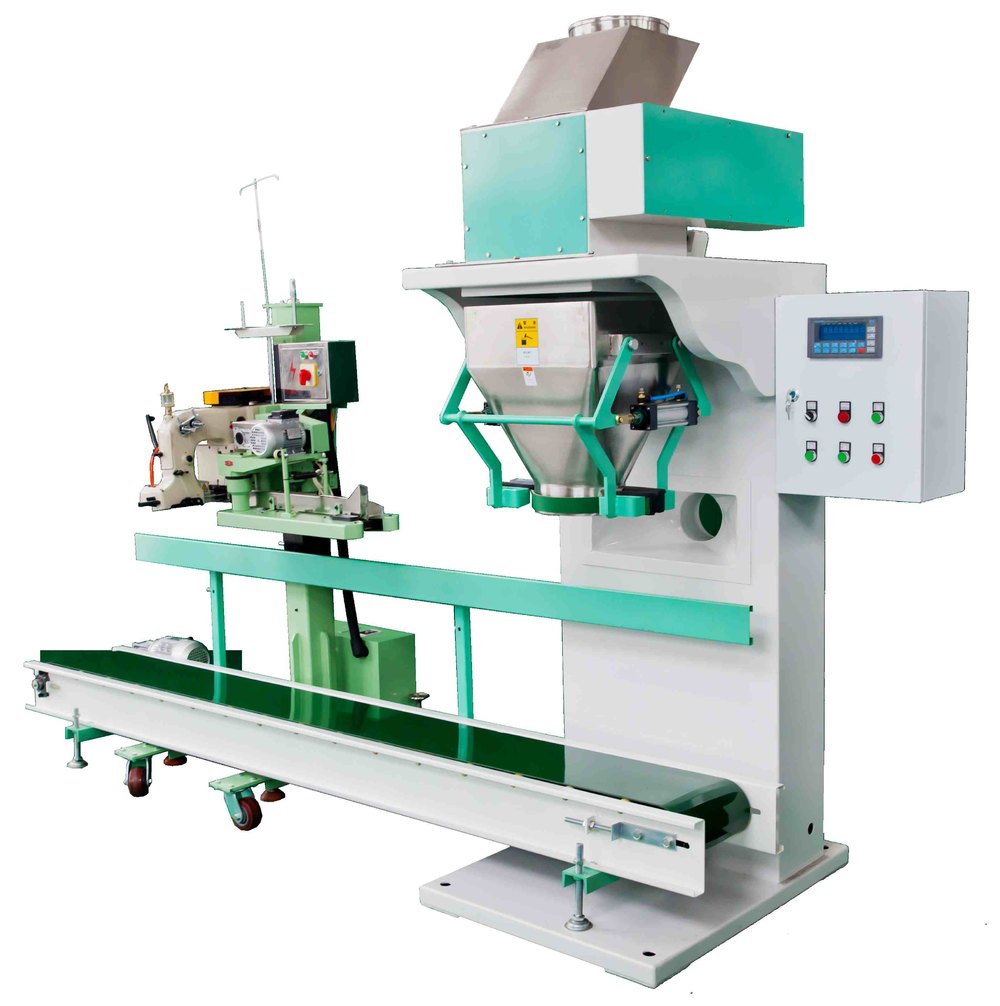

Automatic Granule Filling and Packing Machine
This automatic machine is designed for filling and packing granules with high precision and efficiency. It is suitable for industrial applications requiring accurate weight control, such as seeds and color master batches.
Technical Specifications
Overview
High-Efficiency Granule Packing Solution
This automatic granule filling and packing machine is designed for high-precision quantitative packaging of various granular materials, including seeds, color master batches, rubber granules, and fertilizers. The system streamlines the packaging process through a computerized control interface, allowing for accurate weight settings and automated bag handling. By combining automatic weighing, filling, and conveyor transport with semi-automatic sewing, this machine significantly enhances production efficiency for industrial bagging operations.
Performance & Capacity
Performance Metrics
- Weighing Range
- 25-50 kg/bag
Technical Specifications
Construction Materials
| Component | Material |
|---|---|
| Product Contact Parts | SUS304 Stainless Steel |
| Structural Frame | Carbon Steel |
- Power Supply Options
- 380V/50Hz/3 phase220V/60Hz/1 phase
- Power Consumption
- 3 KW
- Air Resource
- 0.4-0.6 Mpa
Dimensions & Logistics
- Machine Dimensions
- 1350 x 750 x 2800 mm
- Conveyor Belt Dimensions
- 3000 x 400 mm
- Reference Weight
- 400 kg
Operational Workflow
Workflow Sequence
- Manual Bag Placing
- Automatic Filling
- Automatic Weighing
- Automatic Bag Unloading
- Automatic Bag Conveying
- Semi-automatic Bag Sewing
