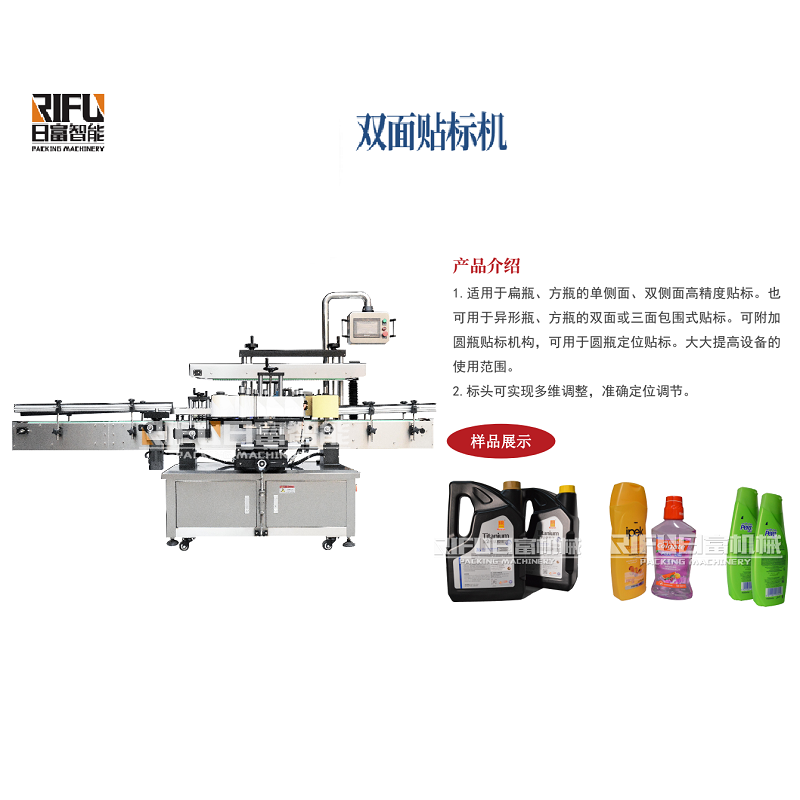

Automatic Double-Sided Labeling Machine
This automatic labeling machine applies labels to products on two sides. Its stainless steel construction ensures durability and hygiene for use in the food, beverage, pharmaceutical, and cosmetics industries.
Technical Specifications
Overview
High-Performance Double-Sided Labeling Solution
The LT500 plane labeling machine is constructed from high-grade stainless steel and aluminum alloy, ensuring durability and hygiene for industrial environments. Equipped with high-speed servo motors and advanced photoelectric control systems from Germany, Japan, and Taiwan, it offers exceptional labeling accuracy and throughput. The system features a PLC-based human-machine interface, providing simple and clear operation for efficient production management.
Performance Metrics
Output Speed
350 PCS/min
Max Speed
- Labeling Precision
- ±1mm
Technical Specifications
- Machine Dimensions
- 2800mm (L) x 1650mm (W) x 1500mm (H)
- Machine Weight
- 450 kg
- Power Supply
- 220V 50/60HZ 3.5KW
- Printer Air Pressure
- 5 kg/cm²
Labeling Capabilities
Label Dimensions
| Parameter | Range |
|---|---|
| Label Height | 15-140mm |
| Label Length | 25-300mm |
Compatible Object Size
| Dimension | Range |
|---|---|
| Height | 30-350mm |
| Thickness | 20-120mm |
Roll Specifications
- Inside Diameter: 76mm
- Outside Diameter: 420mm
Construction
- Construction Materials
- Stainless SteelAluminum Alloy
