Automatic Desiccant Packet Filling Machine

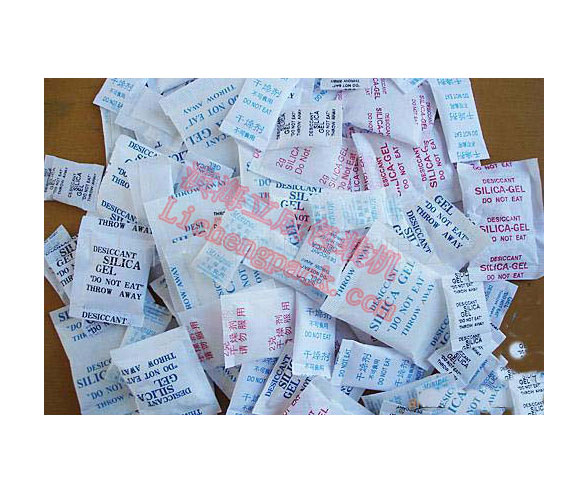

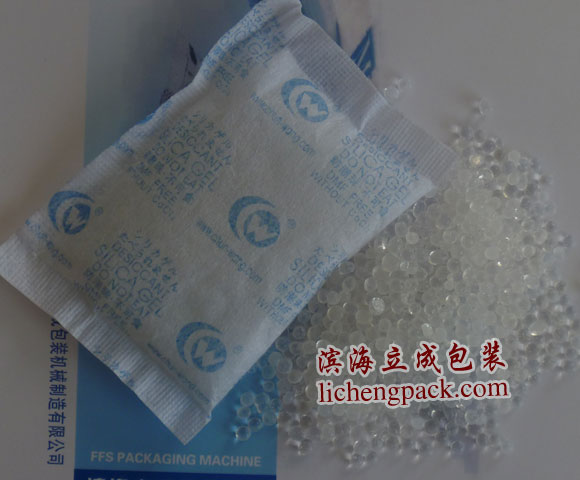

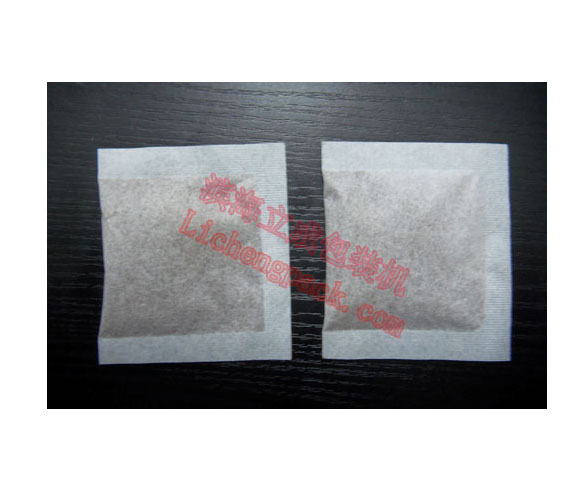

This automatic granular packaging machine is designed for filling non-sticky, bulk materials. It is suitable for producing desiccant packets using materials like silica gel.
Technical Specifications
Product Overview
Automated Desiccant Packaging Solution
This automatic granular packaging machine is designed for high-efficiency production of desiccant packets and similar non-sticky, bulk materials. The system integrates bag making, measuring, filling, sealing, cutting, and coding into a single continuous process. Engineered for 24-hour operation, it offers high-speed performance and precise accuracy for demanding industrial packaging environments.
Performance Metrics
Packaging Speed
100 bags/min
Max Speed
50 bags/min
Min Speed
- Filling Accuracy
- 3 %
Technical Specifications
- Measurement Range
- 1-40ml
- Sealing Method
- Three-side sealing
Bag Dimensions
Bag Size Range
| Dimension | Range |
|---|---|
| Length | 55-110mm |
| Width | 30-80mm |
Compatibility & Materials
- Compatible Packing Materials
- PET/plated AL/PEPET/PENYLON
Physical Attributes
- Machine Dimensions
- 600 x 790 x 1780 mm
- Total Weight
- 350 kg
Electrical Requirements
Power Requirements
- Voltage: 220V
- Frequency: 50HZ
- Power Consumption: 1.5KW
