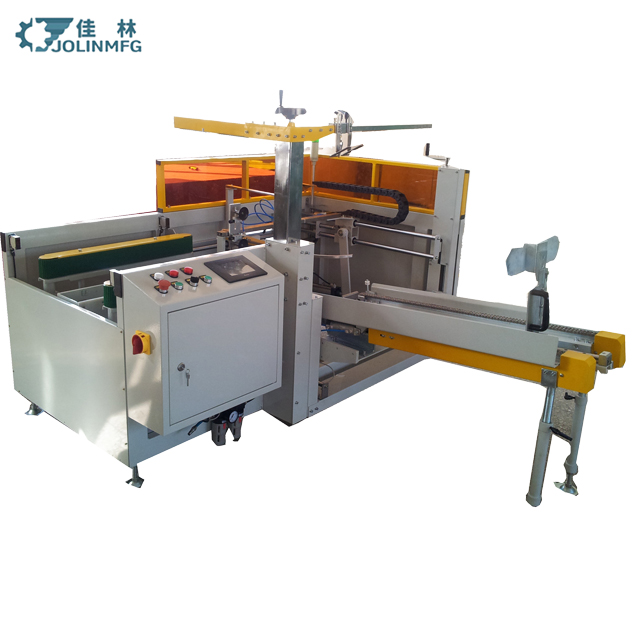

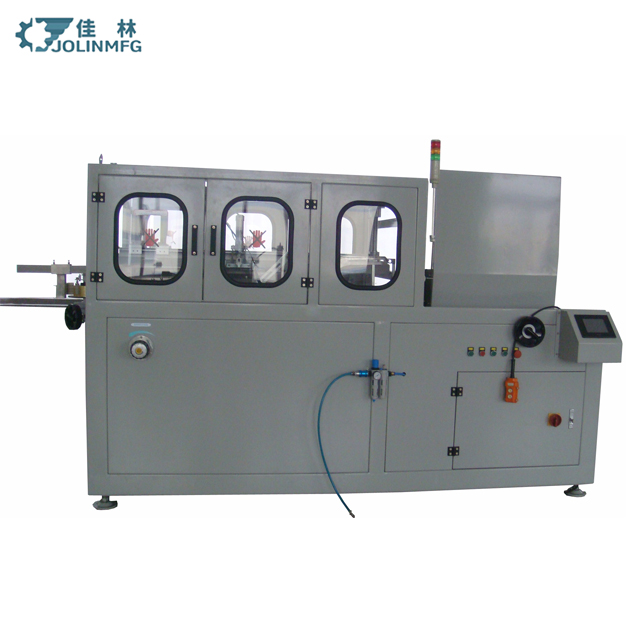

Automatic Carton Erector Machine
This automatic carton erector machine efficiently forms and seals the bottom flaps of cardboard boxes. It prepares cartons for filling in packaging lines, increasing throughput and reducing labor costs.
Technical Specifications
Overview
High-Speed Carton Erector
This automatic carton erector is engineered for high-efficiency packaging lines, streamlining the process of picking, erecting, folding, and sealing bottom flaps. Designed with versatility in mind, it accommodates various carton sizes with quick changeover times of just 2-3 minutes. Built for durability and performance, this machine features a robust frame and high-quality pneumatic and electronic components to ensure consistent, reliable operation in demanding industrial environments.
Performance
Running Speed
720 ctns/h
Max Speed
- Compatible Carton Size
- L 200-450mm x W 150-400mm x H 100-350mm
Technical Specifications
- Tape Widths
- 48mm60mm75mm
- Equipment Dimensions
- L 2000mm x W 1900mm x H 1200mm
- Min Table Height
- 650 mm
- Machine Weight
- 350 kg
Components & Control
Control System Components
| Component | Specification |
|---|---|
| PLC | Siemens or Mitsubishi |
| Contractor & Switch | Schneider |
| Sensors | Omron |
| Touch Screen | 5.7 inch |
- Pneumatic Requirement
- 5 to 6 kg/cm2 (150Ne/min)
- Power Supply
- 220/380V, single phase, 50/60Hz
