Technical Specifications
Overview

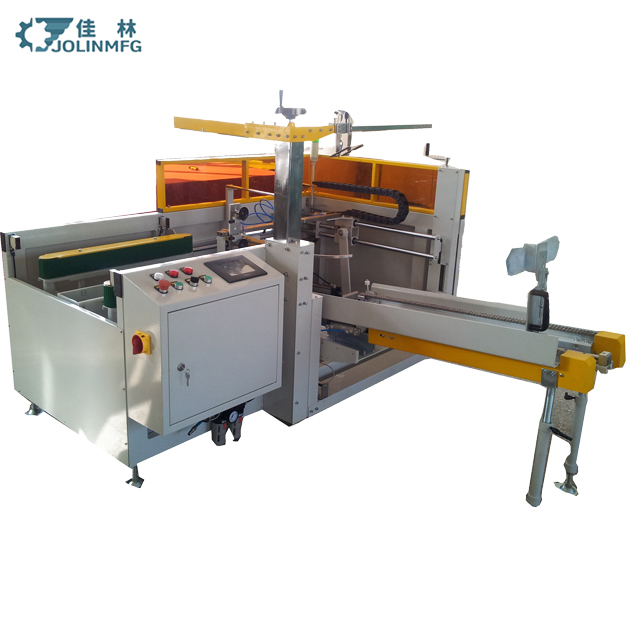

High-Efficiency Automatic Carton Erecting
This automatic carton erector is designed to streamline end-of-line packaging by automating the process of erecting, folding, and sealing carton boxes. It features a vertical carton storage and loading mechanism that allows for easy and fast supplements at any time, significantly reducing labor costs. The machine is built with precision-engineered, durable, and lightweight parts to ensure high-speed performance and consistent box formation for high-volume industrial applications.
Key Features
- Vertical carton storage for continuous loading
- Quick size modulation in 2-3 minutes
- Precision-engineered durable parts
- High-speed automated operation
- Vacuum pick-up system for precise handling
Performance
Key Performance Metrics
720 ctns/h
Max Running Speed
3 min
Changeover Time
350 kg
Machine Weight
Technical Specifications

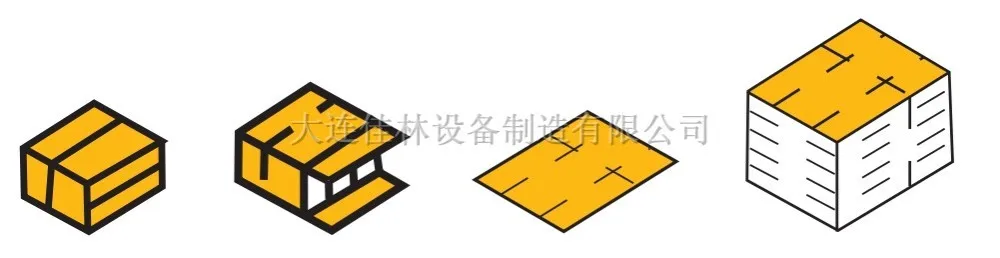

Supported Carton Sizes
| Dimension | Minimum (mm) | Maximum (mm) |
|---|---|---|
| Length | 200 | 450 |
| Width | 150 | 400 |
| Height | 100 | 350 |
- Table Height
- 650 mm
- Equipment Dimensions (L*W*H)
- 2000mm * 1900mm * 1200mm
Components & Build
Premium Components
- PLC: Siemens (Germany) or Mitsubishi (Japan)
- Pneumatic Cylinder: AIRTAC
- Electrical Components: Schneider (Contractor & Switch)
- Sensors: Omron Optical-electronic sensors
- Touch Screen: 5.7 inch interface
- Machine Surface
- Plastic spraying processing
Utility Requirements
- Power Supply
- 220/380V, Single Phase, 50/60Hz (Customizable)
- Pneumatic Pressure
- 5 to 6 kg/cm2
- Air Consumption
- 150Ne/min
Packaging Compatibility
- Compatible Tape Widths
- 48mm60mm75mm
