Product Overview
High-Efficiency Bottling Solutions

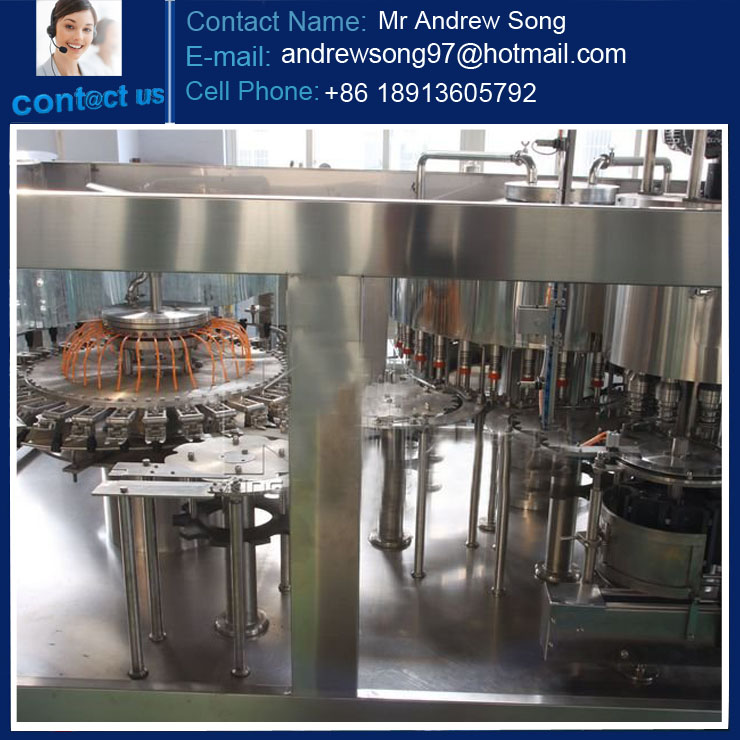

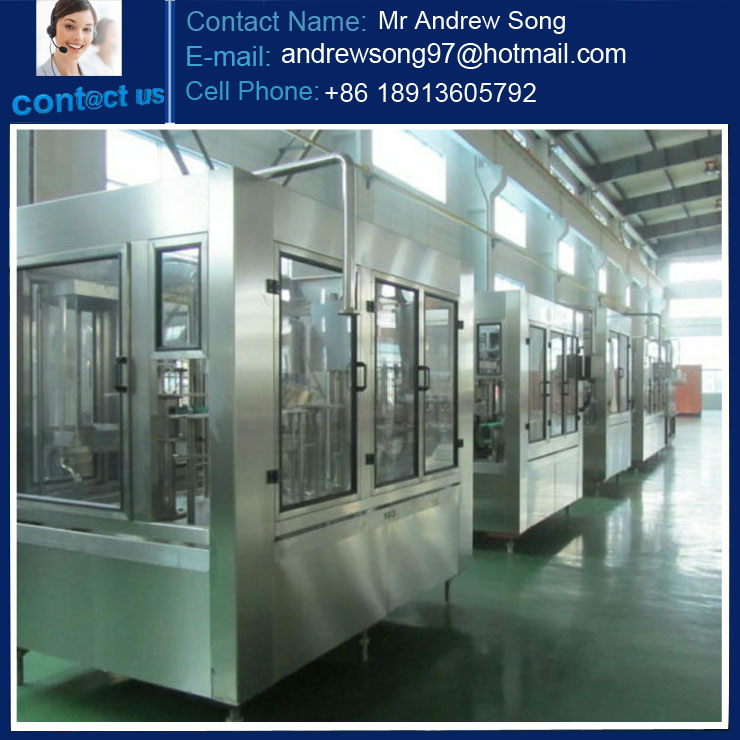

The CGF series automatic water filling machine is a versatile, high-speed solution designed for filling mineral or purified water into PET, plastic, and glass bottles. Utilizing advanced gravity or micro-pressure filling technology, this system ensures faster, more stable production rates ranging from 2,000 to 24,000 bottles per hour. Equipped with a Mitsubishi PLC controller and photoelectric sensors, the machine offers a high degree of automation and reliability for modern beverage production lines.
Technical Specifications
Bottle Size Range
200 ml
Min Volume
2,000 ml
Max Volume
- Filling Method
- Gravity or micro-pressure filling
- Control System
- Mitsubishi PLCInverter ControlPhotoelectric Sensor
- Compatible Bottle Types
- PETPlasticGlass
Performance Data
Model Specifications
| Model | Capacity (500ml) | Washing Heads | Filling Heads | Capping Heads | Weight | Motor Power |
|---|---|---|---|---|---|---|
| CGF14-12-4 | 4000 BPH | 14 | 12 | 4 | 2500kg | 2.2kw |
| CGF16-16-5 | 6000 BPH | 16 | 16 | 5 | 3000kg | 2.5kw |
| CGF18-18-6 | 8000 BPH | 18 | 18 | 6 | 4000kg | 3kw |
| CGF24-24-8 | 12000 BPH | 24 | 24 | 8 | 4500kg | 3kw |
| CGF32-32-10 | 15000 BPH | 32 | 32 | 10 | 6000kg | 5.5kw |
