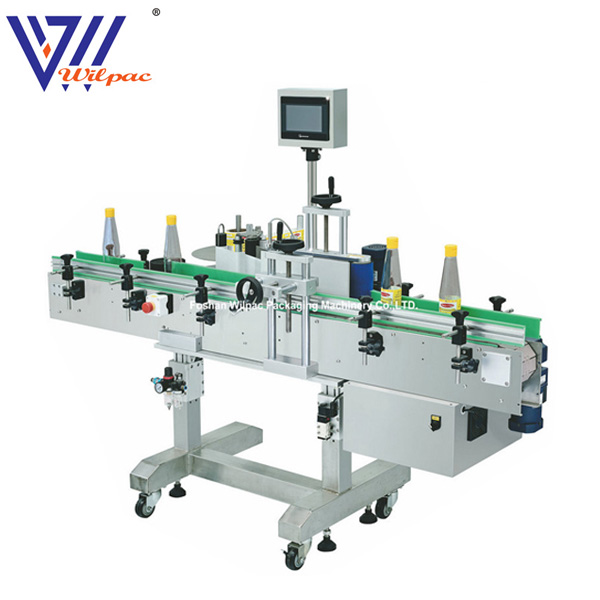

Automatic Bottle Labeling Machine
This automatic bottle labeling machine applies labels to cylindrical or shaped bottles on a conveyor line. It features adjustable labeling heads, a touchscreen control panel, and stainless steel construction.
Technical Specifications
Overview
High-Efficiency Bottle Labeling Solution
This automatic labeling machine is engineered for precision and reliability in high-volume production environments. Constructed with durable #304 stainless steel and anodized aluminum, it ensures long-term hygiene and structural integrity. Featuring advanced PLC control and a user-friendly man-machine interface, it provides seamless operation for food, pharmaceutical, and chemical packaging lines.
Technical Specifications
Labeling Speed
25 m/min
Max Speed
- Labeling Precision
- 1 mm
- Power Requirements
- 600W / 220V / 50(60)Hz
- Machine Dimensions (L*W*H)
- 2100 * 1000 * 1300 mm
- Machine Weight
- 130 Kg
Labeling Capabilities
Label Roll Specifications
| Parameter | Dimension |
|---|---|
| Inner Paper Roll Diameter | 76 mm |
| Outer Paper Roll Diameter | < 360 mm |
| Bottom Paper Width | 20 - 130 mm |
- Applicable Bottle Diameter
- 20 - 110 mm
Construction & Design
- Construction Materials
- #304 Stainless SteelAnodized Aluminum Alloy
- Control System
- PLC control with man-machine interface
- Conveyor Belt Width
- 101.6 mm
Applications
Suitable Industries
FoodPharmaceuticalCosmeticsDaily Chemicals
