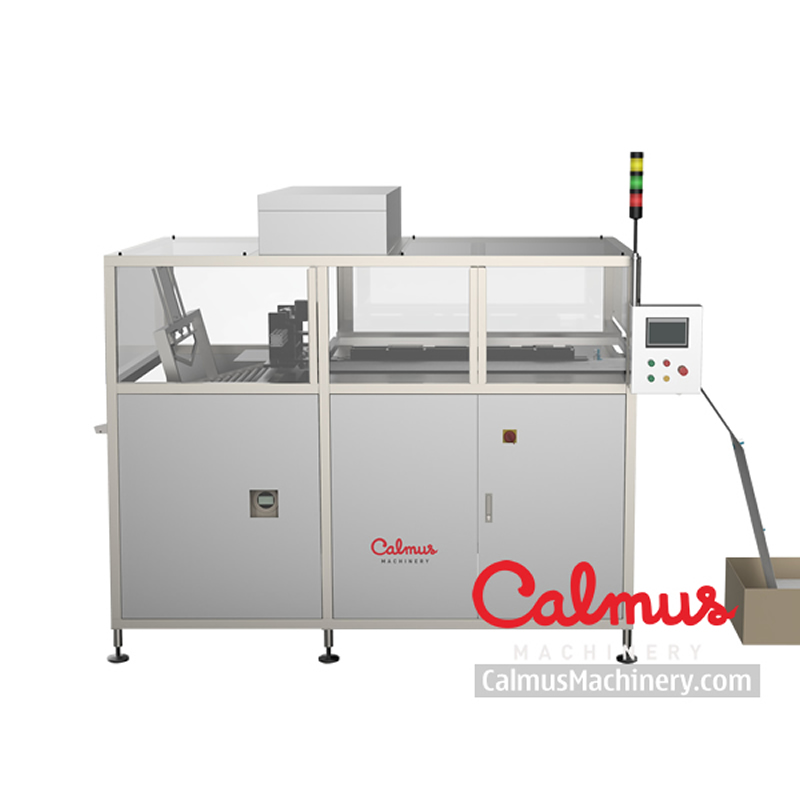

Automatic Bag-in-Box Liquid Filling Machine
This is an automatic filling machine for bag-in-box packaging. It is designed for filling liquids into 2-25L spouted bags.
Technical Specifications
Overview
Fully-Automatic Bag-in-Box Solution
This fully-automatic filling machine is engineered for high-efficiency packaging of liquids into spouted bags. By utilizing advanced PLC and touch-screen control systems, the machine manages the entire process—from bag feeding and decapping to filling, nitrogen injection, and capping—without requiring manual intervention. Designed with hygiene in mind, it features Clean-in-Place (CIP) functionality and high-grade stainless steel construction for reliable, food-safe operation.
Technical Specifications
- Power Consumption
- 1 kW
- Compressed Air Requirement
- 6-8 bar, 500 NL/min
Performance
Filling Capacity
510 bags/hour
5 Litre Bags
400 bags/hour
10 Litre Bags
270 bags/hour
20 Litre Bags
Compatibility
- Compatible Bag Types
- WEB-FedPre-cut continuous module2-25 Litre capacity
Construction
Materials Used
- Grade 304 stainless steel (body)
- 316L stainless steel (fluid-contact parts)
Features
Advanced Features
Fully-automatic operationPLC & Touch-screen controlCIP (Clean-in-Place)Quantitative fillingNitrogen injection optionVacuumization option
