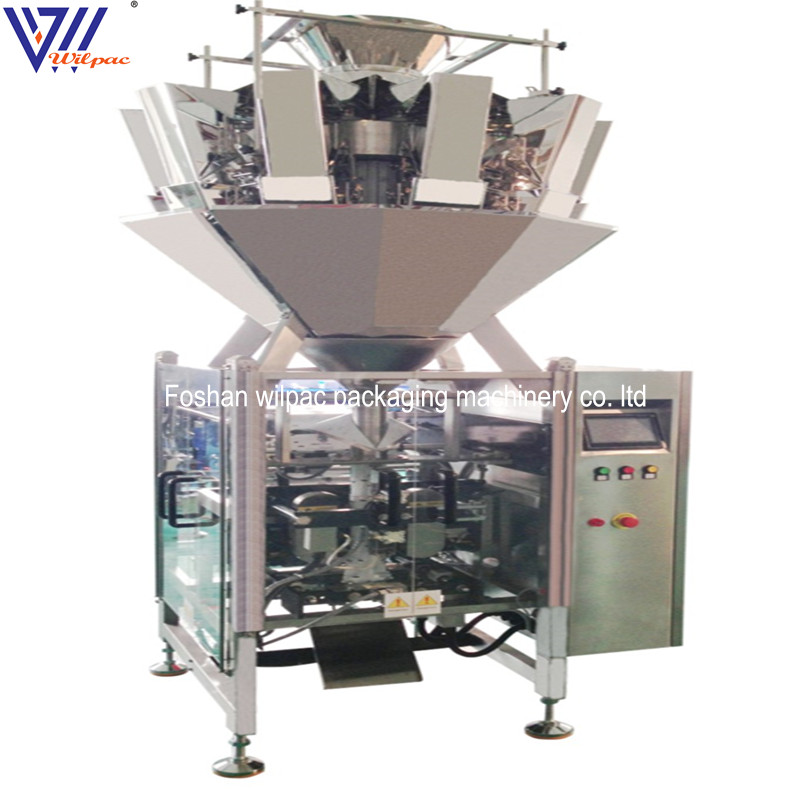

Automated Weighing and Packing Machine
This 2-in-1 machine integrates weighing and packing functions for automated packaging. It uses a multi-head weigher and a vertical form-fill-seal (VFFS) system to form, fill, and seal bags.
Technical Specifications
Overview
Economic 2-in-1 Weighing and Packaging Solution
This automated system integrates multi-head weighing and vertical packaging into a single, compact unit, designed for high efficiency and precision. Featuring advanced PLC control and dual servo motor technology, it ensures accurate product delivery and high-speed operation. It is an ideal solution for packaging various granular materials, including snacks, coffee beans, grains, and small hardware, offering flexibility for different bag types and film materials.
Performance Metrics
Key Performance Metrics
70 WPM
Max Weighing Speed
60 bags/min
Max Packing Speed
1,000 g
Max Single Dump Capacity
Technical Specifications
- Dimensions
- 1503 x 1193 x 2459 mm (L x W x H)
- Machine Weight
- 600 kg
- Power Requirements
- 4.6KW / 220V / 50(60)Hz
- Gas Requirements
- 0.6 MPa pressure, 0.6 m³/min consumption
Operational Capabilities
Bag Specifications
| Parameter | Range |
|---|---|
| Film Width | 140 - 460 mm |
| Bag Size (L x W) | 60-300 x 60-220 mm |
| Film Thickness | 0.04 - 0.15 mm |
Suitable Packing Materials
- Snack food
- Frozen food
- Coffee beans
- Oatmeal
- Granulated sugar
- Salt
- Rice
- Pet food
- Small hardware
- Compatible Bag Types
- Pillow bagGusset bagSeal type bag
System Features
System Features
PLC ControlMan-machine InterfaceDouble Servo MotorOptical Tracking2-in-1 Integration
