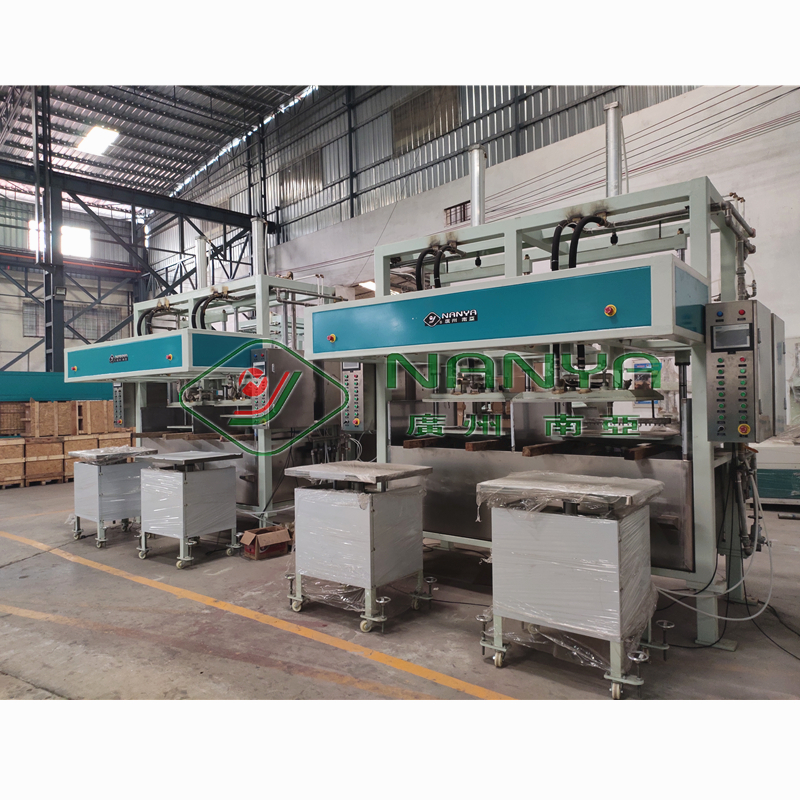

Automated Pulp Tray Forming and Packaging System
This automated system forms and packages pulp trays for protective packaging. The machine integrates molding, drying, and shaping processes to create custom-fit trays.
Technical Specifications
System Overview
Automated Pulp Tray Forming Solution
This automated pulp tray forming and packaging system is designed for high-efficiency production of protective packaging using waste paper materials. The system utilizes a reciprocating vacuum forming method with double working stations to ensure consistent output quality and structural integrity. Built for industrial-scale operations, it offers precise control over the cycle time and molding dimensions to support a wide range of custom tray designs.
Technical Specifications
- Machine Model
- CY010
- Forming Process
- Reciprocating Vacuum
- Working Stations
- 2
- Mould Plate Dimensions
- 800*600*2mm
Operational Performance
Standard Cycle Time
12 s
Minimum Cycle Time
15 s
Maximum Cycle Time
- Maximum Product Height
- 150 mm
- Machine Weight
- 2 Tons
Materials and Application
- Compatible Raw Materials
- Waste CartonNewspaperBooksWaste Paper
- Primary Application
- Recyclable Industrial Package
