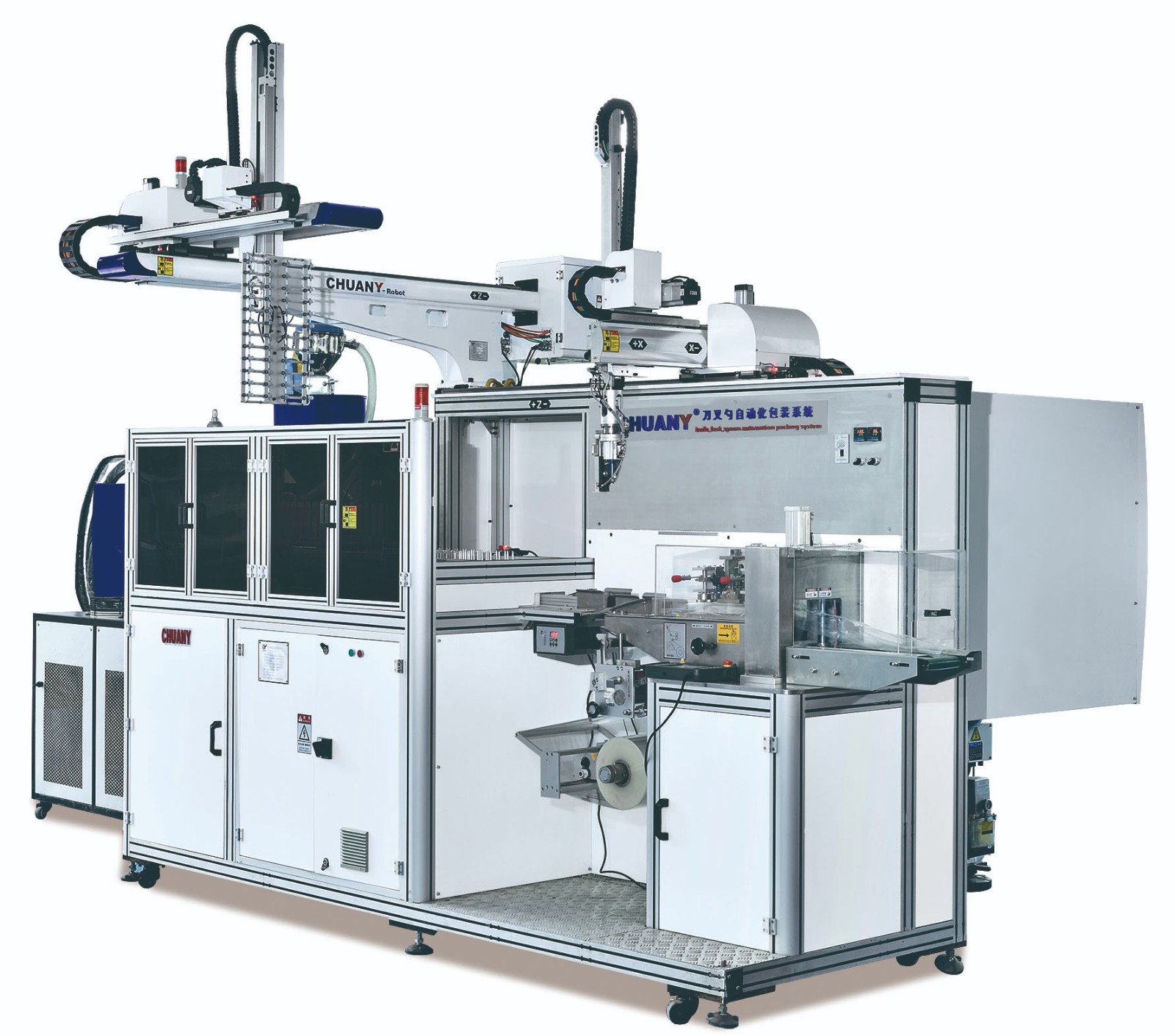

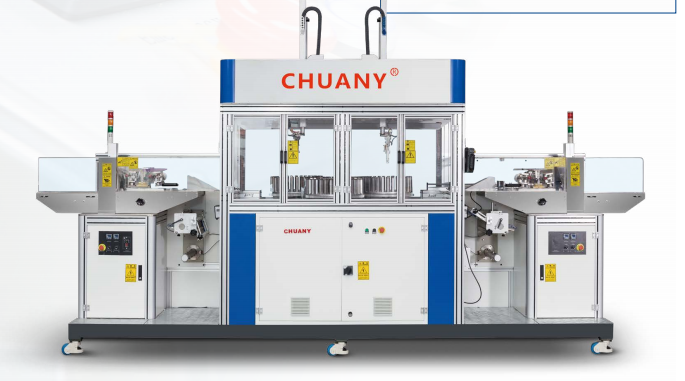

Automated Plastic Cutlery Packaging System
This automated system is designed for high-speed packaging of plastic cutlery. It features a robotic arm for precise product handling, ensuring efficient and consistent wrapping.
Technical Specifications
System Overview
Automated Packaging Efficiency
This automated packaging system is designed for high-speed, hygienic processing of plastic cutlery. By integrating a pick-out robot, transfer fixture, and packing machine, it ensures a fully automated workflow that eliminates manual handling and secondary pollution. The system is highly adaptable, supporting both round and square molds with adjustable settings to maximize production competitiveness.
Performance Metrics
Maximum Packing Speed
200 pcs/min
Speed
- Quality Control
- Yes
Packaging Film Specifications
- Max Film Width
- 250 mm
- Film Thickness
- 0.018 - 0.035 mm
- Max Film Diameter
- 400 mm
- Max Film Length
- 4000 m
- Compatible Materials
- OPPBOPPCPP
System Features
Key Automation Features
- High-speed pick-out robot
- Individual controller for robot and packing unit
- Fiber optic inspection to prevent empty packaging
- Fully automated process with no manual contact
- Optional servo conveyor belt for sectional packing and counting
Mold Compatibility
Round MoldSquare Mold
