Automated Flat Surface Label Applicator

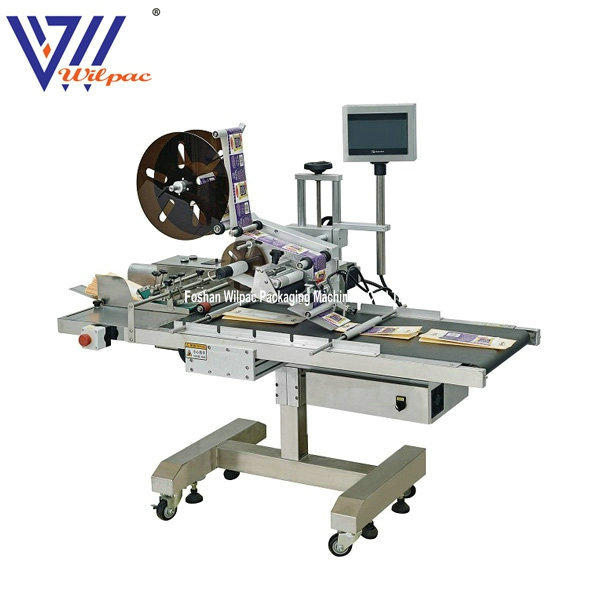

This automated system applies labels to flat products like cards and envelopes. It features a conveyor, label applicator, and control panel to ensure accurate and consistent labeling.
Technical Specifications
Product Overview
Automated Flat Surface Labeling Solution
This automated paging labeling machine is engineered for the precise application of labels onto a variety of flat products, including cartons, plastic bags, and paper cards. Featuring advanced PLC control and a user-friendly man-machine interface, it ensures consistent performance and ease of maintenance. The system offers versatile positioning adjustments for front, rear, and vertical labeling, making it an ideal solution for optimizing packaging efficiency in industries such as food, cosmetics, and logistics.
Technical Performance
Paging Speed
30 m/min
Max Paging Speed
Labeling Speed
30 m/min
Max Labeling Speed
Product Compatibility
Compatible Product Dimensions
| Dimension | Range |
|---|---|
| Thickness | 0.2 - 5 mm |
| Width | 70 - 400 mm |
| Length | 70 - 600 mm |
Label Specifications
Label Roll Requirements
- Inner paper roll diameter: 76 mm
- Outer paper roll diameter: < 360 mm
- Bottom paper width: 20 - 130 mm
Operational Features
Control Interface
PLC ControlMan-Machine Interface
- Labeling Positions
- FrontRearUpDown
- Entrance Stacking Height
- 100 mm
