Technical Specifications
Product Overview
Advanced Circuit Protection

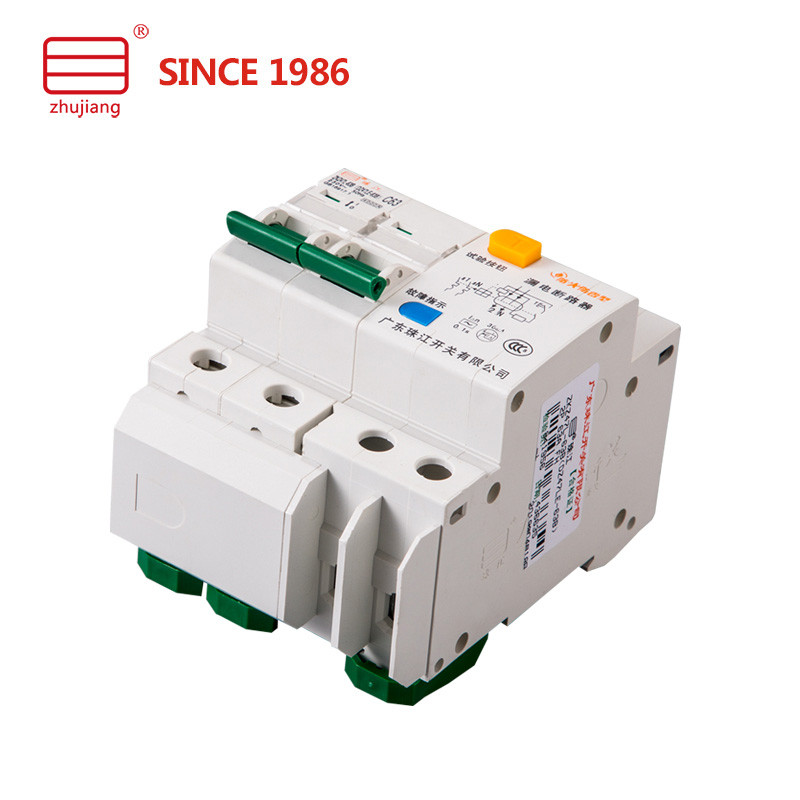

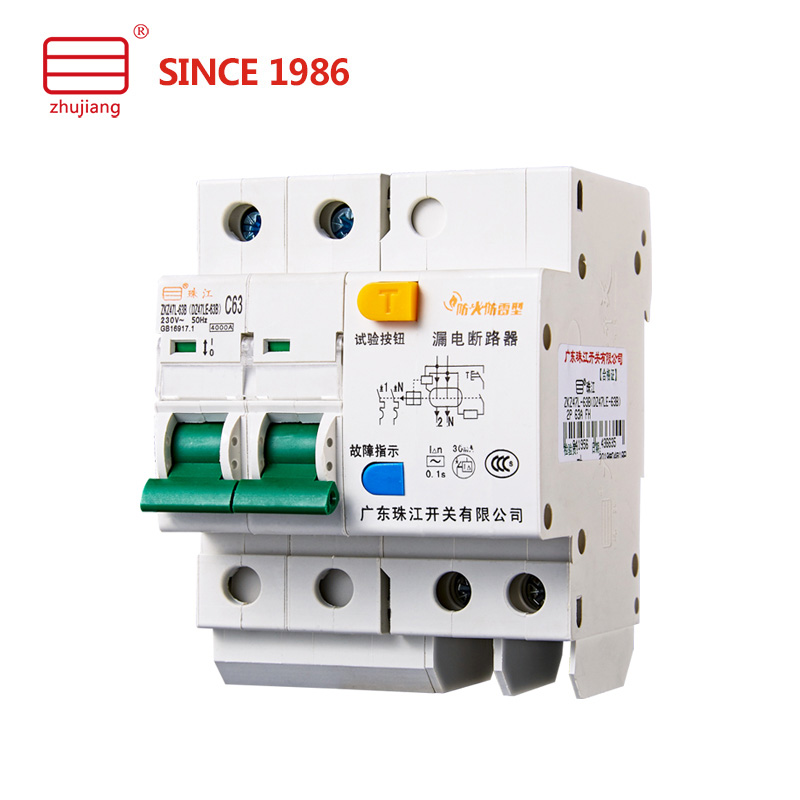

This versatile circuit breaker combines miniature circuit breaker (MCB) functionality with residual current device (RCD) protection in a single compact unit. It offers comprehensive security for electrical systems by detecting arc faults, overloads, short circuits, and earth leakage currents. Designed for robustness, it incorporates high-quality materials to ensure longevity and reliable performance in residential, commercial, and industrial settings.

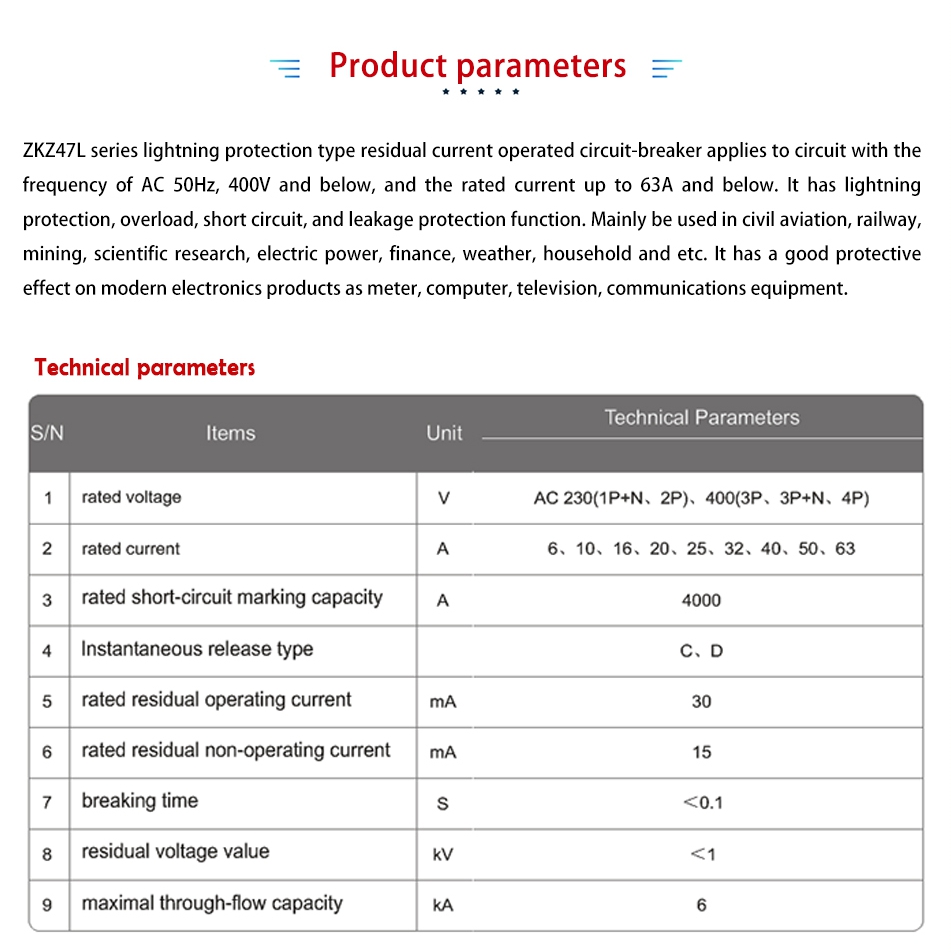

Technical Parameters
Performance Metrics
4,000 A
Short-Circuit Breaking Capacity
30 mA
Rated Residual Operating Current
0.1 S
Max Breaking Time
6 kA
Max Through-Flow Capacity
- Available Rated Currents
- 6A10A16A20A25A32A40A50A63A
- Operating Voltage
- AC 230V (1P+N, 2P) / AC 400V (3P, 3P+N, 4P)

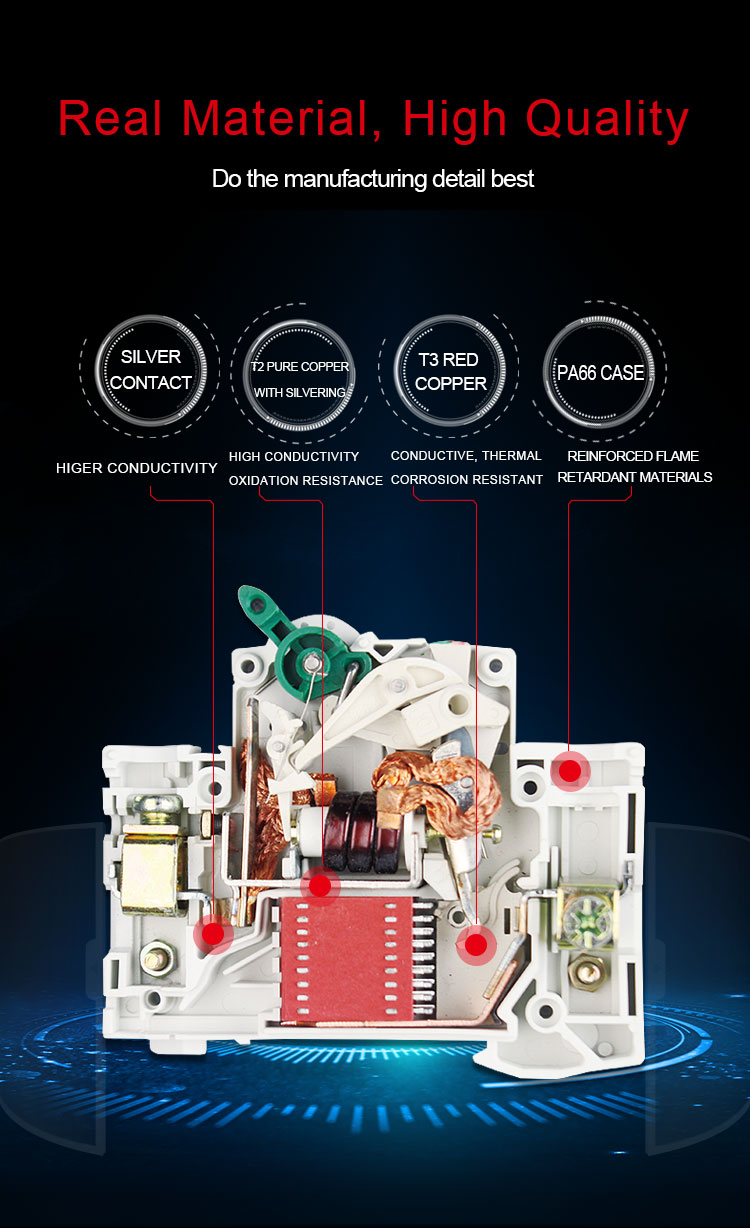

Construction & Materials
Material Specifications
- High-conductivity silver contacts
- T2 pure copper with silvering for oxidation resistance
- T3 red copper for thermal and corrosion resistance
- Reinforced PA66 flame-retardant case
Applications
- Suitable Environments
- ResidentialCommercialIndustrialCivil AviationRailwayMiningScientific ResearchElectric Power
