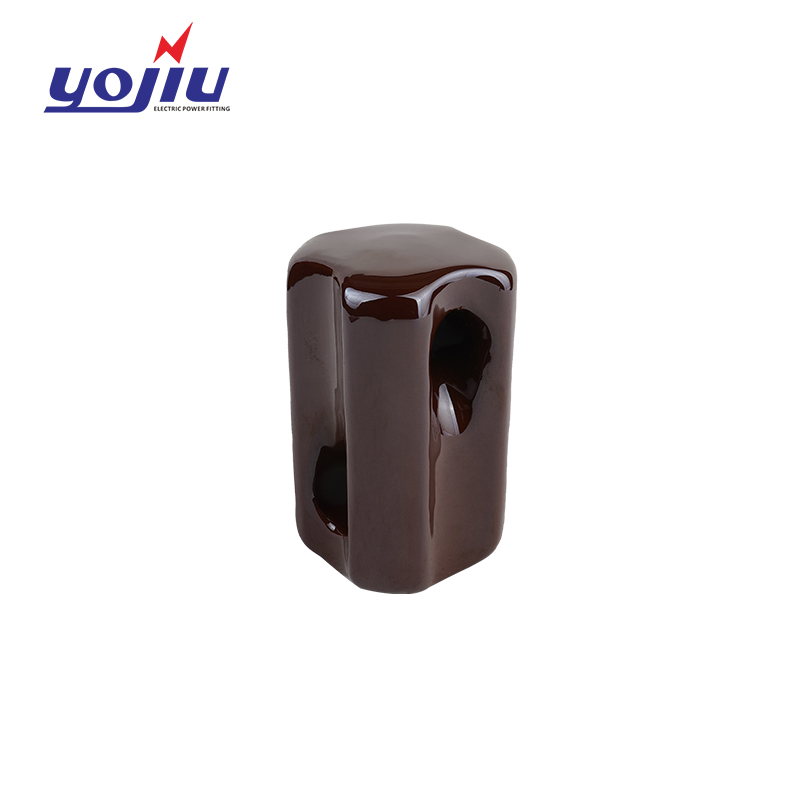

ANSI 54 Series Porcelain Stay Strain Insulator
This porcelain stay strain insulator is designed for high voltage electrical power transmission and distribution systems. It provides reliable insulation and mechanical strength for stay wire applications.
Technical Specifications
Overview
High-Performance Electrical Insulation
The ANSI 54 Series Porcelain Stay Strain Insulator is engineered for high-voltage electrical power transmission and distribution systems. Constructed from high-quality porcelain, it provides exceptional dielectric properties and mechanical strength to support stay and guy wires. Designed to withstand harsh environmental conditions, this insulator ensures stable performance and prevents current leakage in utility networks.
Technical Standards
- Compliance Standards
- ANSI 54 SeriesANSI Compliant
Key Performance Metrics
Performance Highlights
1 Year
Warranty Period
Material & Construction
Construction Features
- Robust mechanical design
- Weather-resistant porcelain body
- Contamination resistant
- High dielectric strength
- Primary Material
- High-quality Porcelain
Applications
Recommended Applications
- High voltage transmission lines
- Distribution networks
- Substations
- Stay wire and guy wire support
- Utility networks (Cable and Fiber Optic)
Quality & Certification
Product Certifications
CEISO 9001ULSGSBV
Service Information
- OEM Service
- Yes
- Standard Lead Time
- 15 days
- Free Samples
- Yes
