Product Overview

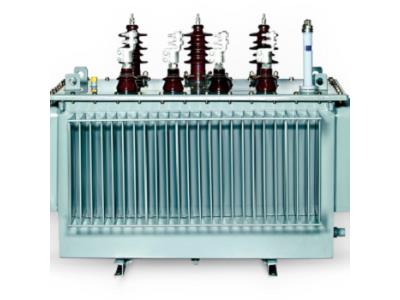

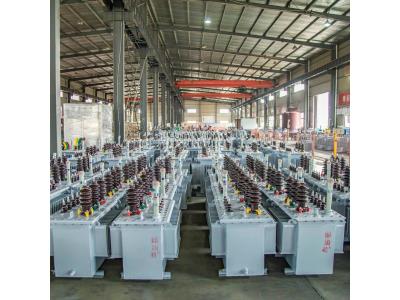

High-Efficiency Amorphous Alloy Transformer

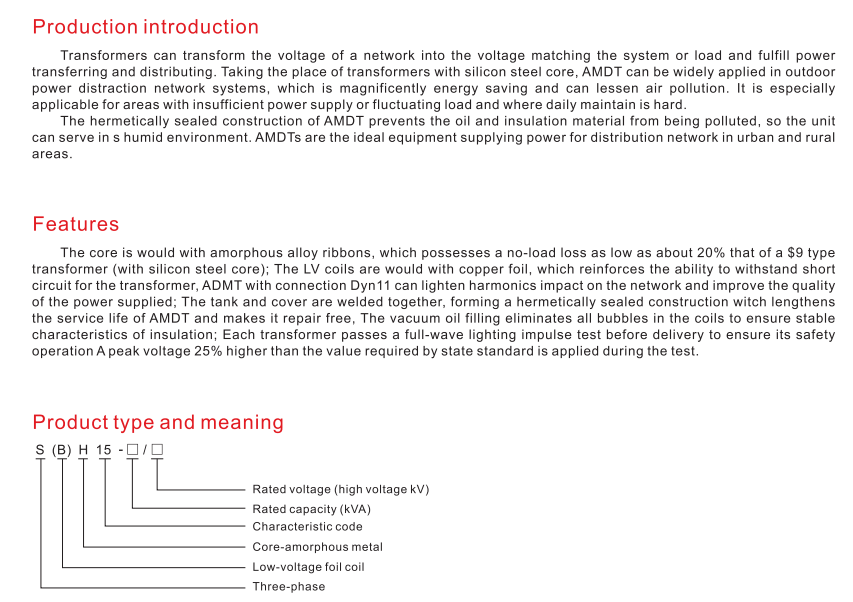

This amorphous alloy oil-immersed transformer is designed for reliable voltage transformation in power distribution networks. By utilizing an advanced amorphous alloy core, it achieves significantly lower no-load losses compared to traditional silicon steel models, promoting energy conservation and reduced environmental impact. Its hermetically sealed, oil-filled construction ensures excellent insulation, long service life, and suitability for humid or challenging outdoor environments.
Technical Specifications
Performance Parameters
| Capacity (kVA) | No-Load Loss (kW) | Load Loss (kW) | Connection |
|---|---|---|---|
| 30 | 0.033 | 0.600 | Dyn11 |
| 100 | 0.075 | 1.500 | Dyn11 |
| 630 | 0.320 | 6.200 | Dyn11 |
| 2500 | 0.900 | 20.20 | Dyn11 |
Key Performance Metrics
50 Hz
Frequency
20 %
No-load loss reduction vs silicon steel
11 kV
Max HV Rating
0.4 kV
LV Rating
Design & Construction
Construction Details
- Hermetically sealed tank and cover to prevent oil pollution
- Copper foil low-voltage coils for high short-circuit resistance
- Vacuum oil filling to eliminate insulation bubbles
- Dyn11 connection to mitigate harmonic impacts
- Quality Standards
- Full-wave lighting impulse testHermetically sealedOutdoor installation rated
