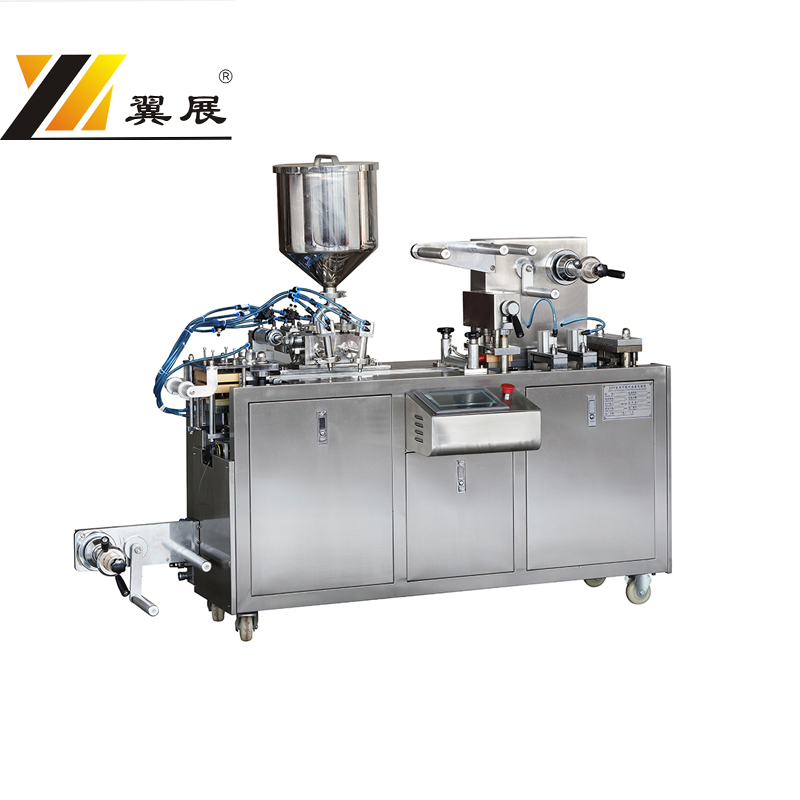

Alu-Plastic Blister Packing Machine
This Alu-Plastic Blister Packing Machine is a flat-plate type designed for efficient and precise blister packaging. It is suitable for use in the pharmaceutical, food, and cosmetic industries.
Technical Specifications
Overview
High-Efficiency Blister Packaging Solution
The DPP-130C/250C is a versatile, flat-plate type Alu-Plastic Blister Packing Machine engineered for precision and reliability. Designed to serve the pharmaceutical, food, and cosmetic industries, it handles various materials including sugar-coated tablets, capsules, and shaped tablets with ease. With its adjustable stroke range and automated feeding systems, it provides a flexible and efficient solution for both small-batch trial production and high-speed industrial packaging.
Key Features
Machine Capabilities
- Automatic material feeding
- Automatic detection and rejection system
- PLC touch screen control interface
- Adjustable stroke range for large blister sizes
- Easy-change moulds with locating pins
- Optional camera rejection system integration
Applications
- Suitable Industries
- PharmaceuticalFood ProcessingHealth Care ProductsCosmetics
Technical Specifications
Technical Parameters Comparison
| Parameter | DPP-130C | DPP-250C |
|---|---|---|
| Punching Frequency (times/min) | 10-30 | 10-50 |
| Max. Punching Area (mm) | 120×80 | 240×120 |
| Standard Plate Size (mm) | 140×95 | 260×140 |
| Max. Forming Depth (mm) | 20 | 20 |
| Total Power (Kw) | 2.2 | 3.5 |
| Machine Weight (Kg) | 800 | 1200 |
- Air Pressure
- 0.7 Mpa
- Power Supply
- 380V 50HZ
