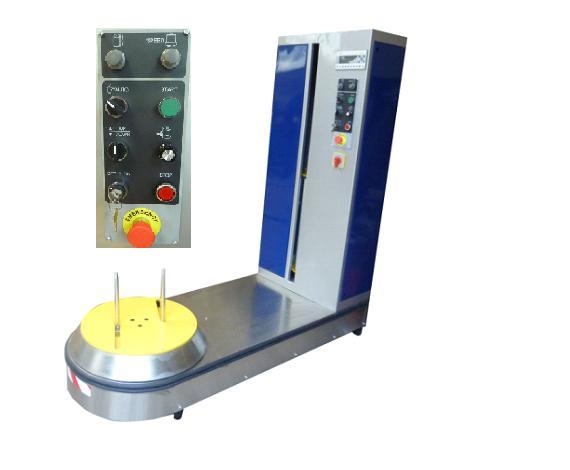

Airport Luggage Wrapping Machine with Powered Pre-Stretch
This automatic luggage wrapping machine is designed to securely wrap luggage with protective film, safeguarding it from damage and tampering during air travel. It features a rotating platform to accommodate various luggage sizes and shapes.
Technical Specifications
Overview
Professional Airport Baggage Protection

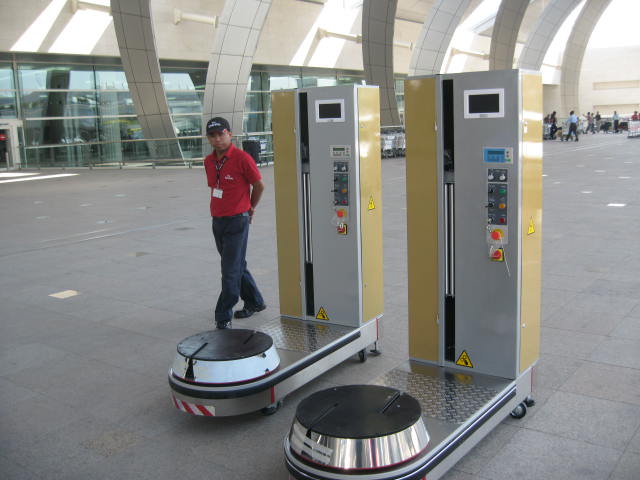

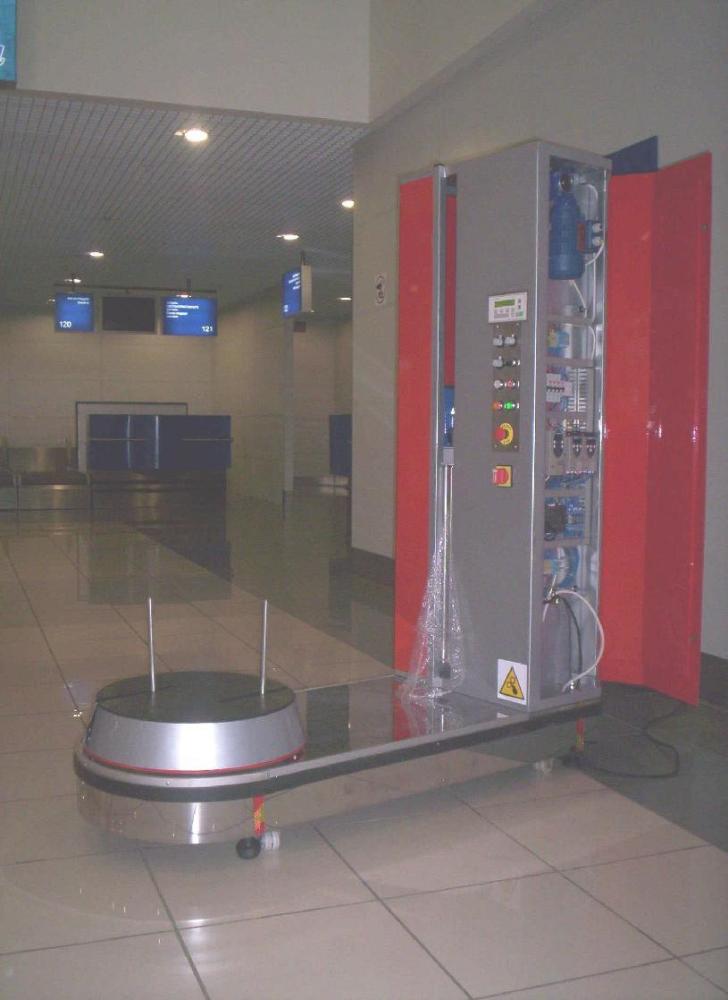

The LP600F-L is a high-performance automatic baggage wrapper designed for airports and transport hubs to enhance luggage security. It provides a robust, waterproof, and tamper-evident stretch film cover that protects against pilferage, smuggling, and physical damage during transit. Featuring powered pre-stretch technology, this machine ensures significant material savings while delivering a professional finish for almost any size of luggage.
Performance Highlights
Key Performance Metrics
250 %
Pre-stretch Ratio
50 RPM
Max Rotary Speed
50 kg
Max Load Capacity
Technical Specifications
Machine Dimensions
| Dimension | Value (mm) |
|---|---|
| Length | 1,600 |
| Width | 600 |
| Height | 1,700 |
- Power Supply
- 220/230V or 110V (50-60 Hz), Single Phase
- Power Consumption
- 0.5 kW
Wrapping Capabilities
Operational Modes
- Automatic Mode for standard luggage
- Manual Mode for fragile or non-standard items
- Adjustable rotation (layers) count
- Vertical folio movement adjustment
- Maximum Baggage Dimensions
- 1300 mm x 1300 mm (W/H)
Material Requirements
Stretch Film Specifications
- Width: 50 cm
- Thickness: 20-23 microns
- Length: 1500 meters
- Core Diameter: 75 mm
- Max Roll Weight: 16 kg
Control & Safety
- Control System
- OMRON (Japan) Micro-electronics with CPU-connected operating panel
- Safety Features
- Emergency StopDoor Power Cut-offSafety Regulation LabelsSmooth Start/Soft Stop
- Integrated Counters
- Three separate counters for baggage items and shift tracking
Certifications
Compliance & Standards
CE MarkedRecyclable Material Usage
