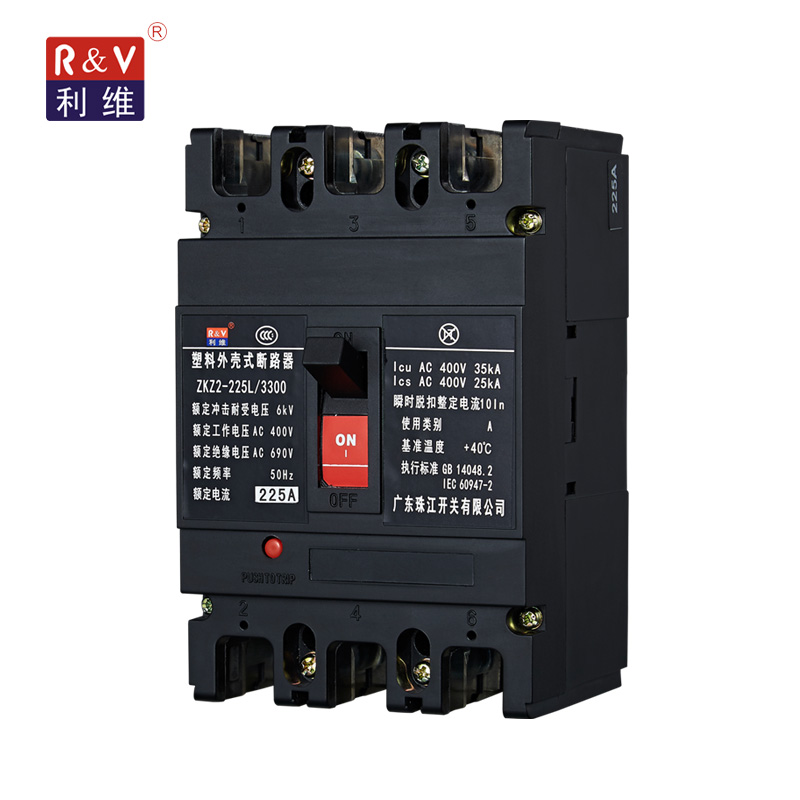

Adjustable Molded Case Circuit Breaker
This molded case circuit breaker is designed for AC power distribution systems. It provides protection against overloads and short circuits with adjustable settings.

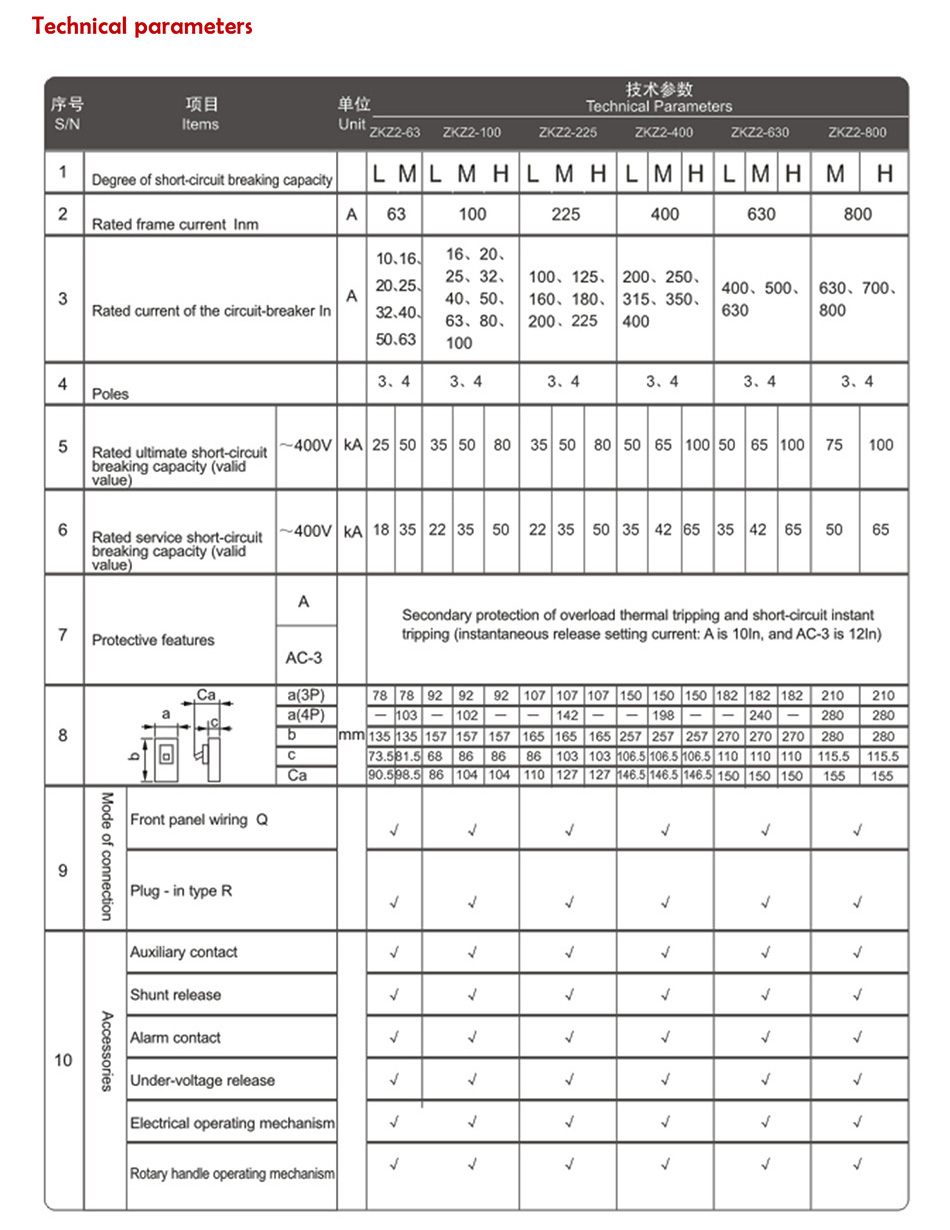

Technical Specifications
Product Overview
Professional Power Distribution
The ZKZ2Z series Molded Case Circuit Breaker (MCCB) is an advanced solution engineered for reliable AC power distribution. Designed for robustness, this unit provides critical protection against overloads and short circuits in professional electrical systems. It features adjustable settings to cater to specific circuit requirements, ensuring operational flexibility and safety in industrial and commercial applications.
Electrical Ratings
- Rated Current
- 225 A
- Operating Voltage
- AC 400V
- Insulation Voltage
- AC 690V
- Rated Frequency
- 50 Hz
Performance Metrics
Key Performance Metrics
35 kA
Ultimate Breaking Capacity (Icu)
25 kA
Service Breaking Capacity (Ics)
6 kV
Impulse Withstand Voltage
- Tripping Characteristics
- 10In Instantaneous TrippingCategory A Utilization
Technical Details
Compliance Standards
- GB 14048.2
- IEC 60947-2
Available Frame Sizes
ZKZ2-63ZKZ2-100ZKZ2-225ZKZ2-400ZKZ2-630ZKZ2-800
- Operating Temperature
- 40 °C
