Technical Specifications
Product Overview

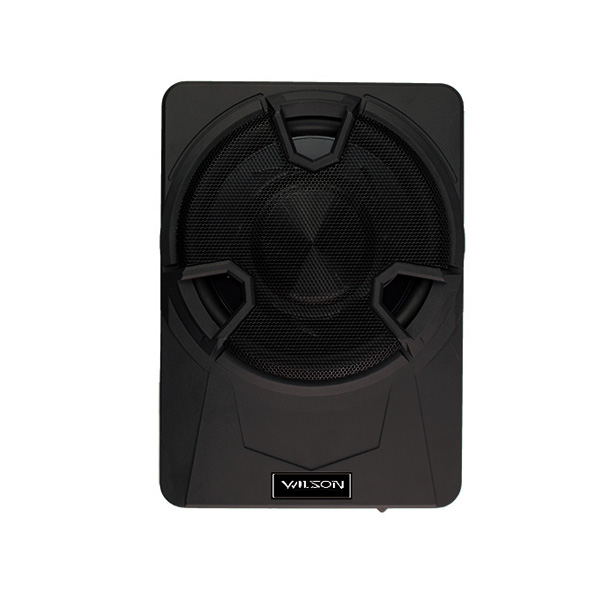

Compact Powerhouse for Automotive Audio
The 10-inch active underseat subwoofer is specifically engineered to provide robust bass performance in vehicles where space is at a premium. Featuring a built-in amplifier and a dual-passive cone design, this unit delivers a clean and deep low-frequency response. It is designed for seamless integration into existing audio systems, offering versatile input sensitivity levels and comprehensive protection circuitry.
Performance Metrics
Performance Highlights
180 W
RMS Power
550 W
Max Power
10 inch
Driver Size
Technical Specifications
Phase Selection
- 0°
- 180°
- Dimensions
- 345 x 245 x 70 mm
- Low Pass Filter
- 35Hz - 150Hz
- Bass Boost
- 0-18dB @ 45Hz
Connectivity & Control
Input Sensitivity
| Source Type | Range |
|---|---|
| High Level | 1.0V - 9.0V |
| Low Level | 0.1V - 6.0V |
Safety & Protection
- Protection Modes
- Overload ProtectionThermal ProtectionShort Circuit Protection
