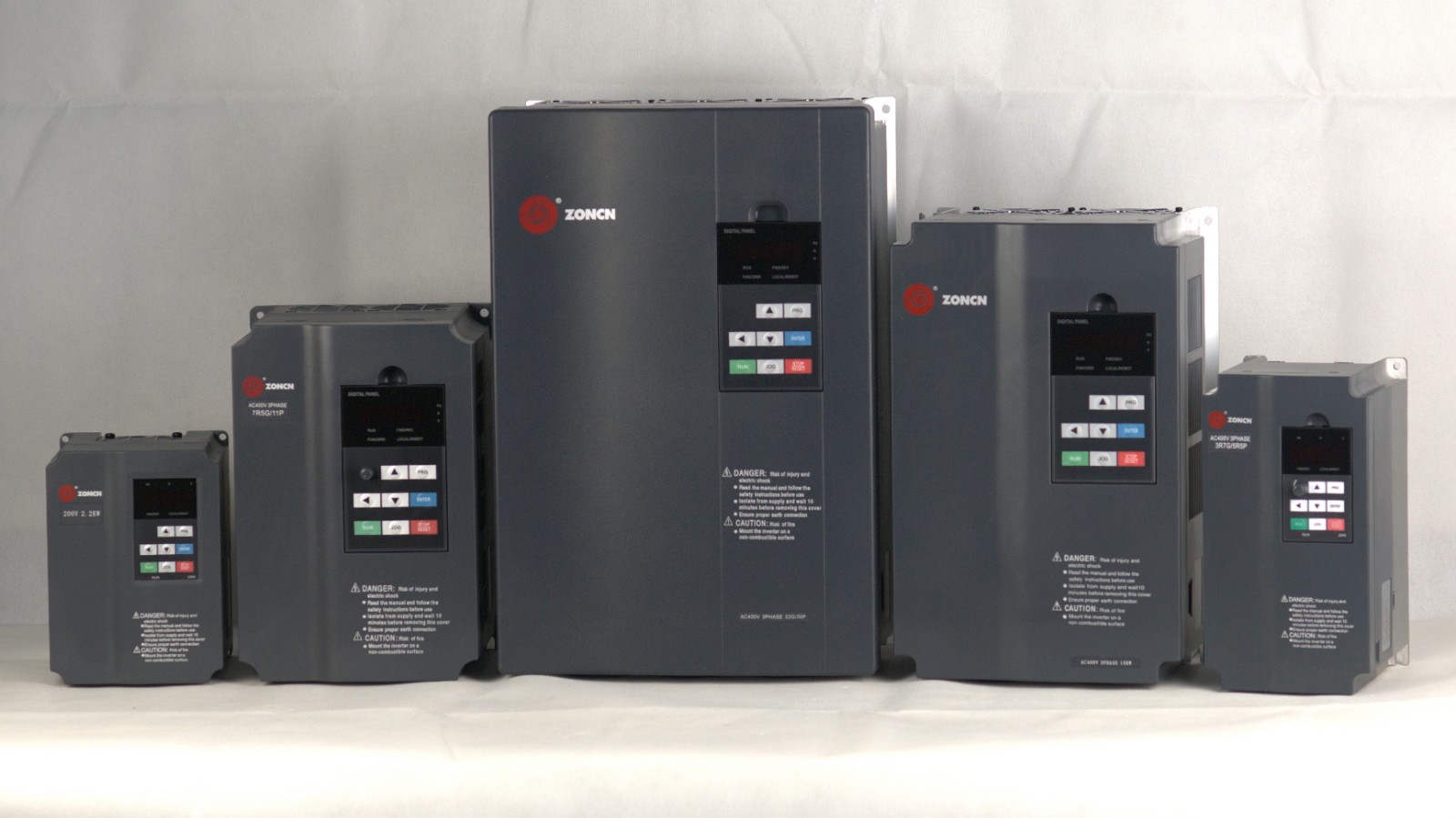

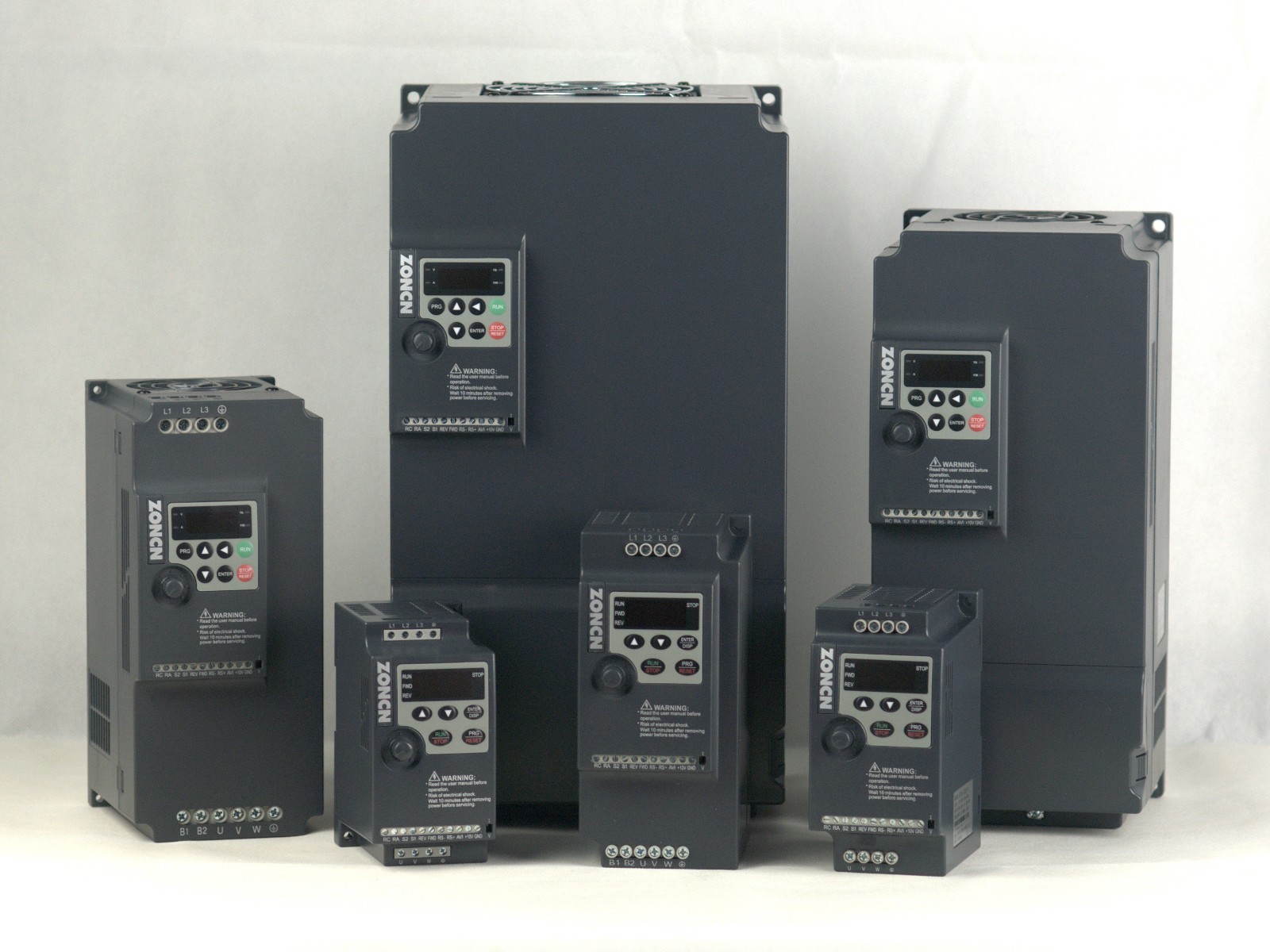

AC400V 3-Phase Variable Frequency Drive
These AC400V 3-phase frequency inverters are designed for motor speed control and energy efficiency. They provide precise control and protection features for industrial applications and feature digital panels for configuration and monitoring.
Technical Specifications
Product Overview
Industrial Variable Frequency Drive
This AC400V 3-Phase Variable Frequency Drive is engineered for precise motor speed control and enhanced energy efficiency in industrial applications. Designed to manage AC induction motors, it features a user-friendly digital interface for seamless programming and real-time performance monitoring. The unit supports soft starting capabilities and provides essential protection features to ensure reliable operation in demanding environments.
Technical Specifications
- Input Voltage
- 400V
- Phase
- 3
- Key Control Features
- Motor Speed ControlSoft StartingEnergy EfficiencyDigital Monitoring
Installation & Safety
Safety Considerations
- Proper grounding required
- Install on non-combustible surfaces
- Wait after power removal before servicing
- Adhere to manual safety instructions
Terminal Connections
L1/L2/L3 Power InputU/V/W Motor ConnectionRC/RA Relay TerminalsS1/S2/REV/FWD Control Inputs
