AC Variable Frequency Drive
This AC variable frequency drive is designed for the industry market. It provides excellent V/F control to satisfy light load driven application requirements.
Technical Specifications
Overview

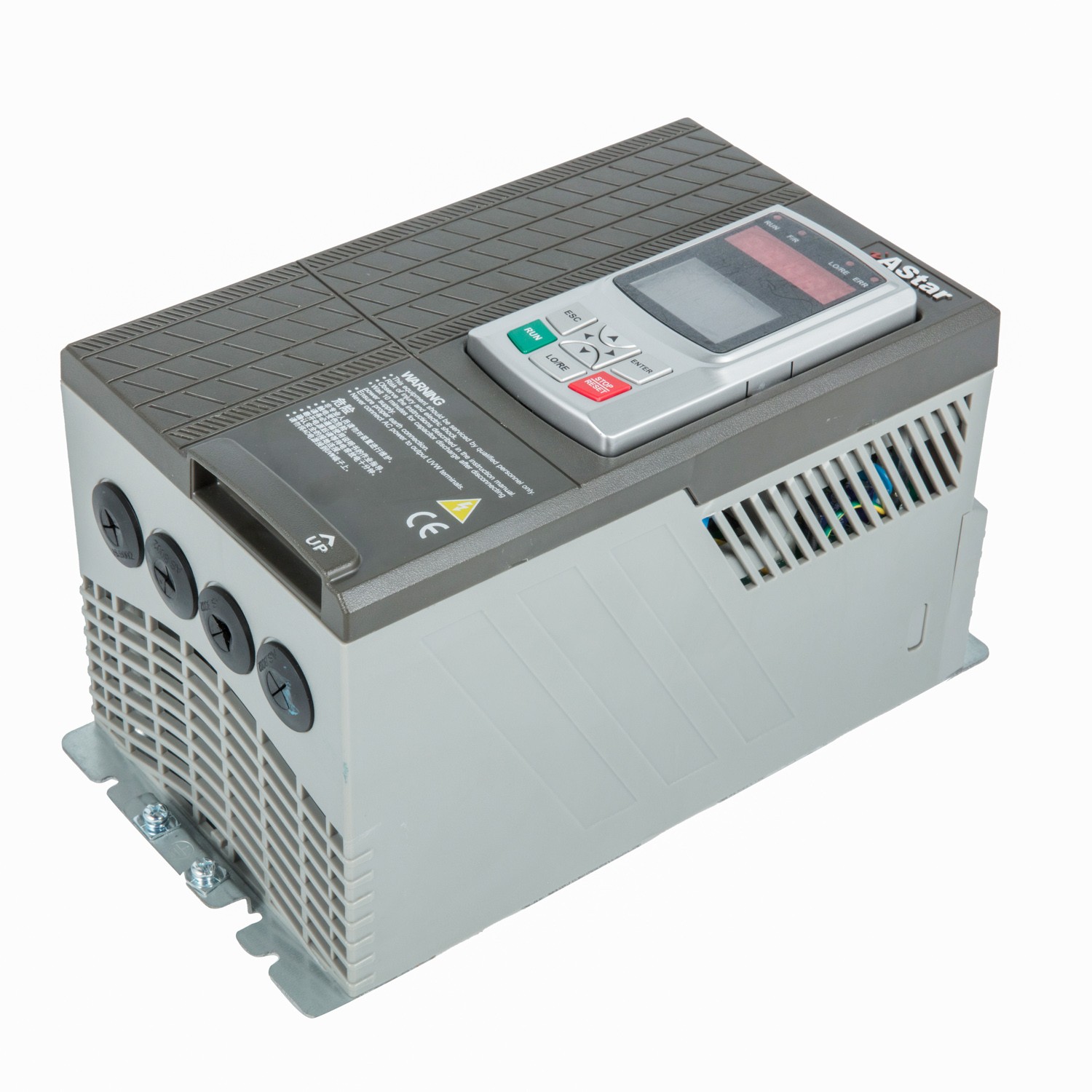

AS180 Series Universal VFD
The AS180 Series VFD is a universal drive designed for diverse industrial applications. Utilizing advanced control technology, this drive offers excellent V/F control performance, making it ideal for light load applications such as fans, pumps, and conveyors. It features robust grid adaptability, high efficiency, and intelligent protection functions to ensure reliable and stable motor operation.
Key Features
Advantages
- High-efficient and energy-saving operation
- Fast dynamic response without PG card
- Smooth tracking start without impacting rotating motors
- Automatic voltage adjustment and non-blackout function
- Stable operation with low frequency and high torque
- Rapid 0.1s full load acceleration
- Dynamic IGBT temperature protection
Power Input
- Input Voltage
- 380-460V
- Input Frequency
- 45 Hz
- Voltage Unbalance Tolerance
- <3%
Power Output
- Efficiency (Full Load)
- 0.94
- Overload Capacity
- 150% for 1 minute (at 40°C)
Control Characteristics
- Carrier Frequency
- 1.1-8KHz (auto-adjustable)
- Frequency Setting Resolution
- 0.01Hz (digital command)

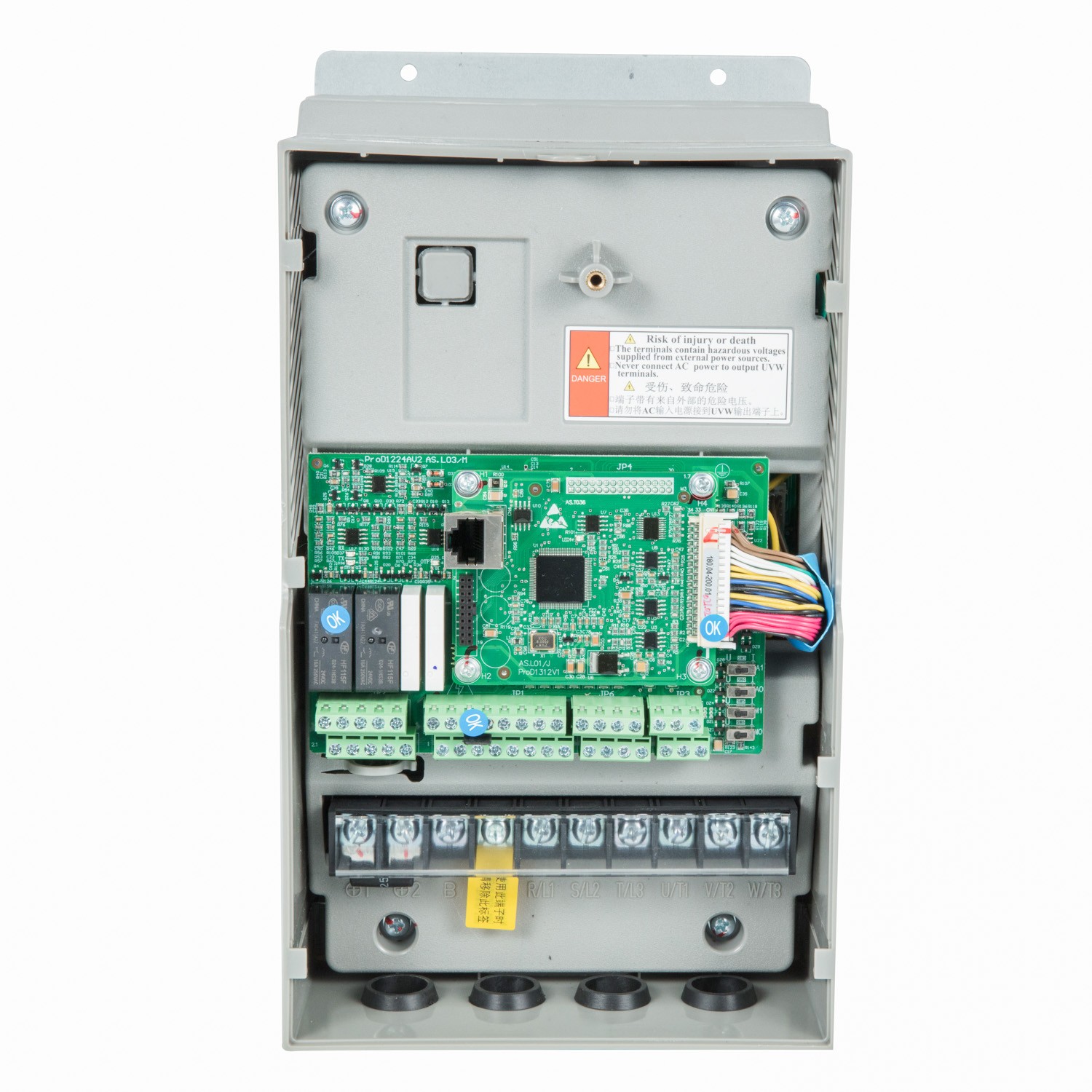

I/O Interfaces
Digital I/O Configuration
| Type | Channels | Description |
|---|---|---|
| Optical Isolation Input | 7 | 24V high/low level selectable |
| Open Collector Output | 2 | User-defined function |
| Relay Output | 2 | Normally open contacts |
Analog I/O
2 ch
Analog Input Channels
2 ch
Analog Output Channels
Compliance
- Certifications
- CE
