Technical Specifications
Product Overview
High Performance Vector Control

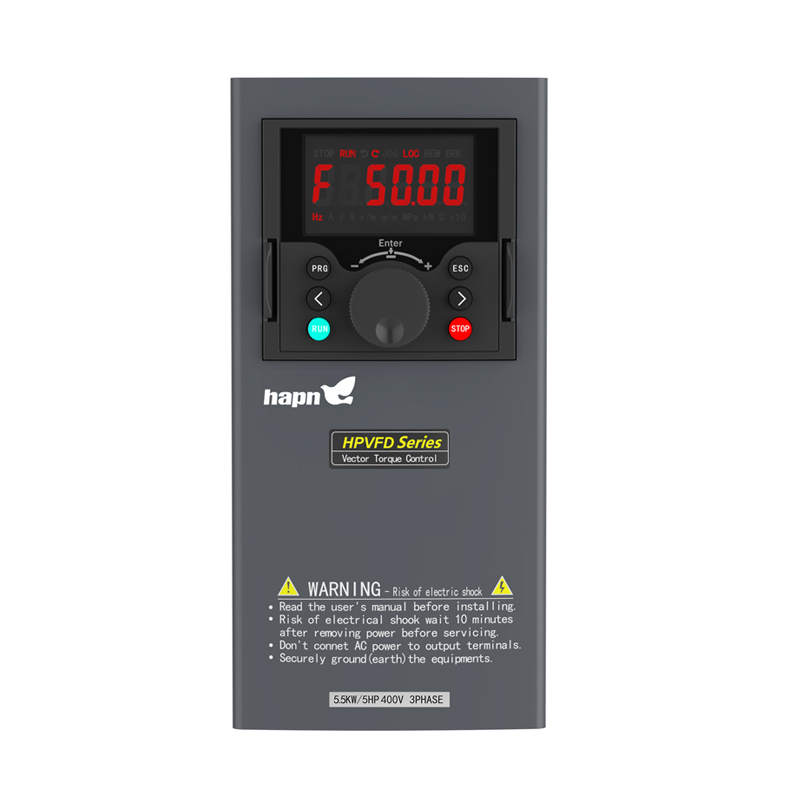

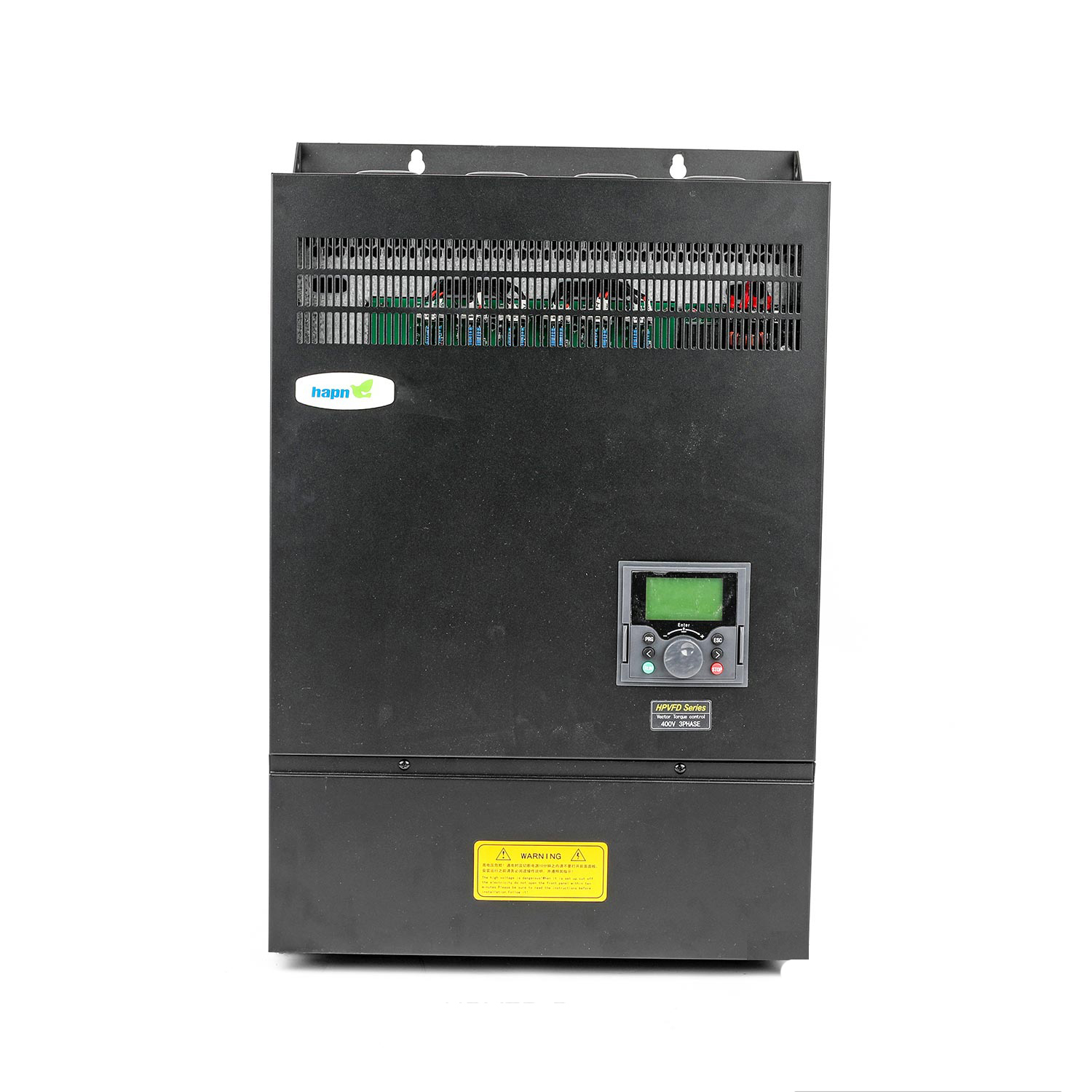

The HPVFD series is a high-quality frequency inverter designed for demanding industrial and commercial engineering applications. Utilizing a unique current vector control algorithm, it achieves exceptional torque control and stable operation even at low speeds. The compact, space-saving design is optimized for efficient enclosure installation, making it a flexible solution for various mechanical loads.
Technical Specifications
I/O Configuration
- 8-period digital input
- 2 analog inputs
- 2 relay outputs
- 2 open collector outputs
Key Performance Indicators
18.5 kW
Integrated Filter Range (Min)
560 kW
Integrated Filter Range (Max)
- Communication Interface
- RS485 serial communication with standard Modbus protocol
- Certifications
- CEEMC
Operational Safety
Safety and Protection
- Flame retardant casing
- Automatic current limiting function
- High reliable main loop connection
- 10-minute power-off discharge wait time
