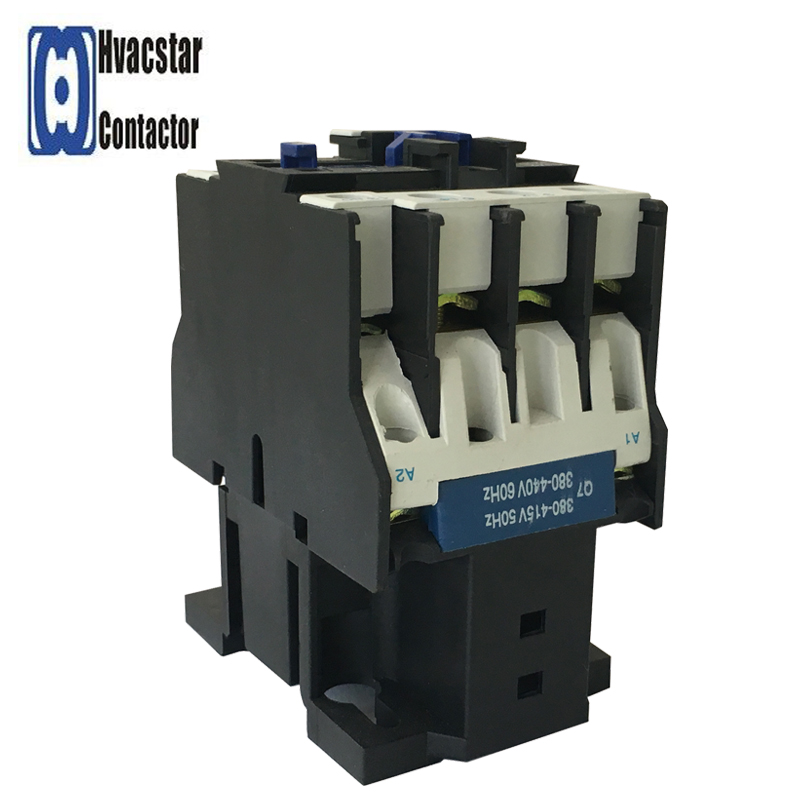

AC Electrical Contactor
This AC contactor is designed for circuits up to 660V AC at 50Hz or 60Hz. It is used for making, breaking, frequently starting, and controlling AC motors.
Technical Specifications
Product Overview
Professional AC Electrical Contactor
This definite purpose AC electrical contactor is engineered for reliable performance in demanding electrical control systems, particularly within HVAC&R applications. Built for durability and efficient operation, it features robust construction and clear terminal markings for straightforward installation. The unit is CUL certified, ensuring compliance with essential safety standards for professional electrical environments.
Technical Specifications
Control Voltage
380 V
Voltage Range (50Hz)
415 V
Max Voltage (50Hz)
440 V
Max Voltage (60Hz)

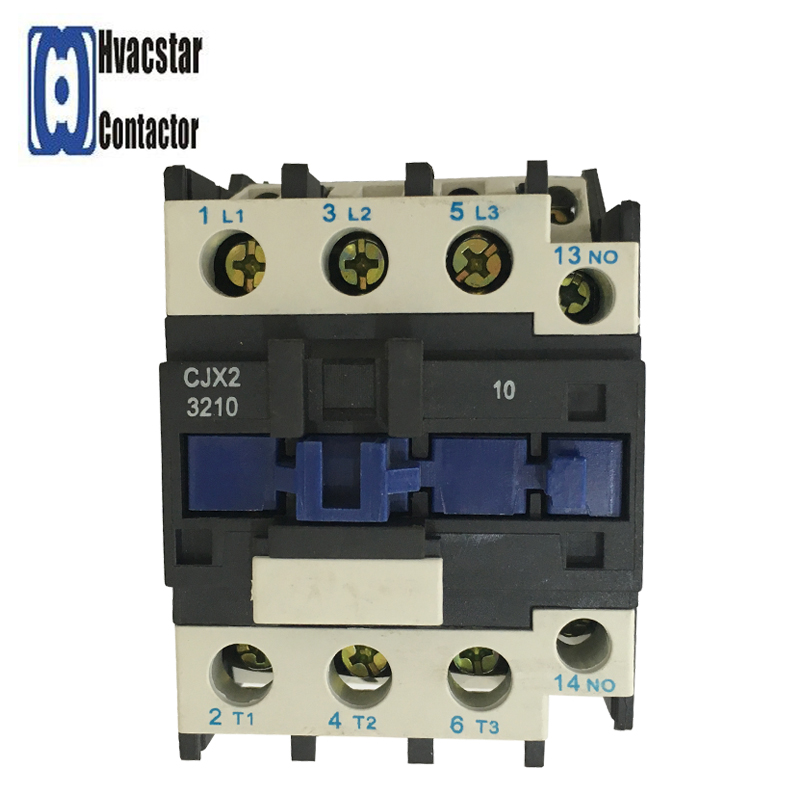

Terminal Layout
| Terminal Type | Label |
|---|---|
| Power Input | 1 L1, 3 L2, 5 L3 |
| Power Output | 2 T1, 4 T2, 6 T3 |
| Auxiliary | 13 NO, 14 NO |
| Control | A1, A2 |
- Certifications
- CUL Certified
- Model Series
- LC1-D32 / CJX2
Order Information
Payment Terms
- 30% deposit
- Balance against B/L copy
Quality Control
100% self-inspectionPre-packing testing
- Standard Delivery Time
- 15-20 days after deposit
- OEM/ODM Support
- Yes
