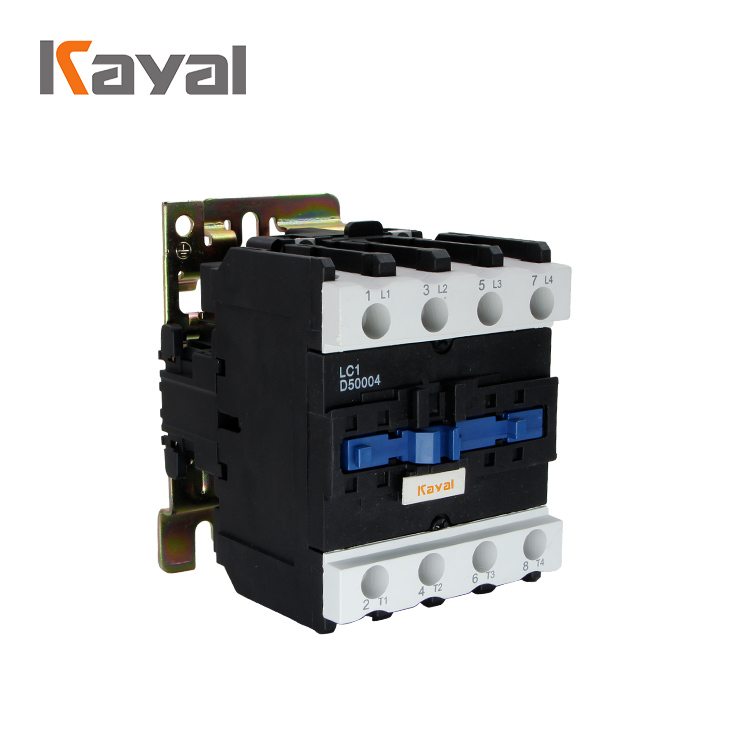

AC Electrical Contactor
This AC contactor is suitable for circuits up to 660V AC. It is used for making, breaking, frequently starting, and machine-interlocking devices.
Technical Specifications
Overview
Professional AC Contactor
This AC contactor is engineered for reliable switching in industrial electrical circuits, supporting rated voltages up to 660V at 50/60Hz. It is designed for demanding applications including motor control, power distribution, and machine interlocking systems. Compliant with international standards, it offers a robust solution for star-delta starters and electromagnetic starter assemblies.
- Compliance Standards
- IEC947-2VDE0660BS5442
Technical Specifications
Performance Ratings by Model
| Model | AC3 Current (A) | AC4 Current (A) | 380/400V Power (kW) |
|---|---|---|---|
| LC1-D09 | 9 | 3.5 | 4 |
| LC1-D12 | 12 | 5 | 5.5 |
| LC1-D18 | 18 | 7.7 | 7.5 |
| LC1-D25 | 25 | 8.5 | 11 |
- Max Rated Voltage
- 660 V
- Operating Frequency
- 50/60 Hz
Applications
Typical Installation Environments
- Industrial automation control rooms
- Distribution boxes and panels
- Elevator control rooms
- Hospital operating rooms
- Telecommunications and computer centers
- Fire safety control centers
Features
Design Advantages
Compact SizeOverload ProtectionDouble Wire DisconnectModular Design
