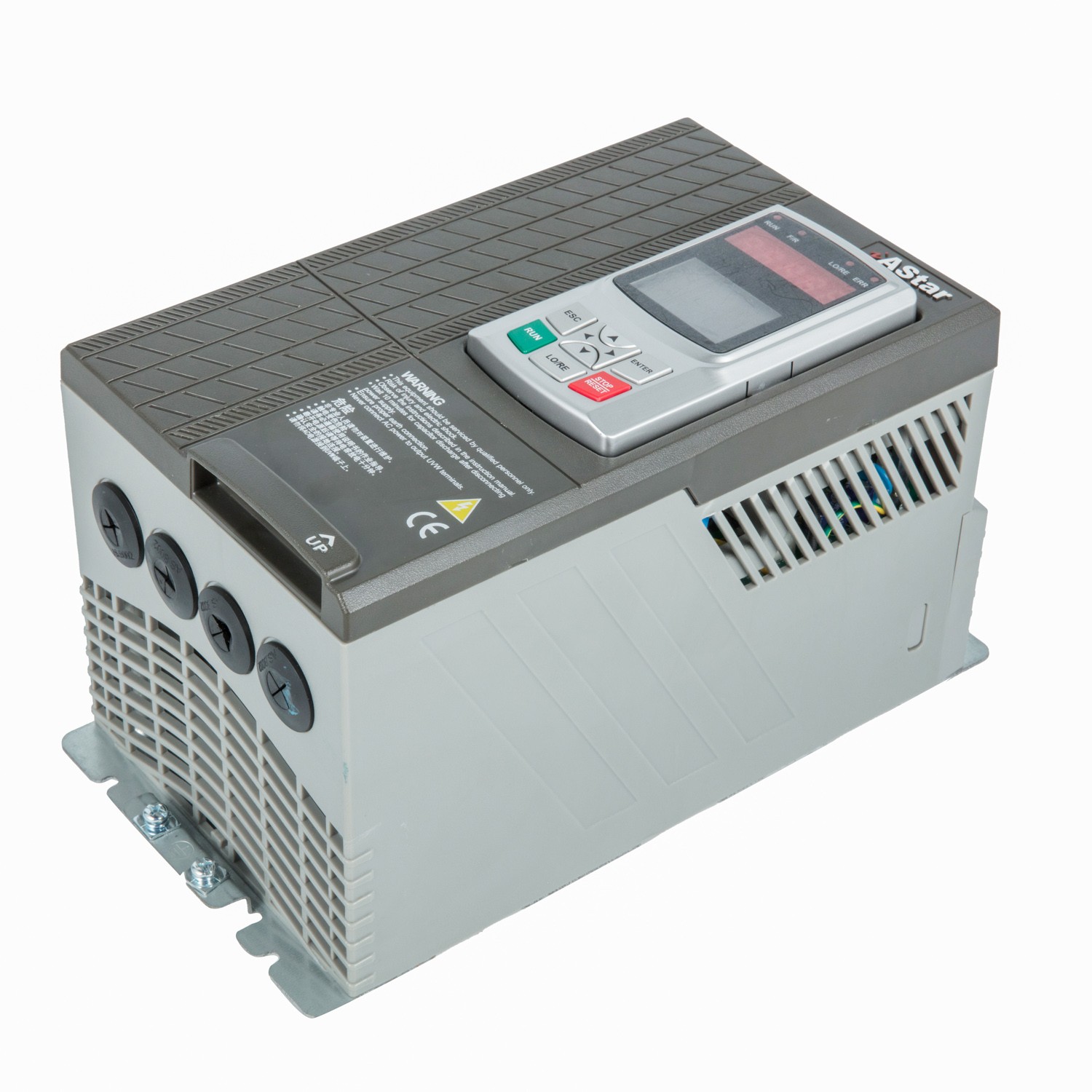

AC Drive for Industrial Automation
This AC drive is an adaptable solution engineered for diverse industrial applications. It delivers efficient V/F control, catering to various light load-driven application demands.
Technical Specifications
Overview
Universal Industrial AC Drive
This universal AC drive is engineered for industrial automation, utilizing advanced technology to deliver reliable performance. It features excellent V/F control capabilities, making it ideal for a variety of light load applications. Designed with grid adaptability and dynamic response in mind, this drive ensures smooth motor operation, energy efficiency, and robust protection against power fluctuations.
Key Features
- Advantages
- Energy SavingFast Dynamic ResponseSmooth Tracking StartGrid AdaptabilityLow Frequency/High TorqueRapid Acceleration
Power Input
Power Input Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 380-460V |
| Input Frequency | 45-65Hz |
| Voltage Unbalance | <3% |
Power Output
Power Output Specifications
| Parameter | Specification |
|---|---|
| Voltage Range | 0VAC to Input Voltage |
| Efficiency (Full Load) | ≥ 0.94 |
| Overload Grade | 150% for 1 min (at 40°C) |
Control Characteristics
Control Performance
0.01 %
Output Frequency Accuracy
0.1 %
Analog Input Accuracy
- Carrier Frequency
- 1.1-8KHz (automatically adjustable)

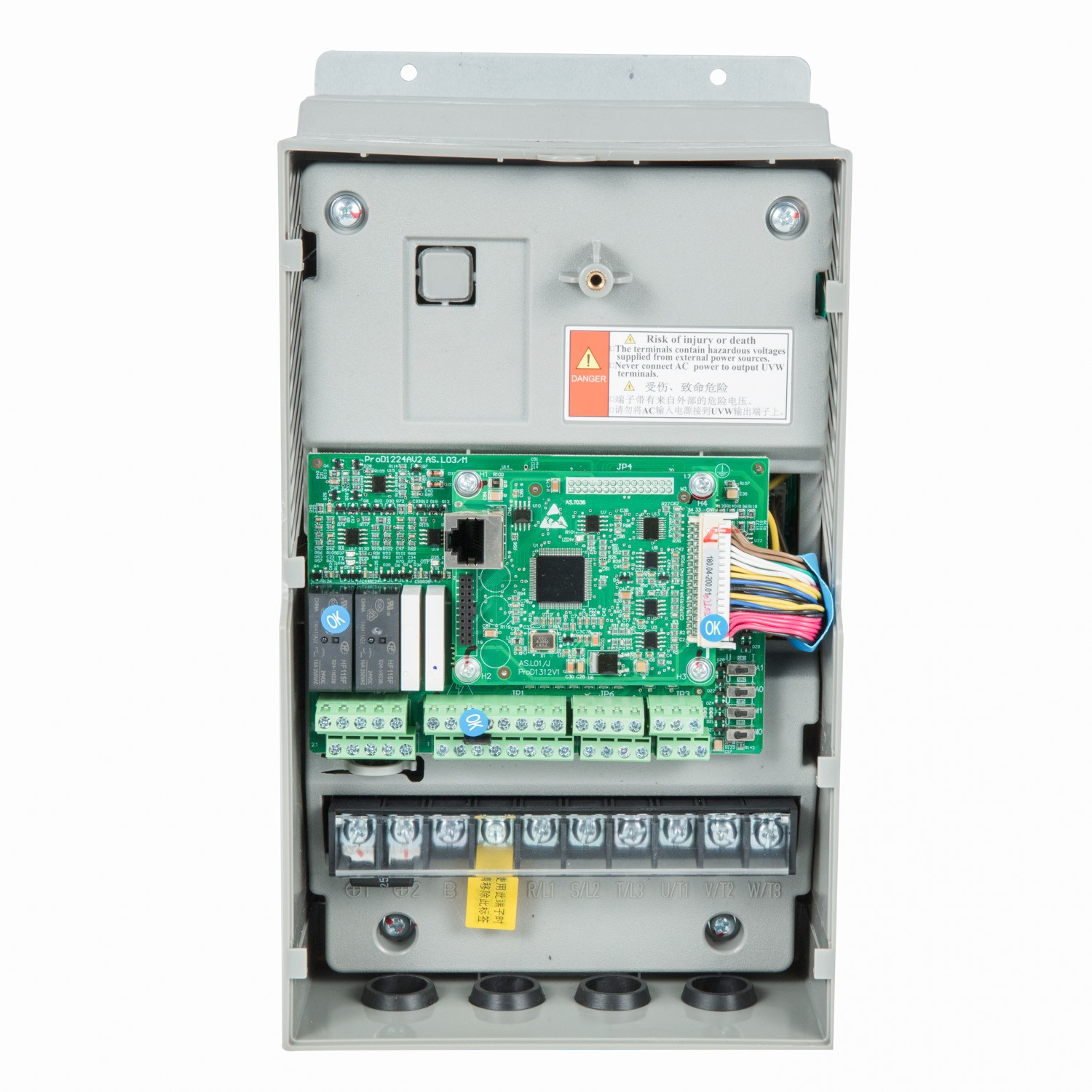

I/O Interfaces
I/O Configuration
- 7 Channels Digital Input (Optical coupling isolation)
- 2 Channels Open Collector Output
- 2 Channels Relay Output (Inductive/Resistive)
- 2 Channels Analog Voltage Input (-10V to +10V)
- 2 Channels Analog Voltage Output (-10V to +10V)
