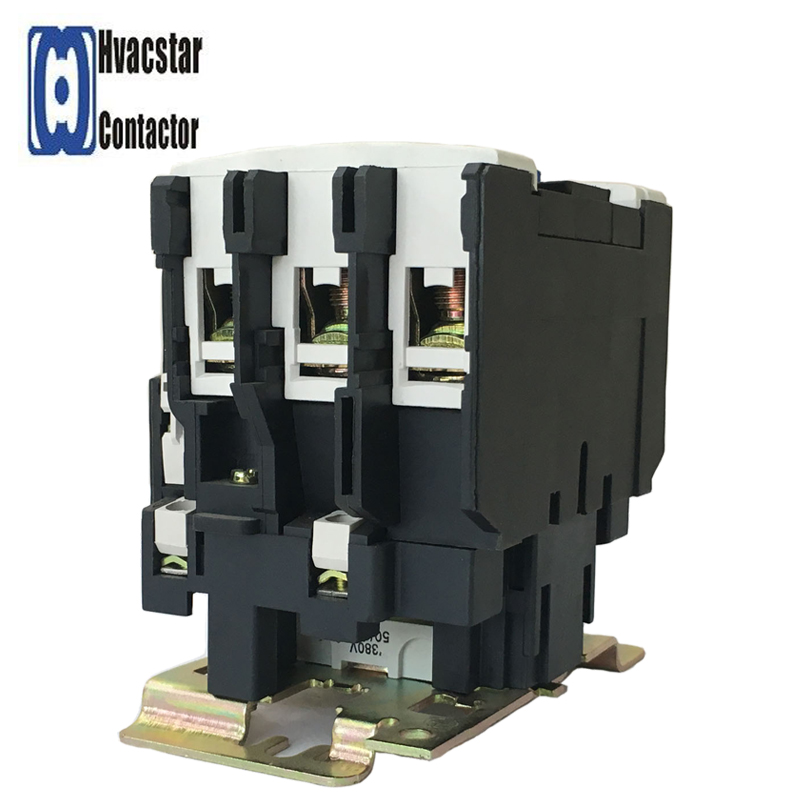

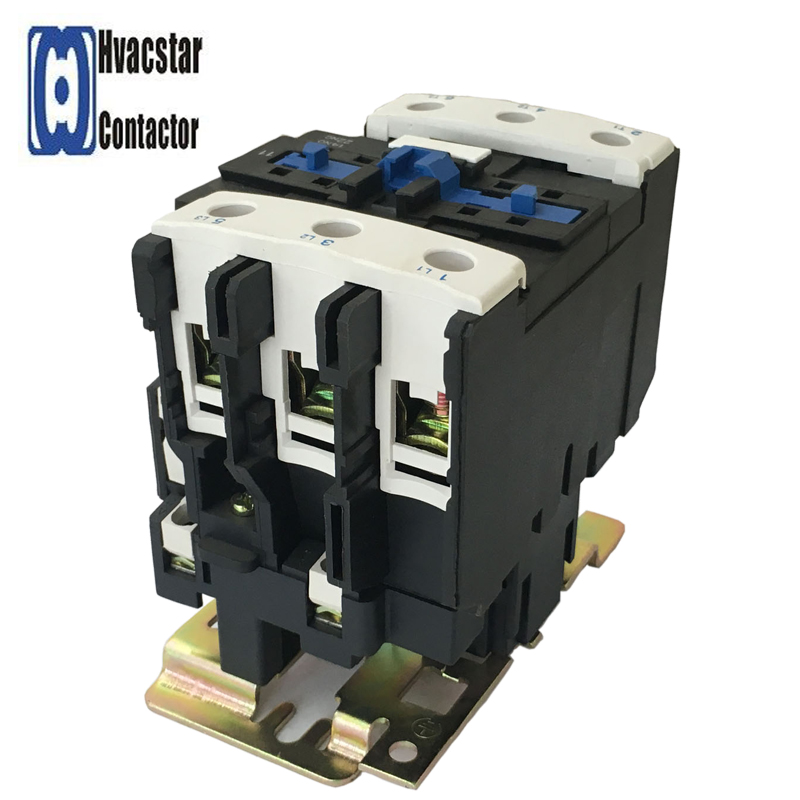

AC Contactor up to 95A 660V
This AC contactor is suitable for use in circuits up to the rated voltage 660V AC 50Hz or 60Hz. With a rated current up to 95A, it is designed for making, breaking, frequently starting, and machine interlocking.
Technical Specifications
Product Overview
High-Performance AC Contactor
The CJX2 series AC contactor is engineered for reliable long-distance circuit connection and disconnection, making it ideal for frequent starting and control of AC motors. Designed for versatility, this unit supports 3-phase systems and can be easily expanded with auxiliary contact blocks, air delay heads, or mechanical interlocking mechanisms. It conforms to international standards, ensuring consistent performance in demanding industrial environments.
Technical Specifications
- Rated Current
- 95 A
- Max Rated Voltage
- 690 V
- Operating Frequency
- 50/60 Hz
- Configuration
- 3 Pole3 Phase
Performance Metrics
Service Life
1,000,000 Cycles
Electrical Life
10,000,000 Cycles
Mechanical Life
Compliance & Quality
Certifications
CECULIEC60947GB14048.4
- Construction Material
- Thermoplastic
Compatibility
Coil Voltage Options
- 24
- 36
- 42
- 48
- 110
- 127
- 220
- 230
- 240
- 380
- 400
- 415
- 440
- 480
- 600
