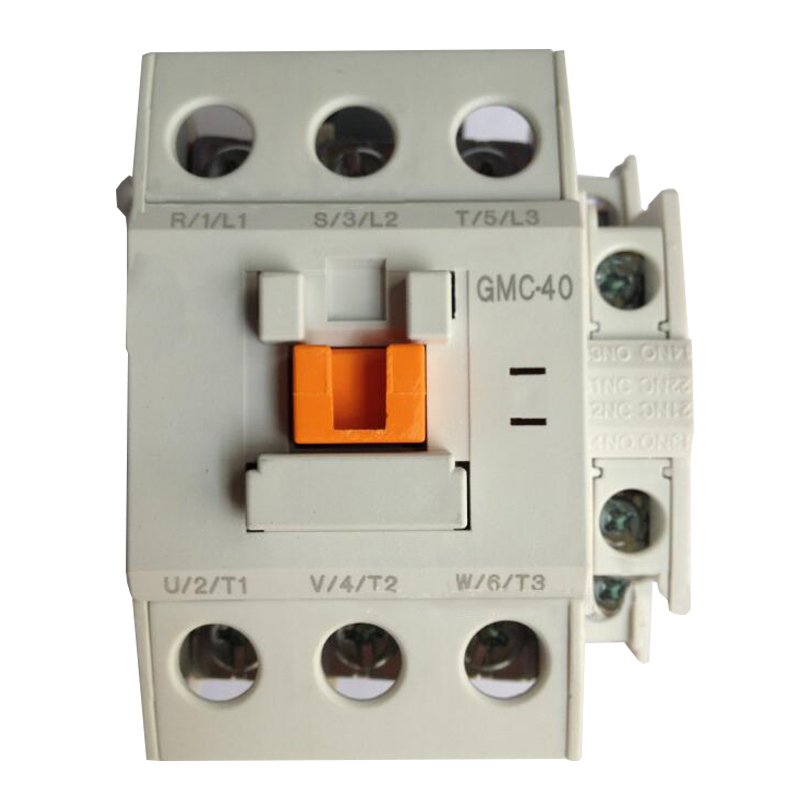

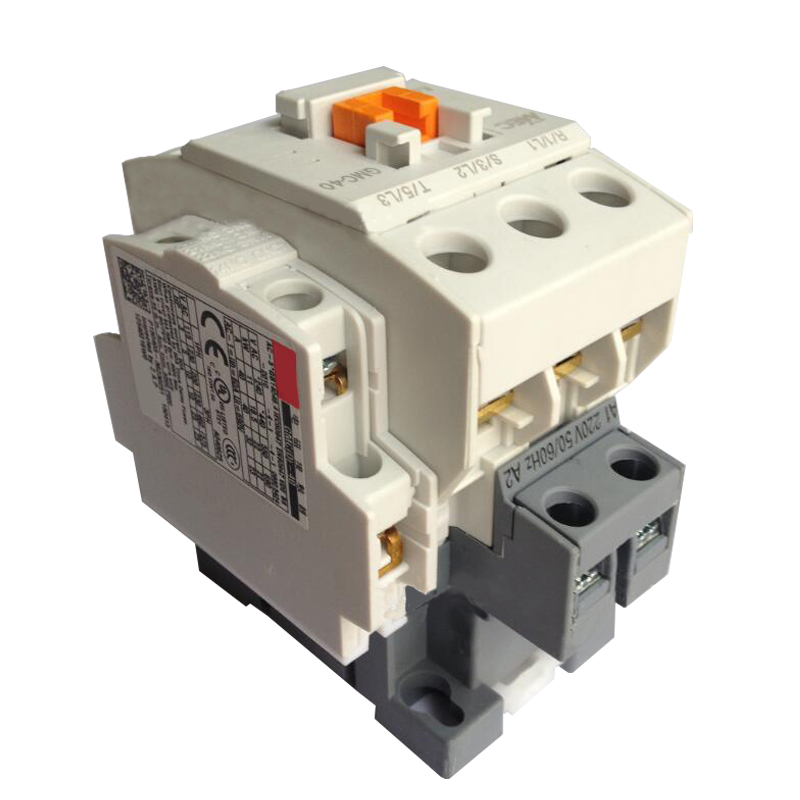

AC Contactor Magnetic Electronic for HVAC
This AC contactor is an electronic type with magnetic actuation and a definite purpose design. It provides reliable switching for compressors, fans, and other motor loads in HVAC systems.
Technical Specifications
Product Overview
High-Performance HVAC Contactor
This electronic-type AC magnetic contactor is engineered specifically for HVAC and refrigeration applications. Designed for reliability in demanding environments, it provides consistent switching for compressors, fans, and other motor-driven loads. Its robust construction and definite-purpose design ensure long-term operational efficiency in commercial and residential climate control systems.
Technical Specifications
- Model Number
- GMC-40
- Electricity Type
- AC
- Number of Poles
- 3
- Rated Current Range
- 9A - 110A
- Main Circuit Rating Voltage
- 220V / 380V
- Coil Voltage (50Hz)
- 24V42V48V100V110V220V240V380V400V415V440V500V550V
- Coil Voltage (60Hz)
- 24V48V110V120V208V220V240V277V380V440V480V600V

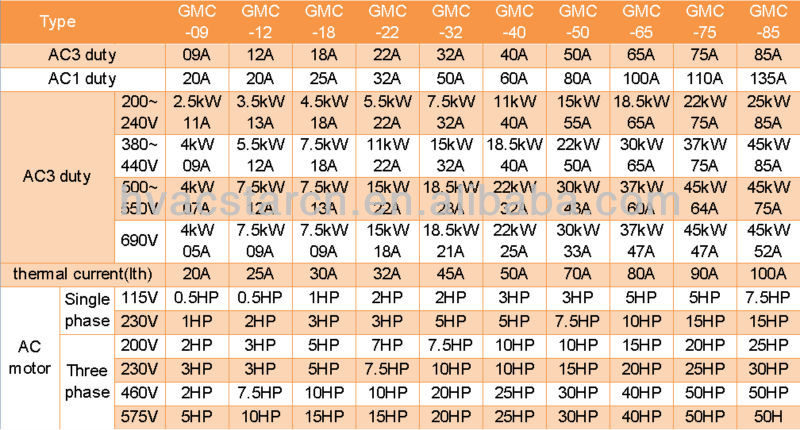

Performance Data
Operational Performance
| Model | Aux. Contact | 32A (220-240V) | 40A (220-240V) |
|---|---|---|---|
| GMC-32 | 1NO+1NC | 7.5KW | - |
| GMC-40 | 1NO+1NC | - | 11KW |
Certifications
Compliance
CUL CertifiedCE Certified
