Technical Specifications

Product Overview

LC1-E AC Contactor

The LC1-E AC Contactor is a robust electrical switching device engineered for reliable motor and circuit control. Designed for versatility, it supports motor control applications ranging from 6A to 630A (AC-3) and distribution circuit management from 16A to 1000A (AC-1). Its compact, durable construction ensures consistent performance in demanding industrial environments, making it an ideal choice for power distribution, automation, and control systems.

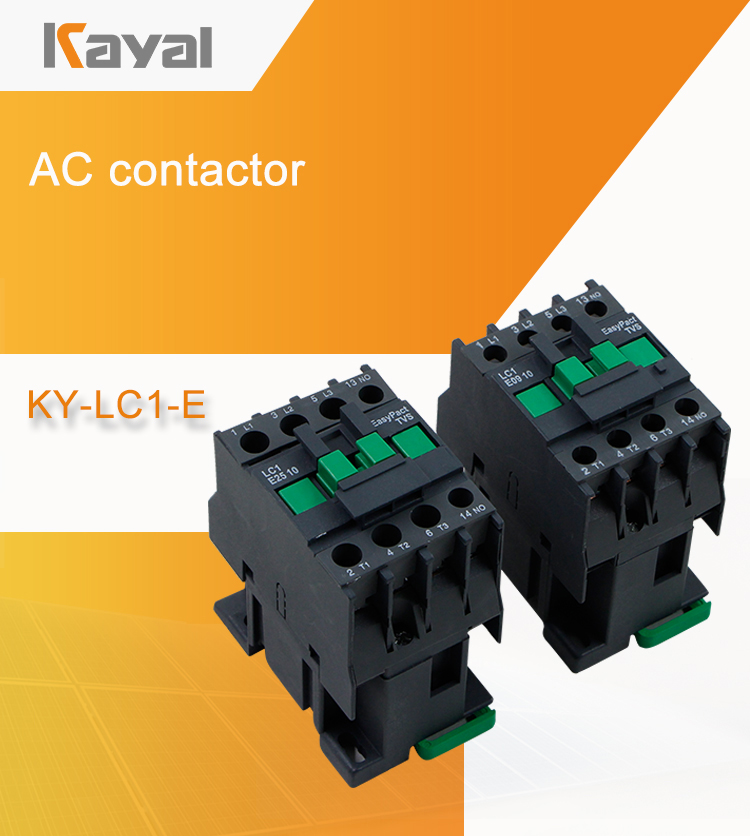

Close up view of the LC1-E AC Contactor showing terminal labels and design — The LC1-E AC Contactor features clearly labeled terminals for easy wiring and integration.

Technical Specifications

Motor Control Range (AC-3): 630 A
Distribution Circuit Control (AC-1): 1000 A
Max Operating Temp: 40 °C

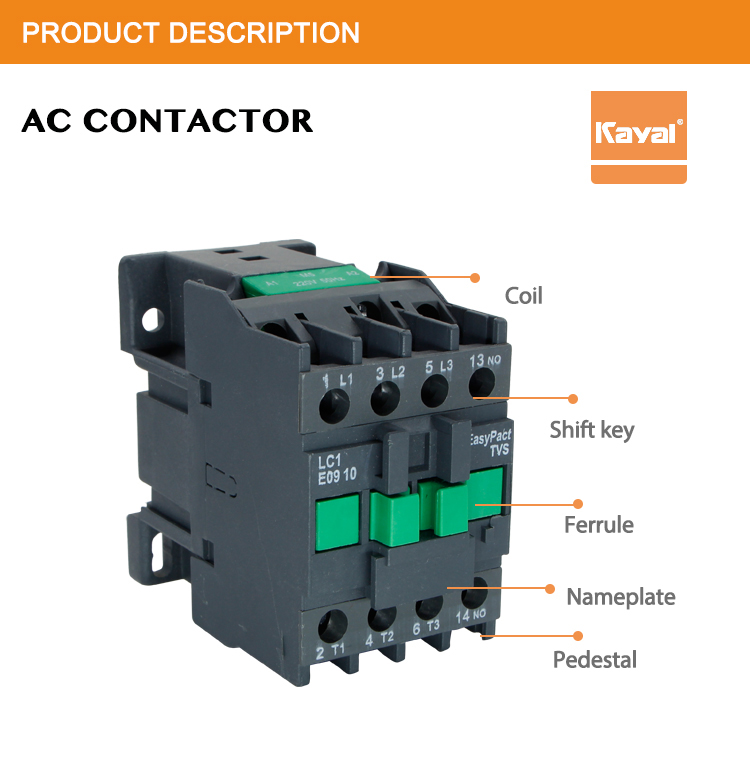

Diagram showing the various components of the AC contactor including coil and terminals — Detailed view of the contactor components including coil terminals, nameplate, and pedestal.

Features & Benefits

Key Advantages: Overload ProtectionDouble Wire DisconnectionCompact DesignHigh SegmentIndustrial Grade

Application Scope

Common Installation Sites

Distribution Boxes
Industrial Automation Rooms
Elevator Control Rooms
Telecommunications & Computer Centers
Hospital Operating Rooms
Fire Control Centers

Graphic showing the diverse industrial and commercial application environments — Engineered for versatility across industrial, medical, and automated control environments.

Performance Data

Standard Power Ratings (3-Phase Motor 50-60Hz)

Voltage	Power (kW)
220V	1.5
380V	2.2
415V	2.2
440V	3
500V	3
