AC Contactor for Home Automation
This AC contactor is designed for residential and light commercial applications. It is ideal for switching lighting, heating, and other electrical loads in home automation systems.
Technical Specifications
Overview

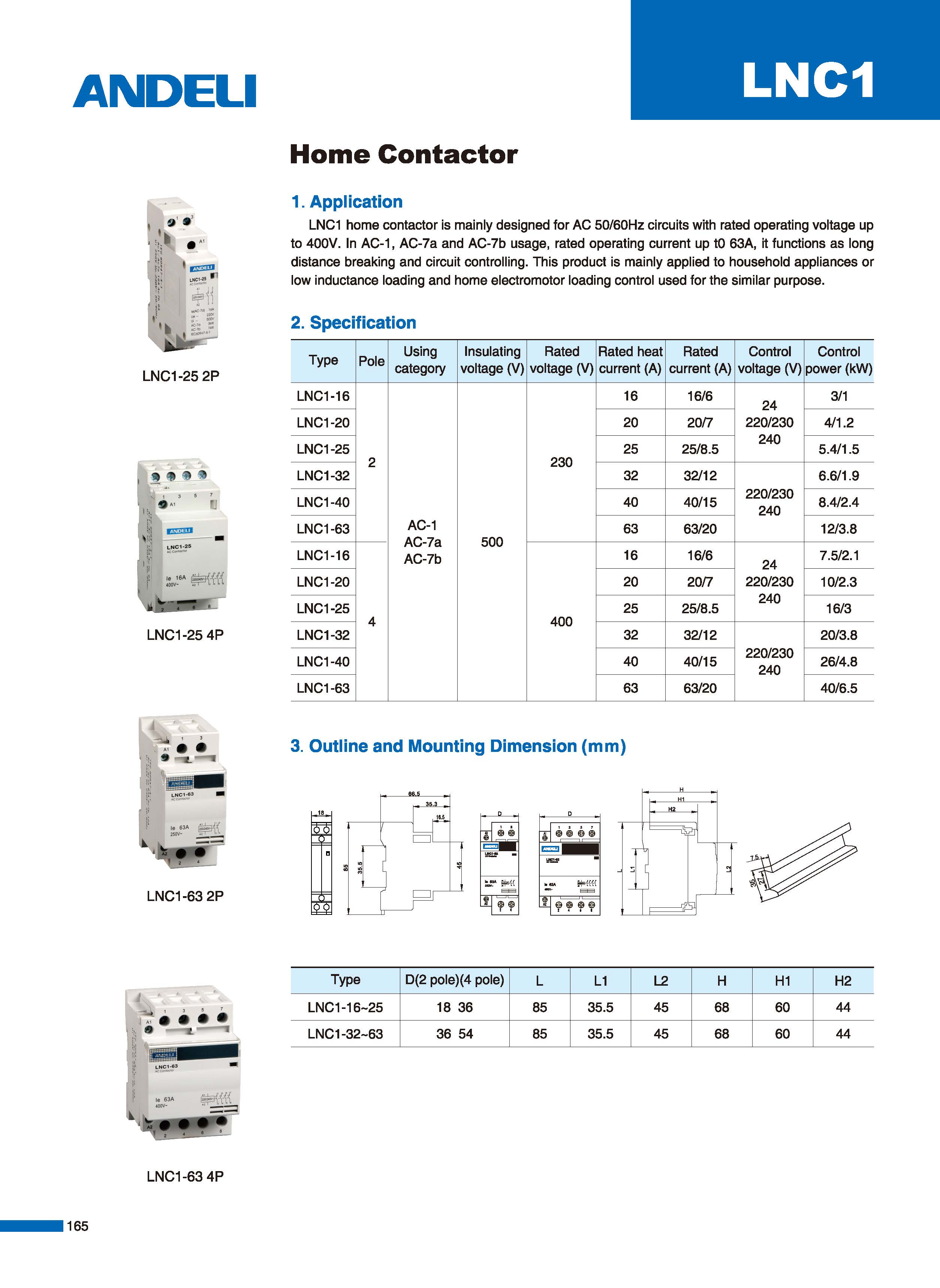

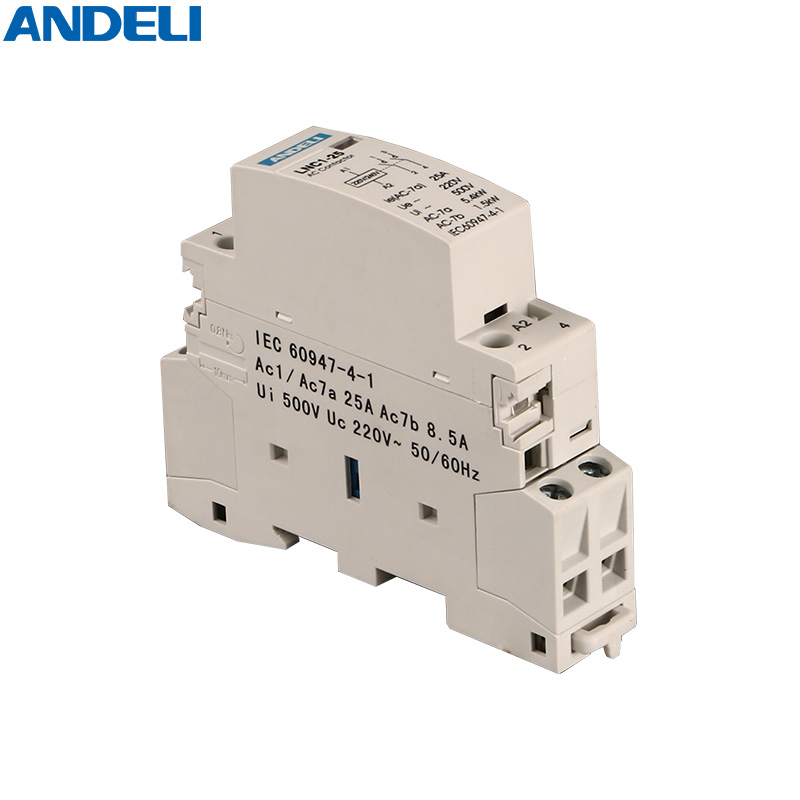

LNC-1 Home Contactor
The LNC-1 AC contactor is a reliable solution designed for home automation systems, residential, and light commercial applications. It is engineered for AC 50/60Hz circuits with operating voltages up to 400V, making it suitable for controlling household appliances, lighting, and heating loads. This compact device supports long-distance circuit breaking and control, ensuring efficient management of low inductance and electromotor loads.
Electrical Ratings
- Rated Insulation Voltage (Ui)
- 500 V
- Rated Control Voltage (Uc)
- 220/230/240V
- Rated Current (AC-7a)
- 25 A
- Rated Current (AC-7b)
- 8.5 A
- Rated Power (AC-7a)
- 5.4 kW
- Rated Power (AC-7b)
- 1.5 kW
Standards & Compliance
- Standards
- IEC 60947-4-1
Physical Dimensions
Mounting Dimensions
| Dimension | Value (mm) |
|---|---|
| Length (L) | 85 |
| Length (L1) | 35.5 |
| Length (L2) | 45 |
| Height (H) | 68 |
| Height (H1) | 60 |
| Height (H2) | 44 |
