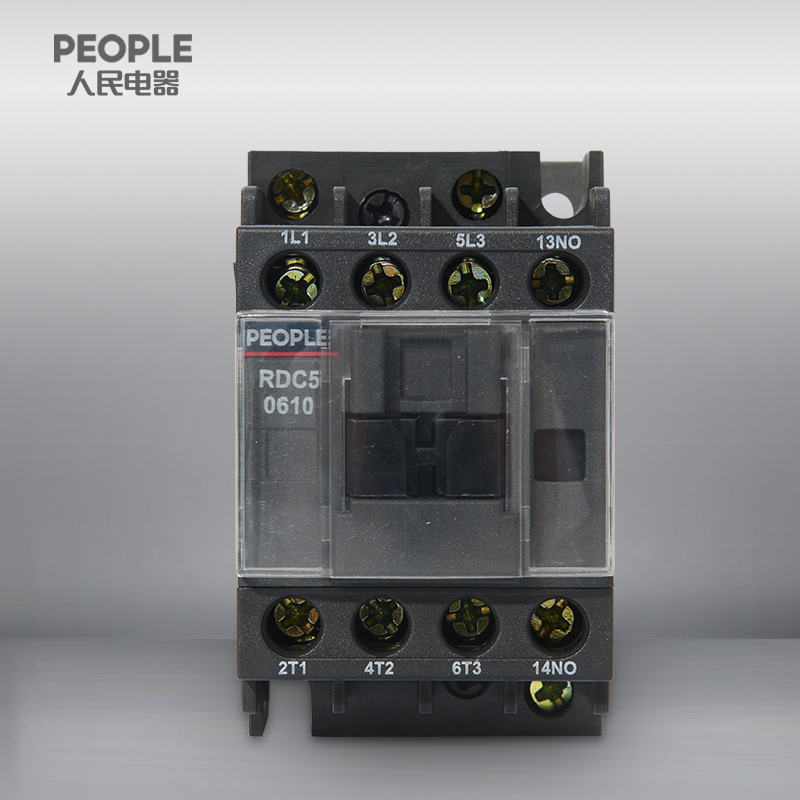

AC Contactor for Electrical Switching and Control
This AC contactor is designed for reliable switching and control of electrical circuits in various applications. It is suitable for controlling motors, heaters, lighting, and other electrical loads.
Technical Specifications
Product Overview
Professional Electrical Switching Solution
The RDC5 series AC contactor provides a robust solution for remote circuit connection and disconnection in electrical systems up to 690V. Designed for versatility, this unit can be easily integrated with auxiliary contact groups, timer-delay modules, and mechanical interlocks to support advanced configurations like star-delta starters. With its high operational frequency and compact design, it ensures reliable control for motors, heaters, and lighting loads in demanding industrial applications.
Technical Specifications
Key Performance Metrics
690 V
Rated Insulation Voltage
95 A
Max Rated Current
9 VA
Holding Power
Operating Characteristics

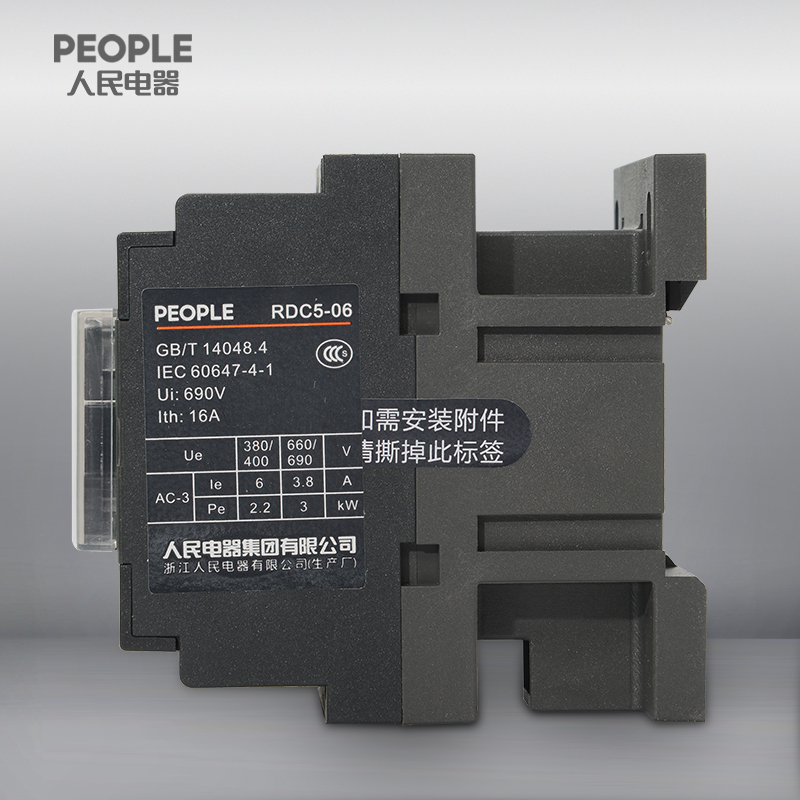

| Parameter | 380/400V | 660/690V |
|---|---|---|
| Rated Current (Ie) | 6A | 3.8A |
| Rated Power (Pe) | 2.2kW | 3kW |
Standards & Compliance
Energy Efficiency Label
China Energy Label Level 3
- Certifications & Standards
- IEC 60947-4-1GB 14048.4GB 21518-2008
