AC Contactor for Electrical Circuit Switching
This AC contactor is designed for switching electrical circuits and controlling electrical equipment. It features robust construction, a compact design and is suitable for various industrial applications.
Technical Specifications
Product Overview
Reliable Circuit Switching

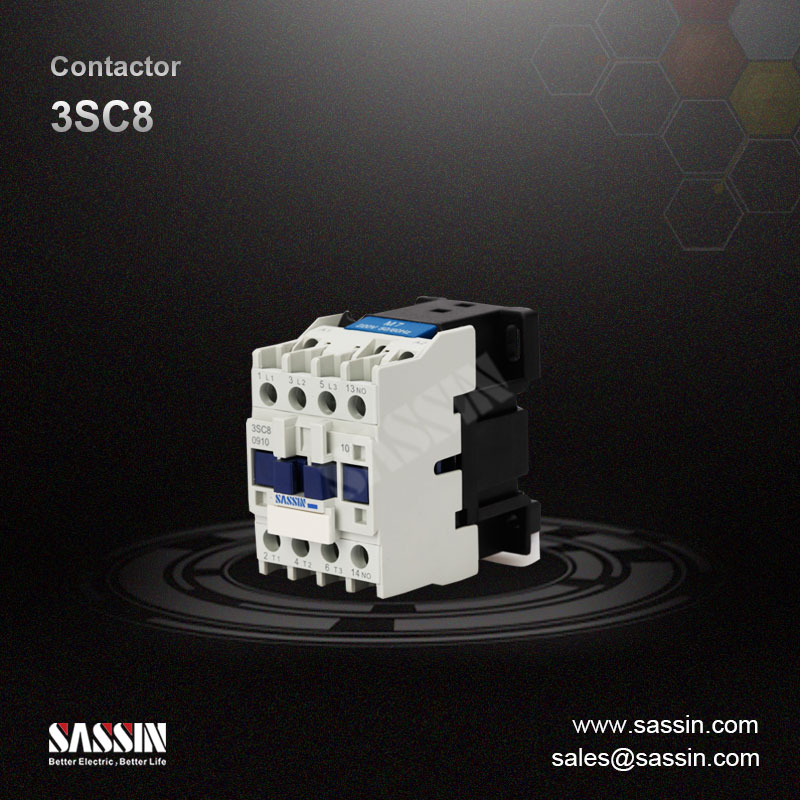

The 3SC8 series AC contactor is engineered for reliable electrical circuit switching and motor control in demanding industrial environments. Featuring a compact and robust design, it ensures efficient operation and long-term durability for various power applications. The unit includes clearly marked terminals to facilitate straightforward wiring and installation for professional setups.
Electrical Ratings
- Rated Voltage
- 220 V
- Frequency
- 50/60Hz
- Model Series
- 3SC8
Terminal Configuration

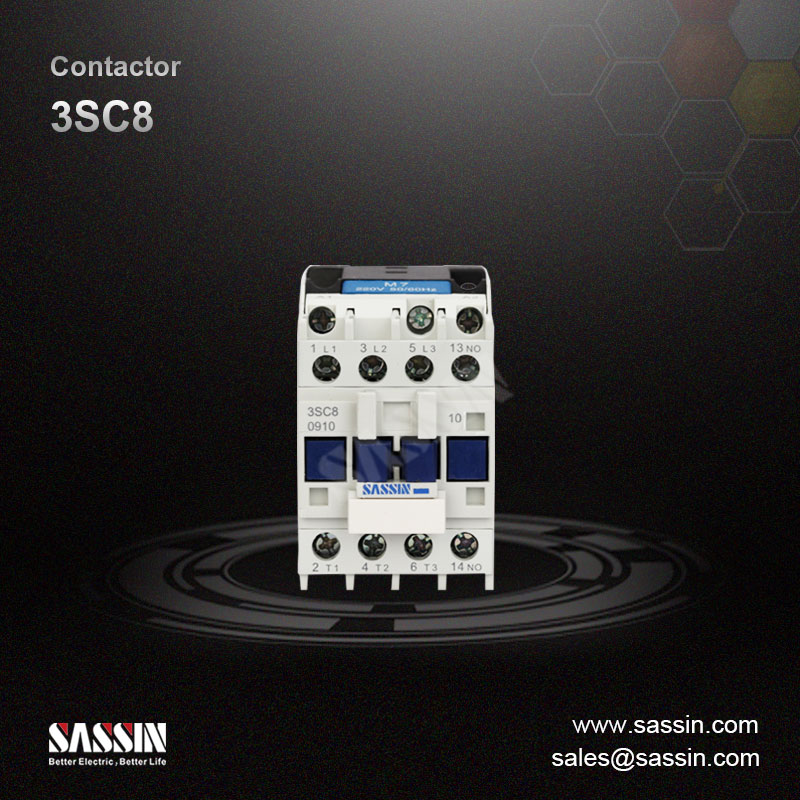

Terminal Layout
| Position | Terminals |
|---|---|
| Top Row | 1 L1, 3 L2, 5 L3, 13 NO |
| Bottom Row | 2 T1, 4 T2, 6 T3, 14 NO |
Product Features
- Key Attributes
- Compact DesignHigh Switching CapacityIndustrial GradeEasy Wiring
